Terminal electric fuse holder 5x20 screw TSKA Series | ADAJUSA | price

Terminal 5x20mm 4mm fuse holder series TSKA

€2.19 Tax included

1.78 tax excl.

TSKA4B

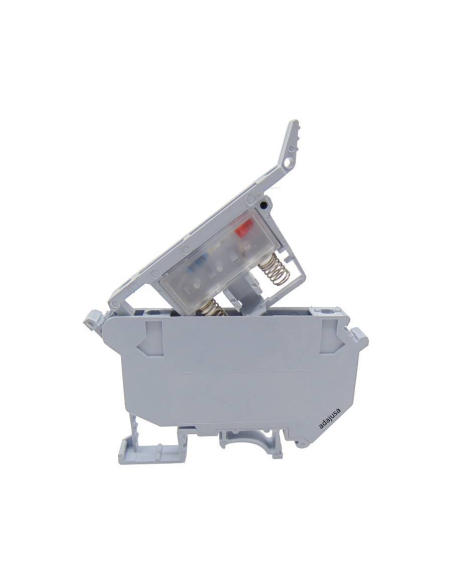

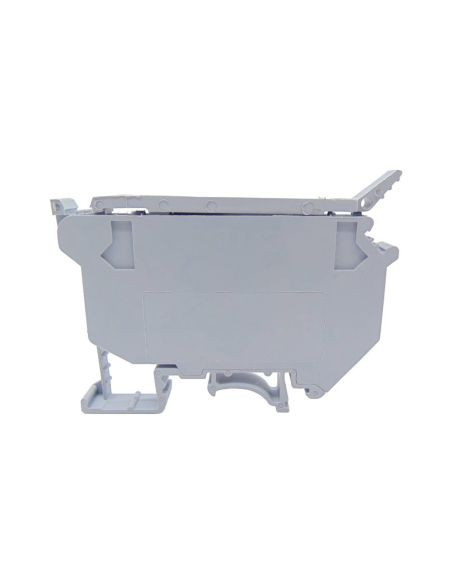

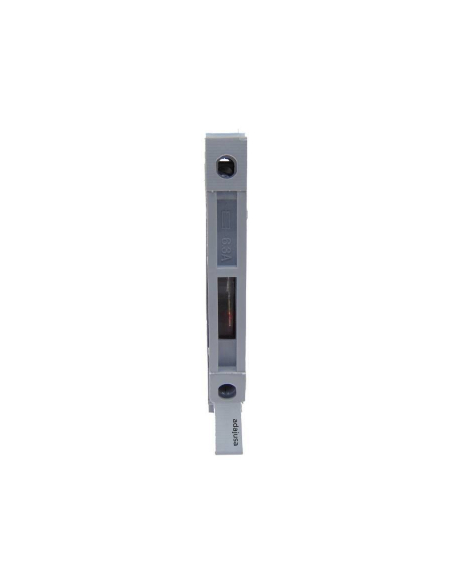

Terminal fuse holder in gray color for cable up to 4mm and fuses of size 5x20mm. DIN rail mounting.

Part number: TSKA4B

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product

Privacy

Shipments

Returns

Description
Frequently questions

Terminal fuse holder for electrical connection in grey color for cable up to 4mm, DIN rail mounting with lateral wiring. Terminal for fuses of size Ø5x20mm. Connection by screw and tightening by clamp. Suitable for general applications where high reliability and easy installation are required.

Compact size, highly heat-resistant polyamide plastic housing, self-extinguishing (according to UL94-V0).

Technical characteristics:

Manufacturer/Supplier: Tracon
Part number: TSKA4B
Clamp color: Gray
Material: Polyamide
Maximum voltage: 800V
Maximum current: 6.3A
Fault display element: LED
Supply voltage for fault indication: 200-250Vac
Cross-section of fine conductor with termination: 0.2 - 4mm²
Cross-section of solid conductor: 0.2 - 4mm²
Connection type: Screw
Material: Polyamide
Standards: EN 60947-7-1, EN 60947-7-2

W: 8mm, L: 73,5mm, H: 55mm, M: M3

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question

Hola, quería saber si estas bornas tienen marcado CE. Gracias

Answer

Buenos días,

Sí todos nuestros productos disponene de marcado CE y de certificado.

Quedamos a su disposición para cualquier otra consulta

Un saludo

ADAJUSA

Antonio Bravo on 05/17/2023 20:32:23
