Four-pole 5-outlet 80A distribution switchgear

€9.48 Tax included

7.71 tax excl.

BD80084

Four-pole (3 poles + neutral) electrical distribution board with 5 outputs and 3 inputs, suitable for currents up to 80A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.


Part number: BD80084

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Four-pole electrical connection distributor with 5 outputs and 3 inputs, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.

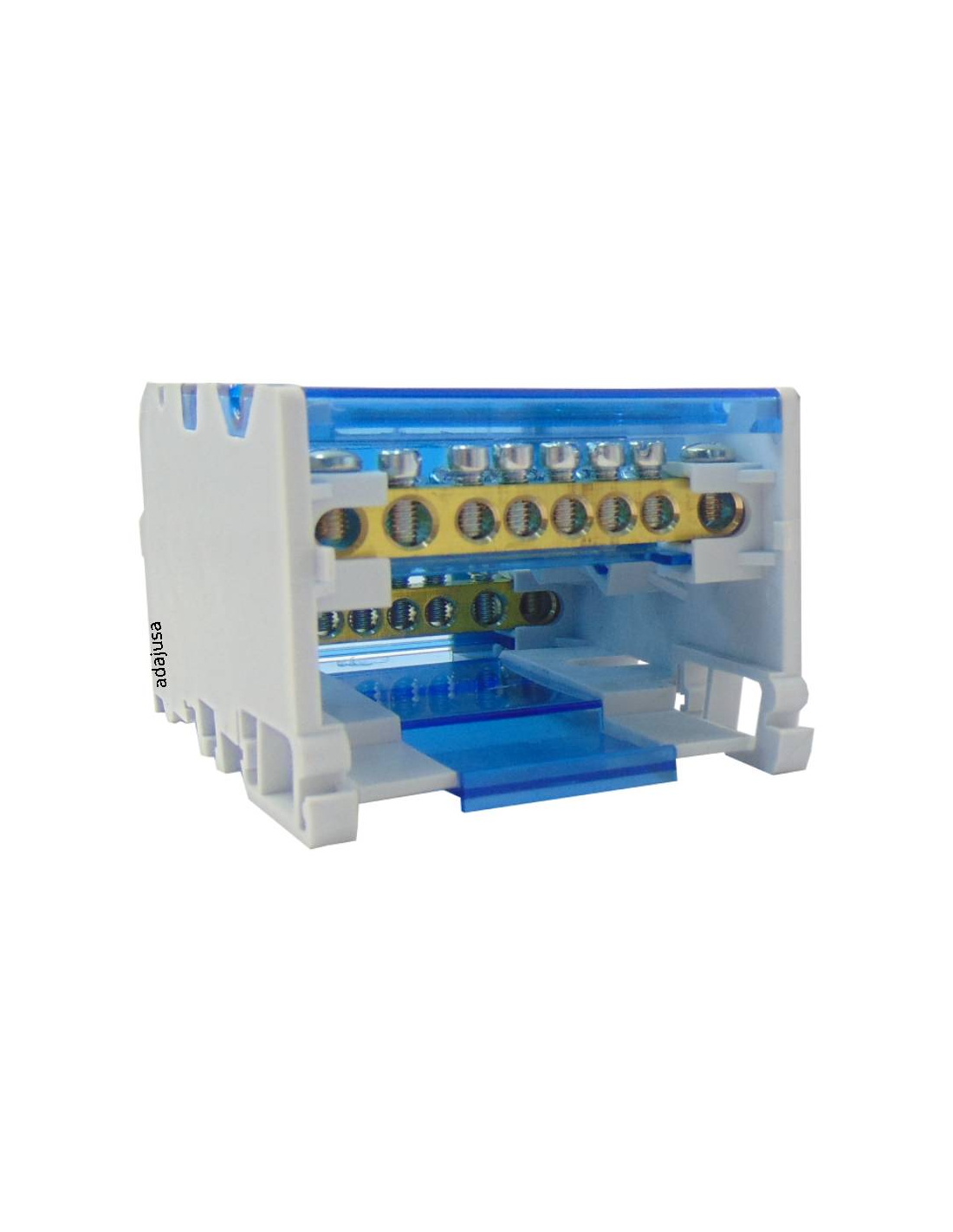

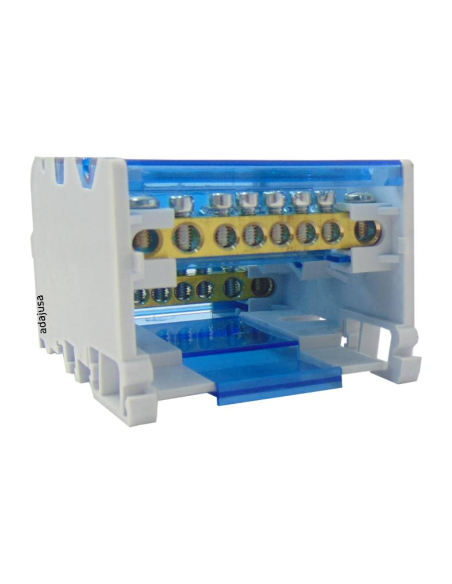

It has 4 distribution bars in brass with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is simply fixed to the distributor with a screwdriver.

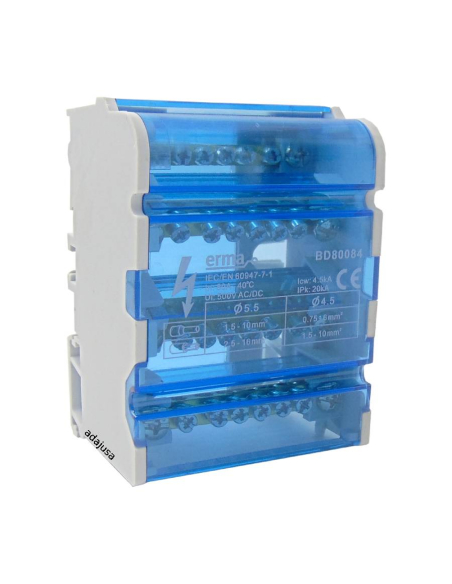

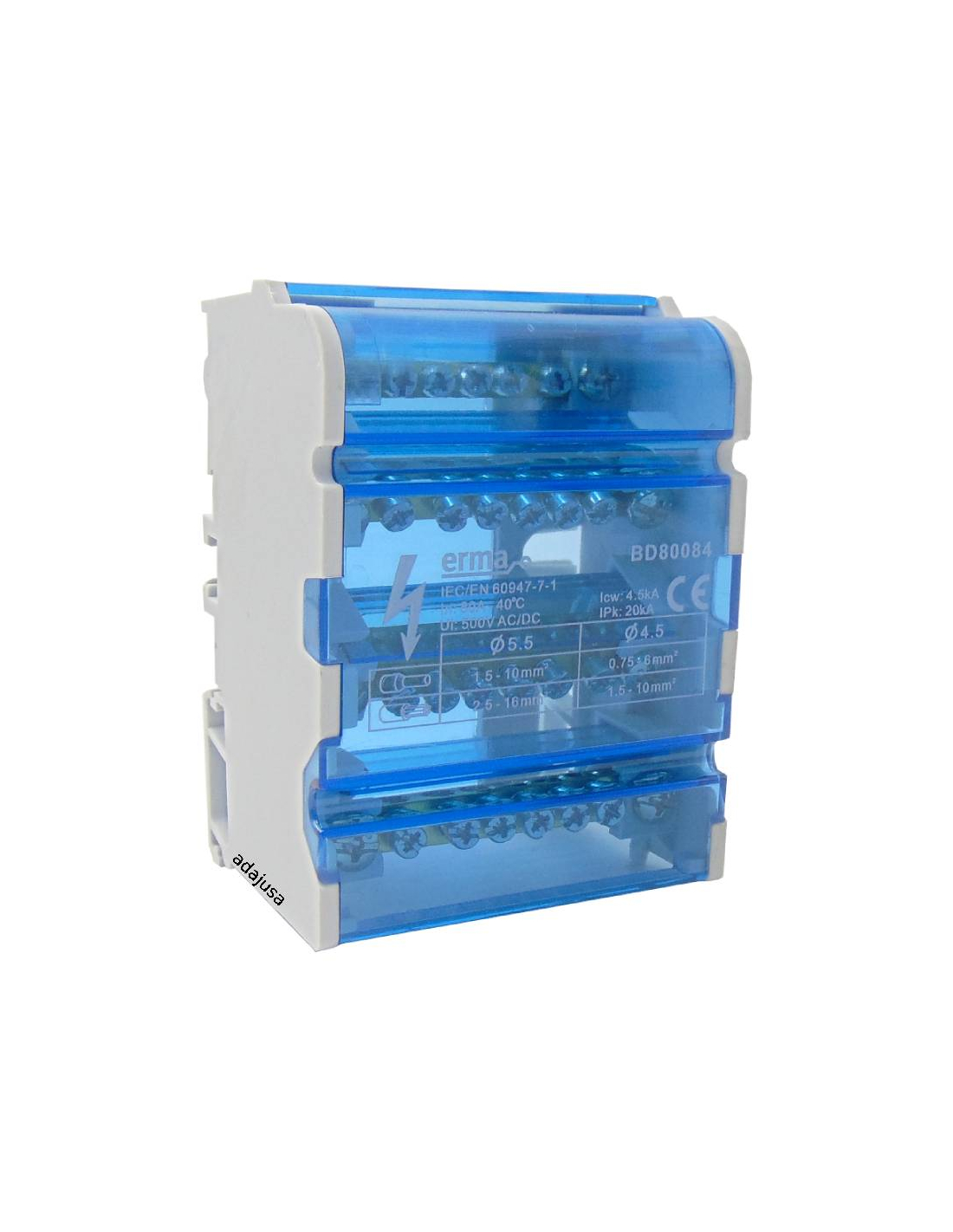

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar has 8 outlets:

  • 3 inlets Ø5.5mm for cables 1.5mm² to 6mm²
  • 5 outlets Ø4mm for cables 0.75mm² to 4mm²


Technical characteristics:

  • Manufacturer/Supplier: Gaestopas
  • Manufacturer's reference: BD80084
  • Type: Four-pole (3P+N)
  • Rated voltage: 500Vac/dc
  • Maximum current: 80A
  • Icw: 4,5kA
  • Ipk: 22kA
  • Number of holes per busbar: 8
  • Holes per pole (holes x Ø mm): 3x5,5 / 5x4
  • Dimensions: 90x64x50mm
  • Halogen free
  • UL94-V0 flammability rating
  • Certification: CE, ROHS
  • Standards: IEC 60947-7-1



Material for professional use, install in compliance with the regulations in force at the place of installation.
