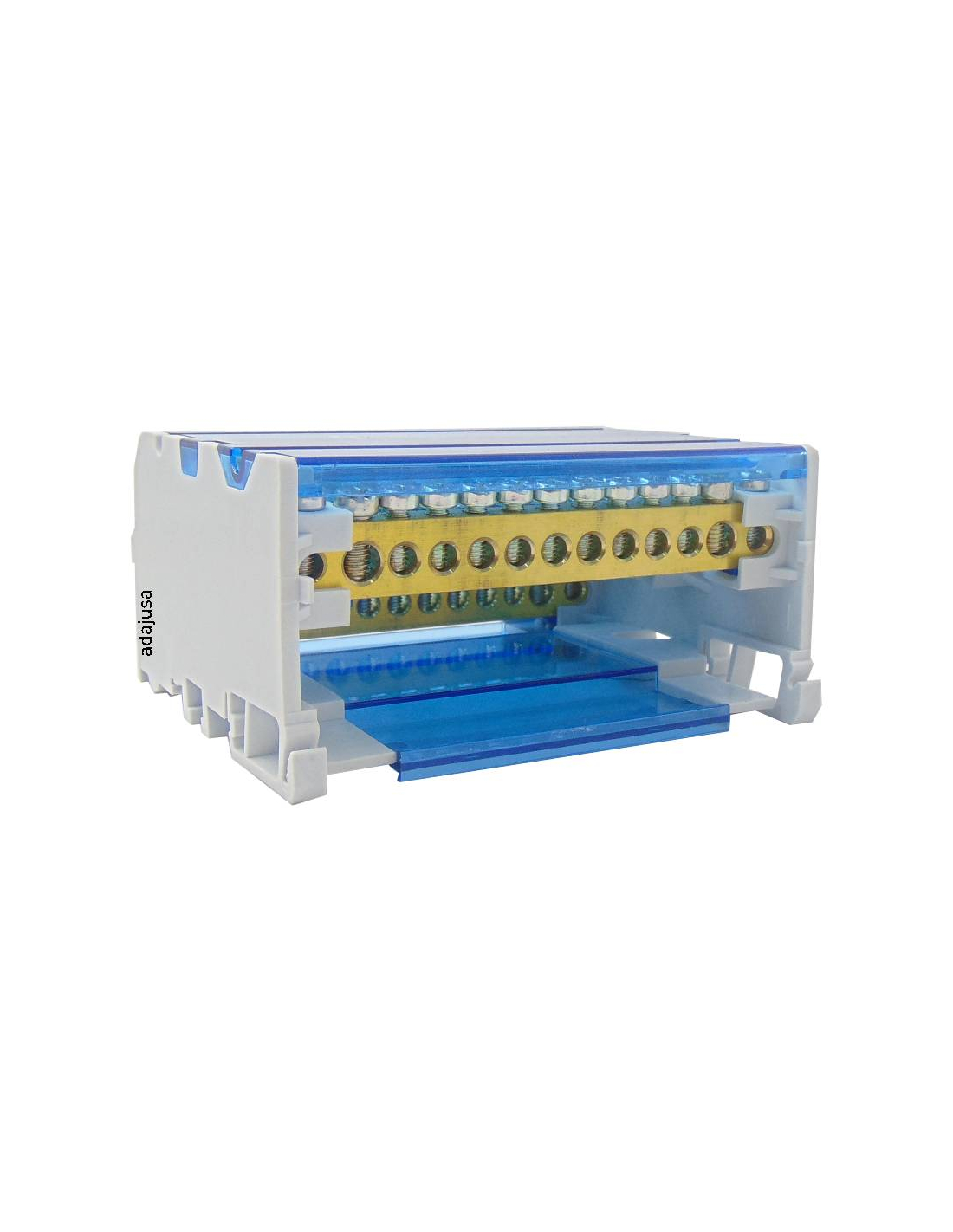

Four-pole 11-outlet 40A distribution switchgear

€20.10 Tax included

€16.34 tax excl.

BD40134

Four-pole (3 poles + neutral) electrical distribution board with 11 outputs and 2 inputs, suitable for currents up to 40A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.


Part number: BD40134

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Four-pole electrical connection splitter with 11 outputs and 2 inputs, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.

It has 4 brass distribution bars with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is fixed to the distributor simply with a screwdriver.

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar is equipped with:

  • 2 inlets Ø6mm for cables 4mm² to 10mm²
  • 11 outlets Ø4.3mm for cables 0.75mm² to 4mm²


Technical characteristics:

  • Manufacturer/Supplier: Gaestopas
  • Manufacturer's reference: BD40134
  • Type: Four-pole (3P+N)
  • Rated voltage: 500Vac/dc
  • Maximum current: 40A
  • Icw: 4,5kA
  • Ipk: 22kA
  • Number of holes per busbar: 13
  • Holes per pole (holes x Ø mm): 2x6 / 11x4,3
  • Dimensions: 90x100x50mm
  • Halogen free
  • UL94-V0 flammability rating
  • Certification: CE, ROHS
  • Standards: IEC 60947-7-1



Material for professional use, install in compliance with the regulations in force at the place of installation.
