Valve cutting step 3/8 female 3-way - Metal Work

Name: Valve cutting step 3/8 female 3-way - Metal Work
Brand: Metal Work
SKU: W0970050003
Price: 13.8621 EUR
Availability: InStock

€13.86 Tax included

€11.27 tax excl.

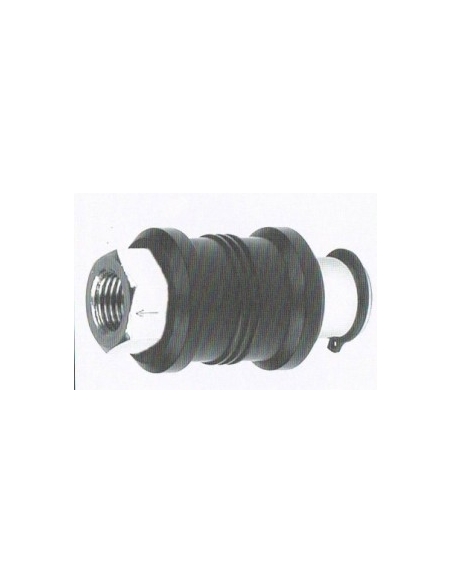

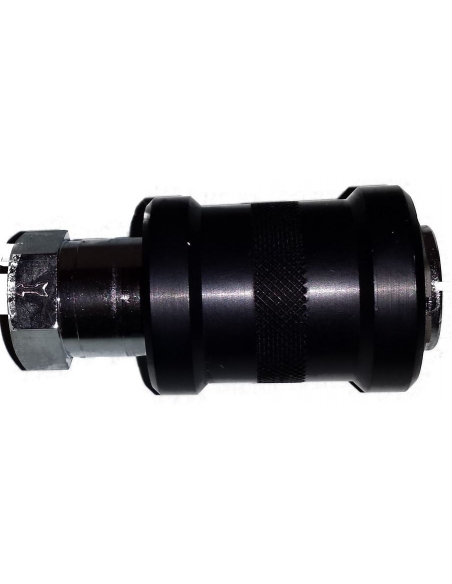

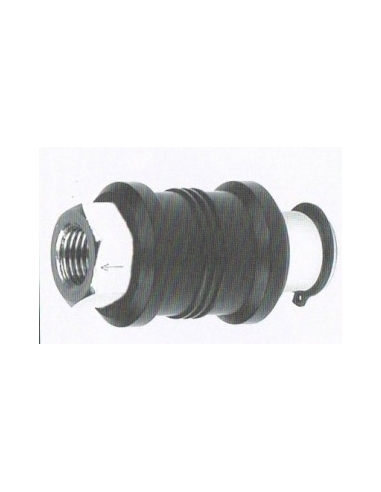

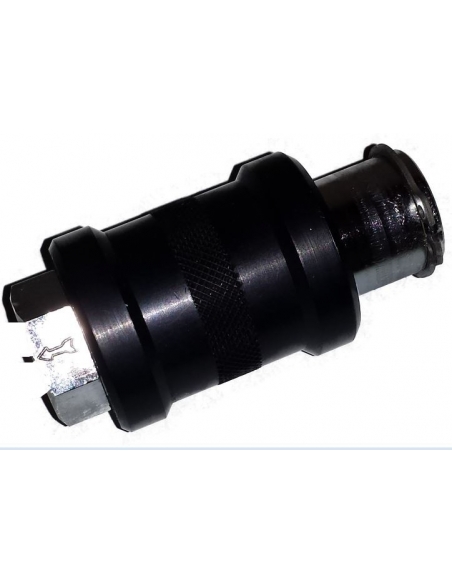

3/8 female step valve (cut),discharged (3-way).

Logotipo Metal Work
Reference: W0970050003
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

3/8 female step (cut) valve, with discharge (3-way), frequently used as a circuit disconnector valve.

By pushing back the ring, the air supply is interrupted and the circuit is discharged, when the ring advances air supply to the circuit is established.

Manufacturer: Metal Work
Manufacturer reference: W0970050003 series VCS-3/8.
Operating pressure: 0 ÷ 10 bar (0 ÷ 1 MPa)
Operating temperature °C: –10 ÷ 80
Fluid: Filtered air with or without lubrication
Flow rate at 6.3 bar (0.63 Mpa ÷ 91 psi) ∆P 0.5 bar Nl/min: 430
Flow rate at 6.3 bar (0.63 Mpa ÷ 91psi) ∆P 1bar Nl/min: 630
Conductance C Nl/min · bar: 170
Critical ratio b bar/ba: 0.2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Auxiliary valves

Download (844.62KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Cutting step valve 1/4 female 3-way - Metal Work

Metal Work

W0970050002

€11.07 (€9.00 tax excl.)

Valve of passage (cut) of 1/4 female, with discharge (3 ways).Reference: W0970050002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/8 female 3-way cutting step valve - Metal Work - ADAJUSA

1/8 female 3-way cutting step valve - Metal Work - ADAJUSA 2

Cutting and unloading valves

Valve cutting step 1/8 female 3-way - Metal Work

Metal Work

W0970050001

€9.21 (€7.49 tax excl.)

1/8 female step valve (cut),discharged (3-way). Reference: W0970050001Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

1/2 female 3-way cutting step valve - Metal Work - ADAJUSA

1/2 female 3-way cutting step valve - Metal Work - ADAJUSA 2

Cutting and unloading valves

Valve cutting step 1/2 female 3-way - Metal Work

Metal Work

W0970050004

€17.95 (€14.59 tax excl.)

1/2 female step valve (cut) with discharge (3-way). Reference: W0970050004Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

16 other products in the same category:

Lock valves

1/8 Bidirectional Lock Valve - Aignep

Aignep

8890 1/8

€44.86 (€36.47 tax excl.)

Bidirectional blocking valve, with 1/8" thread , and control connection for 6mm outer diameter tube. This valve allows the complete blocking of the air passage in either direction. The main application of this type of valve is block or prevent the passage of air in a pneumatic circuit. Manufactured in a metallic body. Reference: 8890 1/8 Representative...

Shut-off valves

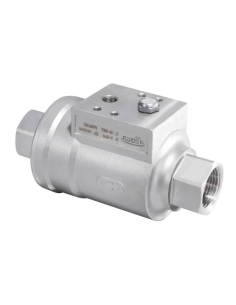

3/4 coaxial shut-off valve pneumatic actuation - Aignep
