1/2 female 3-way cutting step valve - Metal Work - ADAJUSA

Valve cutting step 1/2 female 3-way - Metal Work

Name: Valve cutting step 1/2 female 3-way - Metal Work
Brand: Metal Work
SKU: W0970050004
Price: 17.9457 EUR
Availability: PreOrder

€17.95 Tax included

€14.59 tax excl.

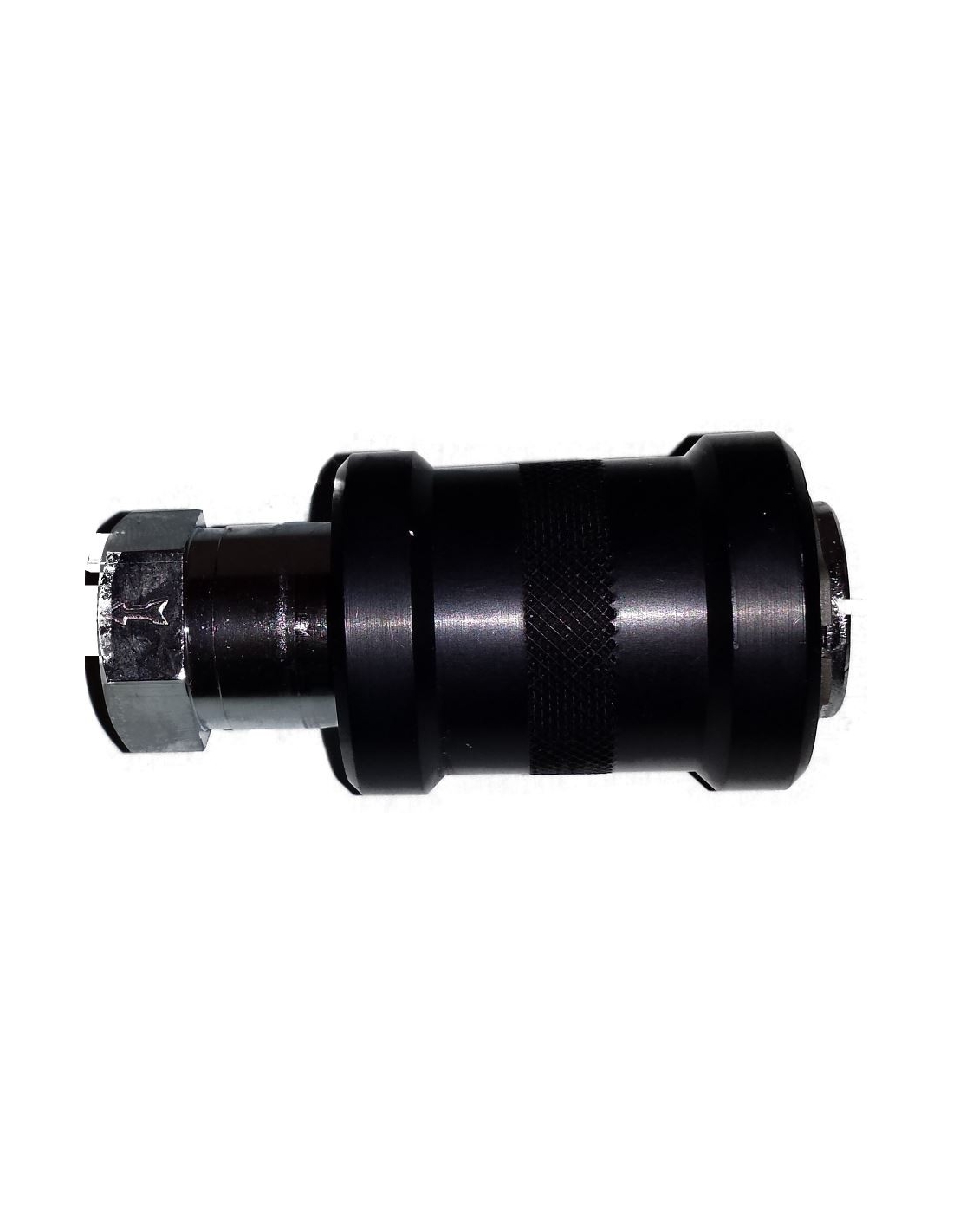

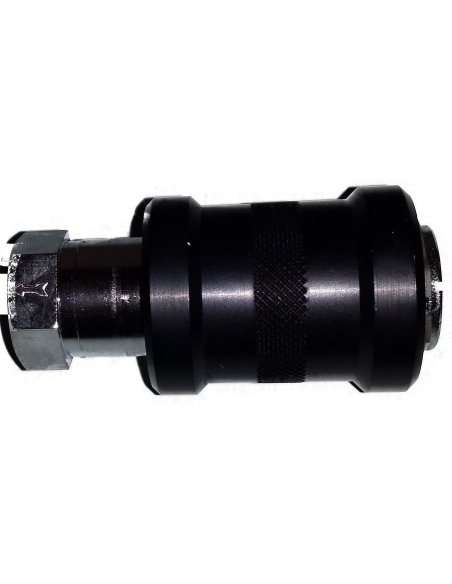

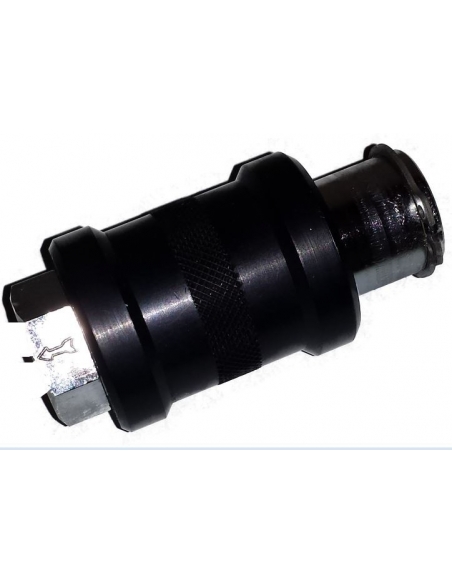

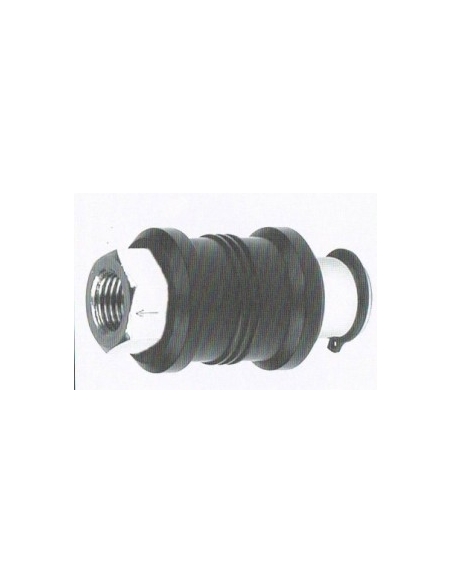

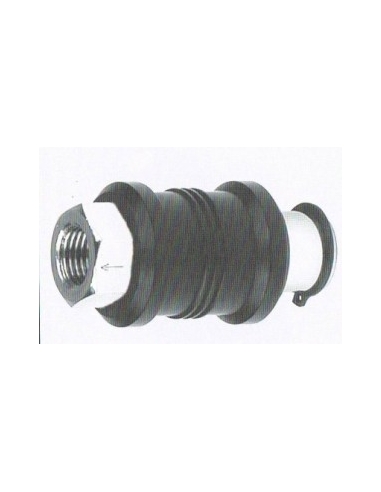

1/2 female step valve (cut) with discharge (3-way).

Logotipo Metal Work
Reference: W0970050004
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/2 female step valve (cut) with discharge (3-way), frequently used as a circuit disconnector valve.

By pushing back the ring, the air supply is interrupted and the circuit is discharged, when the ring advances air supply to the circuit is established.

Manufacturer: Metal Work
Manufacturer reference: W0970050004 series VCS-1/2.
Operating pressure: 0 ÷ 10 bar (0 ÷ 1 MPa)
Operating temperature °C: –10 ÷ 80
Fluid: Filtered air with or without lubrication
Flow rate at 6.3 bar (0.63 Mpa ÷ 91 psi) ∆P 0.5 bar Nl/min: 430
Flow rate at 6.3 bar (0.63 Mpa ÷ 91psi) ∆P 1bar Nl/min: 630
Conductance C Nl/min · bar: 170
Critical ratio b bar/ba: 0.2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Auxiliary valves

Download (844.62KB)
