1/2 female 2- way shut-off valve - Aignep
1/2 female 2- way shut-off valve - Aignep

1/2 female 2- way shut-off valve - Aignep

€8.98 Tax included

€7.42 tax excl.

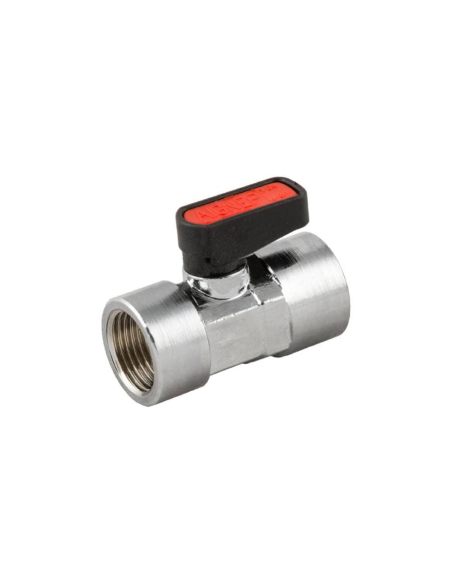

Shut-off valve or 1/2 female ball valve (RP in accordance with ISO 7), 2- way , actuated by handle. Made of chromed brass and handle made of fiberglass reinforced polyamide.

Small valve for pneumatic applications of compressed air, tools, automation, food and beverages, plumbing, vacuum and inert gases, thermo-hydraulic sector. It has BS EN 331:2015 certification.

Series: GHILUX
Reference: 6300 1/2 1/2

aignep
normative

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Two- way 1/2 female ball valve (RP in accordance with ISO 7) and actuation by handle. Body, nut and spindle made of chrome-plated brass, handle in PA66 polyamide with fiberglass reinforcement and PTFE ball seat gasket. These micro valves of small dimensions and excellent performance guarantee a reliable seal and a secure connection between components. They are used to close the air passage in various pneumatic applications such as tools and compressed air, automation, thermo-hydraulic sector, food and beverages, life & science, plumbing, vacuum, inert gases, fluid interception, etc.

These on-off type valves have two possible positions, open or closed . In the ON position, the fluid from the circuit passes through the valve and when it is in the OFF position, it completely blocks the flow of fluid.

GHILUX series products meet the requirements of British Gas (UK energy supplier), complying with the BS EN 331: 2015 standard which ensures the safety and quality of gas valves used in buildings.



6300materials


Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 6300 1/2 1/2
  • Thread: Female 1/2 (Cylindrical conical thread conforming to ISO 7)
  • Material: Chromed brass
  • Application fluids: Compressed air / Water / Oil / 1st and 2nd family of medium pressure gases / 3rd family of low pressure gases
  • Temperature: -20ºC to +80ºC
  • Pressure: - 0.99bar to 20bar
  • Thread regulations:
    • Gas conforms to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas according to ISO 228 Class A
    • NPTF Metric conforms to ANSI B1.20.5



Dimensions:

6300 dimensions
6300TD





For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
