Name: Pressure regulator 3/8 0-12 bar size 2 Syntesi technopolymer - Metal Work
Brand: Metal Work
SKU: 5623R163
Price: 45.73 EUR
Availability: BackOrder

€45.73 Tax included

37.18 tax excl.

5623R163

3/8 pressure regulator regulation 0-12, size 2, body in technopolymer extreme reliability. Allows stability of the output pressure at the preset pressure. Possibility of fixing through side holes. Padlock locking system. Syntesi Group

Reference: 5623R163

pneumatic pressure regulator symbol

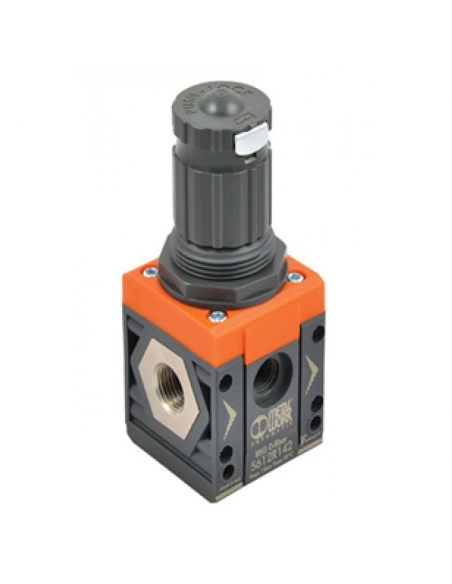

metal work logo Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pressure regulator 3/8 0-12, size 2, body made of high resistance technopolymer. It allows stability of the outlet pressure at the preset pressure starting from an equal or higher inlet pressure. Possibility of fixing through side holes. Padlock locking system.

It admits very diverse types of assembly, with the appropriate accessories.

Pressure gauge not included (can be ordered separately)

Technical characteristics.

Manufacturer: Metal Work
Reference: 5623R163- REG SY2 3/8 012
Regulator Size: Size 2
Threaded connection size: 3/8".
Regulation range: 0-12 bar .
Maximum inlet pressure: 13 bar .
Locking control: by padlock (not included).
Flow rate at 6 bar (ΔP1bar): 5300 Nl/min.
Fluid: Air filtering, with or without lubrication.
Wall fixing screws: M5.
Pressure gauge connection: 1/4".
Mounting position: Any.
Weight: 546g.

For other models or sizes consult.

Size 2 Metal Work syntesi regulators dimensions

Mounting types syntesi regulators

Mounting accessories not included.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Filters and Lubricators Tab

Download (410.99KB)
