Digital Temperature Controller CH102 48X48

€46.77 Tax included

€38.65 tax excl.

Digital temperature controller,thermostat, with direct temperature reading, size 48x48mm, supports a wide range of collectors and sensors. Relay and SSR output. PID control, ON/OFF. Operating voltage 100 to 230Vac.

Ref: CH102

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


High precision digital temperature controller, thermostat, with direct reading of current temperature and setpoint. PID, ON/OFF and proportional control.

PID temperature control, with precise self-adjustment (AT), PID parameters are automatically calculated which improves system stability and control accuracy.

Its usual use is for precise temperature control in industrial, domestic and systems machines in general.

Specifications:

  • Manufacturer/Supplier: Denor
  • Reference: CH102
  • Working voltage: 100 to 230Vac.
  • Power consumption: 10VA.
  • Dimensions: 48x48mm.
  • Indication: Using 2 lines of 7-segment LED displays, red and green.
  • Input Temperature Sensors:
    • Thermocouples: K, J, R, S, B, E, N, T
    • RTD platen: Pt100, CU50.
  • Measurement display accuracy: 0.1%.
  • Control methods: PID, ON/OFF, manual.
  • Output Type: Relay 230Vac 5A.
  • Sampling rate: 0.5 seconds.

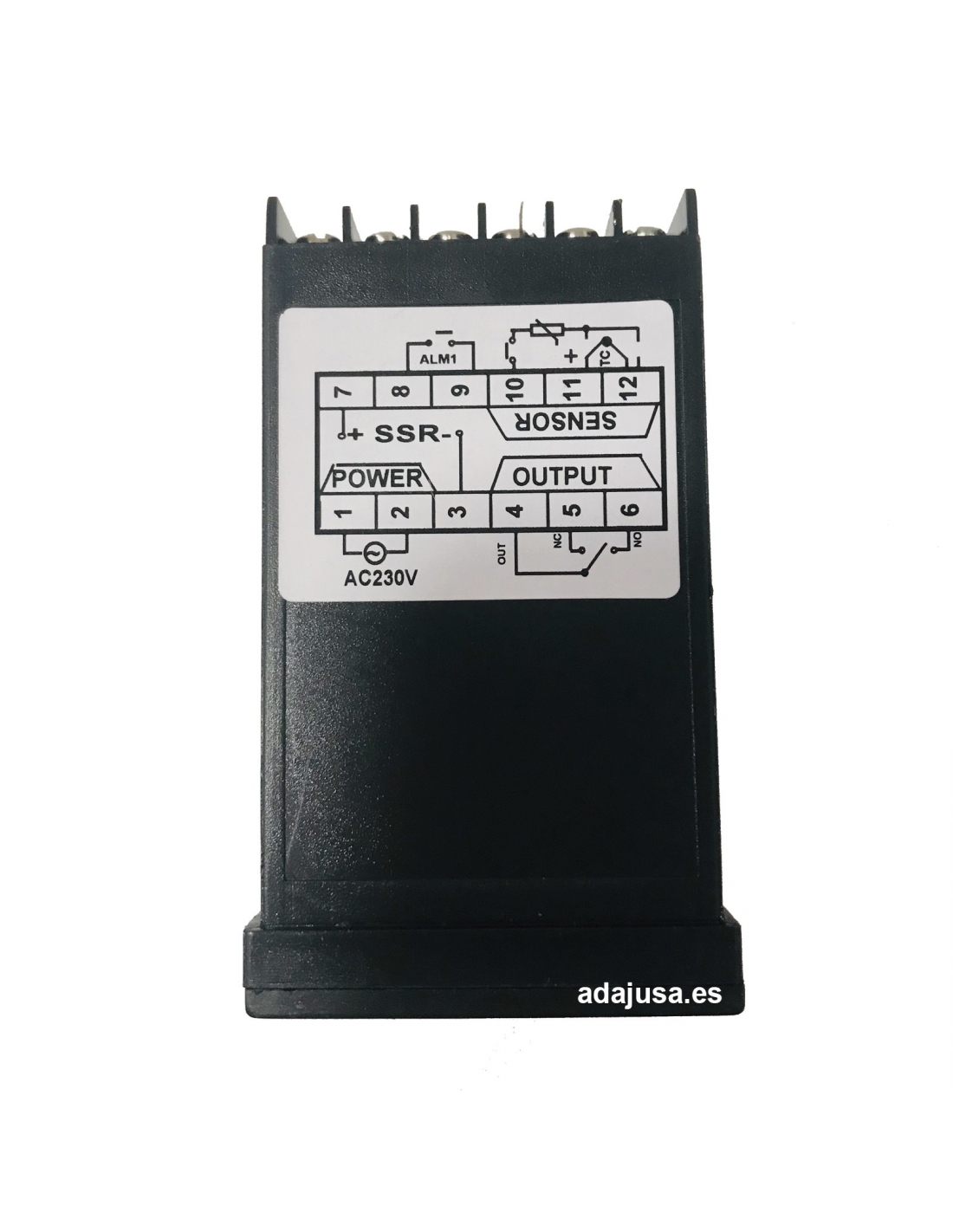

Connection Scheme:

Diagrama-conexionado-controlador-temperatura-CH102

Note: Relay and SSR outputs cannot be used simultaneously, either relay output or SSR output is used.
