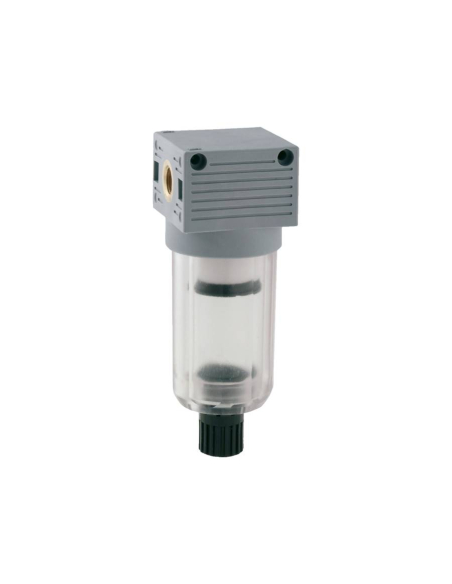

Filter 1/4 20 micron semi-automatic purge FRL MINI series - Aignep

Name: Filter 1/4 20 micron semi-automatic purge FRL MINI series - Aignep
Brand: Aignep
SKU: T010003201000
Price: 16.9248 EUR
Availability: InStock

€16.92 Tax included

€13.76 tax excl.

Filter 1/4, with a filtration degree of 20μm and semi-automatic discharge, compact size, for retention of solid or liquid impurities from the air compressor .These filtering cups are made of technopolymer and with metal endings. Made in Italy.

Series: FRL mini
Part number: T010003201000

Simbolo neumatico filtro Adajusa
Logotipo Aignep Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the aircompressor .Compact size. The type of purge is semi-automatic, discharging when the pressure in the filter approaches zero.

Among the main features of this filtering group it has a high flow performance compared to its reduced size and weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and metallic terminations.

Features:

Manufacturer: Aignep
Manufacturer's part number: T010003201000
Threaded drive: 1/8"
Filtration degree: 20 μm
Maximum inlet pressure: 15 bar
Manual condensate drain and automatic drain when pressure is removed.
Flow rate at 6 bar (∆P 1 bar): 800 Nl/min
Fluid: Compressed air or other inert gases
Cup capacity (condensation) (cm3): 17,5
Mounting position: Vertical.
Working temperature: -10 to +50ºC.
Reference standard: PED 2014/68/EU

(*) On request it can be supplied with a filtration degree of 5 μm.

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa
TABLA T010 MINI

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information, you can download the technical data sheet by clicking on the "Attachments" tab

FRL Mini Series Catalog

FRL Mini series filter groups catalog

Download (2.08MB)
