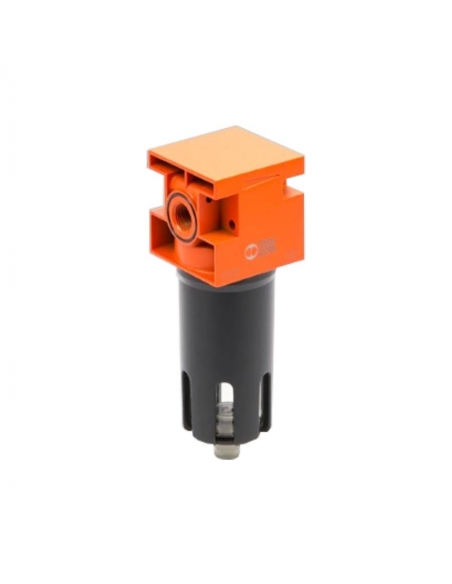

Filter 3/4 metallic 20 microns semi-automatic purge New Deal - Metal Work

€102.11 Tax included

€83.02 tax excl.

Filter  3/4 metallic , with a filtration degree of 20μm and semi-automatic discharge, for the retention of solid or liquid impurities from the air compressor. These filter cups are made of metal with excellent resistance to corrosion. European manufacturing.

Series: New Deal
Reference: 1521006
metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Filter  3/4 metal  cup, with a filtration degree of 20μm to retain solid or liquid impurities from the air compressor. The type of purge is semi-automatic, it discharges when the pressure in the filter approaches zero.

Characteristic:

  • Manufacturer: Metal Work
  • Manufacturer reference: 1521006
  • Size: 3/4"
  • Regulation range: RMSA
  • Maximum inlet pressure: 18 bar .
  • Flow: 11000 Nl/min.
  • Filtration degree: 20µm.
  • Metal glass with external viewer.
  • max temperature at 1MPa; bar ; 145psi: 50ºC
  • Bowl capacity: 170 cm3



For other sizes and models consult.





Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
