Pressure regulator 1/4 0-12 bar technopolymer - Metal Work
Pressure regulator 1/4 0-12 bar technopolymer - Metal Work

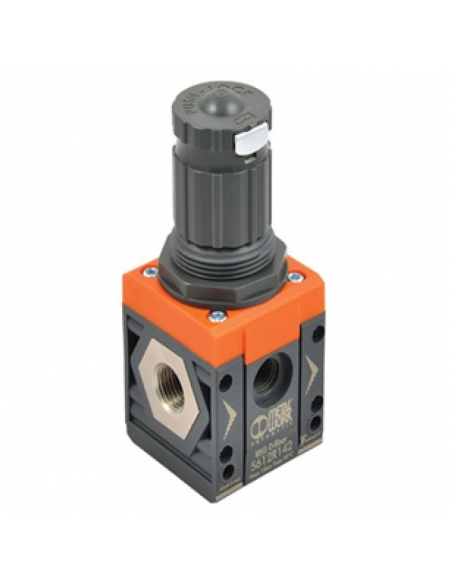

Pressure regulator 3/8 0-12 bar size 1 Syntesi technopolymer - Metal Work

€32.68 Tax included

€26.57 tax excl.

3/8 pressure regulator regulation 0-12, size 1, body in technopolymer extreme reliability. Allows stability of the output pressure at the preset pressure. Possibility of fixing through side holes. Padlock locking system. Syntesi Group

Reference: 5613R163

pneumatic pressure regulator symbol

metal work logo Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/8 0-12 pressure regulator , size 1, body made of high resistance technopolymer. It allows stability of the outlet pressure at the preset pressure starting from an equal or higher inlet pressure. Possibility of fixing through side holes. Padlock locking system.

It admits very diverse types of assembly, with the appropriate accessories.

Pressure gauge not included (can be ordered separately)

Technical characteristics.

  • Manufacturer: Metal Work
  • Reference: 5613R163- REG SY1 3/8 012
  • Regulator Size: Size 1
  • Threaded connection size: 3/8".
  • Regulation range: 0-12 bar .
  • Maximum inlet pressure: 15 bar .
  • Locking control: by padlock (not included).
  • Flow rate at 6 bar (ΔP1bar): 3350 Nl/min.
  • Fluid: Air filtering, with or without lubrication.
  • Wall fixing screws: M4x40.
  • Pressure gauge connection: 1/8".
  • Mounting position: Any.
  • Weight: 179g.

For other models or sizes consult.

Regulator dimensions syntensi size 1

Mounting types syntesi regulators


Mounting accessories not included.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Manometer 40 1/8 0-12 bar... Manometer 40 1/8 0-12 bar... 2
Gauges and measurement elements

Manometer 40 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP4318012
€6.27 (€5.10 tax excl.)
Pressure gauge diameter 40 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP4318012 Representative image for illustrative purposes,...

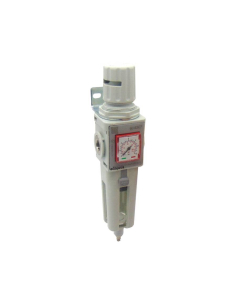

Filter-regulator 3/8 technopolymer
