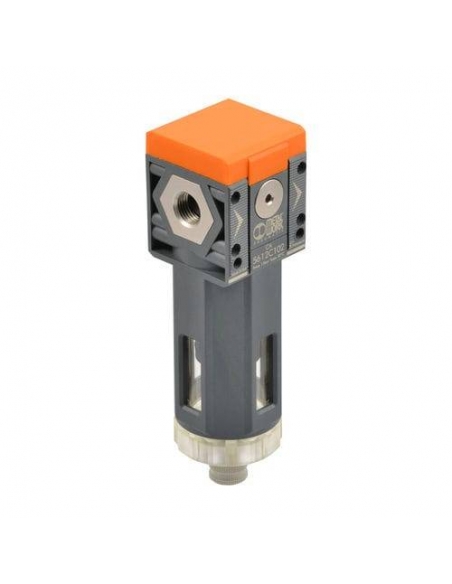

Filter 1/8 5 microns automatic drain size 1 Syntesi series - Metal Work

€50.70 Tax included

41.22 tax excl.

5611F401

1/8 filter, with a filtering degree of 5μm and automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.

Series: Synthesis
Reference: 5611F401

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8" filter cup with a filtration grade of 5μm to retain solid or liquid impurities from the aircompressor .Compact size (SY1). The type of purge is automatic, with condensate discharge, independent of pressure and flow rate.

Features:

  • Manufacturer: Metal Work
  • Manufacturer's part number: 5611F401
  • Threaded actuator: 1/8"
  • Group size: size 1.
  • Filtration degree: 5 μm
  • Maximum inlet pressure (bar/Mpa/psi): 15 / 1.5 / 217
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) (Nl/min): 900
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 1300
  • Discharge type: Automatic (RA)
  • Fluid: Compressed air or other inert gases
  • Cup capacity (condensing) (cm3): 30
  • Flow rate of additional air intakes at 6.3 bar (Nl/min): 500
  • Wall mounting screws: Number 2 screws M4
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult us.

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA 2
Gauges and measurement elements

Manometer 40 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP4318012
€5.74 (€4.67 tax excl.)
Pressure gauge diameter 40 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP4318012 Representative image for illustrative purposes,...
Filter-regulator 1/4 technopolymer
Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-12 bar semi-automatic drain Syntesi series - METAL WORK

Metal Work
5612B262
€45.39 (€36.90 tax excl.)
Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Filter-regulator 3/8 technopolymer
Filter groups of 3/8 FR-L

Pneumatic filter-regulator 3/8 0-12 bar purge size 1 semi-automatic series Syntesi -...

Metal Work
5613B263
€45.39 (€36.90 tax excl.)
Filter with 3/8 pneumatic pressure regulator, 3/8 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...

16 other products in the same category:

Filter-regulator 1/8 T1 Syntesi - Metal work - ADAJUSA
Filter groups of 1/8 FR-L

Pneumatic filter-regulator 1/8 0-12 bar automatic drain Syntesi series - Metal Work

Metal Work
5611B561
€68.83 (€55.96 tax excl.)
Filter with 1/8 pneumatic pressure regulator, 1/8 maintenance unit for pneumatic applications, automatic drain, compact size (SY1) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series: Synthesis Reference:...
Pressure gauge 40 1/8 0-4 Kgr box in plastic - Metal Work Pressure gauge 40 1/8 0-4 Kgr box in plastic - Metal Work 2
Gauges and measurement elements

Manometer 40 1/8 0-4 bar back plastic box - Metal Work

Metal Work
MWMP431804
€6.27 (€5.10 tax excl.)
Pressure gauge diameter 40 with plastic box. Pressure gauge to control the pressure of the machine to be used. Steel case painted in black and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP431804Representative image for illustrative purposes,...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge for panel 63mm 1/4 0-12 bar with stand - Metal Work

Metal Work
PK-MAN6320G4G12SOP
€16.10 (€13.09 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 12 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...

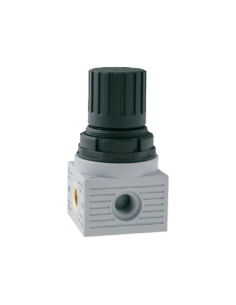

Regulator pneumatic pressure 1/8 Aignep: ADAJUSA : price Regulator pneumatic pressure 1/8 Aignep: ADAJUSA : price 2
  • Pack
Compressed air filtration and treatment groups

Regulator pressure 1/8 0-8 bar complete series FRL MINI - Aignep

Aignep
PK-T020002030000
€26.15 (€21.26 tax excl.)
Regulator 1/8 completepressure regulator, with regulation between 0-8 bar, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure.Series: FRL MINIReference: PK-T02000202030000 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Pneumatic filter regulator 1/8 FRL MINI T030002241000 - Aignep | ADAJUSA | price
Filter groups of 1/8 FR-L

Pneumatic filter-regulator 1/8 0-12 bar FRL MINI series - Aignep

Aignep
T030002241000
€30.25 (€24.59 tax excl.)
Filter with 1/8 pneumatic pressure regulator, 1/8 maintenance unit for pneumatic applications, semi-automatic purge, compact size and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in ItalySeries: FRL MiniReference: T030002241000 Representative...
Filter 1/8 20 RA Size 1 Syntesi Metal Work - ADAJUSA
Filter groups of 1/8 FR-L

Filter 1/8 20 microns automatic drain size 1 Syntesi series - Metal Work

Metal Work
5611F501
€50.70 (€41.22 tax excl.)
1/8 filter, with a filtration degree of 20μm and automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5611F501Representative image for illustrative...
Pneumatic filter 1/8 20 series FRL MINI semi-automatic purge | Aignep | ADAJUSA | price
Filter groups of 1/8 FR-L

Filter 1/8 20 micron semi-automatic purge FRL MINI series - Aignep

Aignep
T010002201000
€17.63 (€14.33 tax excl.)
1/8 filter, with a filtration degree of 20μm and semi-automatic discharge, compact size, for retention of solid or liquid impurities from the air compressor .These filtering cups are made of technopolymer and finished in metal. Made in Italy. Series: FRL miniPart number: T010002201000 Representative image for illustrative purposes, the item supplied...

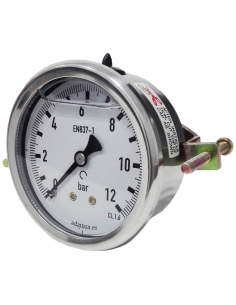

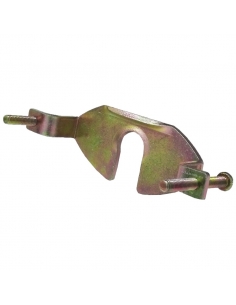

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 6 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G6SOP
€16.10 (€13.09 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 6 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel needle....

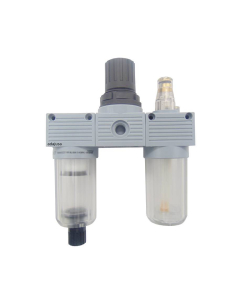

Pneumatic filtering group 1/8 Series FRL Mini Aignep | ADAJUSA : price Pneumatic filtering group 1/8 Series FRL Mini Aignep | ADAJUSA : price 2
Filter groups of 1/8 FR-L

Pneumatic filtering group 1/8 regulation 0-8 bar semi-automatic purge FRL Mini series -...

Aignep
T200002231100
€61.61 (€50.09 tax excl.)
Filtering group of 1/8, maintenance unit of 1/8 for pneumatic applications, semi-automatic purge, compact size in 3 modules (FR+R+L), and regulation range 0-8 kg/cm2. These filtering groups are manufactured in technopolymer and with metallic terminations. European manufacture.Series: FRL MiniReference: T200002231100 Representative image for...

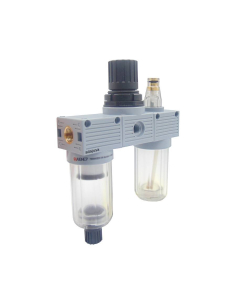

Pneumatic filtering group 1/8 Series FRL Mini Aignep | ADAJUSA : price Pneumatic filtering group 1/8 Series FRL Mini Aignep | ADAJUSA : price 2
Filter groups of 1/8 FR-L

Pneumatic filtering group 1/8 regulation 0-12 bar semi-automatic purge FRL Mini series...

Aignep
T200002241100
€61.61 (€50.09 tax excl.)
1/8 filtering group, 1/8 maintenance unit for pneumatic applications, semi-automatic purge, compact size in 3 modules (FR+R+L), and regulation range 0-12 kg/cm2. These filtering groups are manufactured in technopolymer and with metallic terminations. European manufacture.Series: FRL MiniReference: T200002241100 Representative image for...

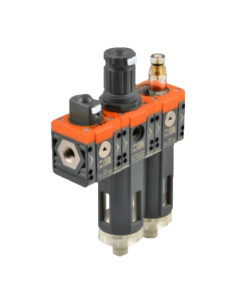

Valve + Filter + Lubricator T1 Syntesi - Metal Work - ADAJUSA
Filter groups of 1/8 FR-L

Filter group 1/8 with shut-off valve regulation 0-8 bar semi-automatic drain Syntesi...

Metal Work
5611V10B24L1
€124.05 (€100.85 tax excl.)
1/8 filter group with manual shut-off valve , 1/8 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) and regulation range 0-8 kg/cm2. Equipped with manual cut-off valve at the inlet. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European...

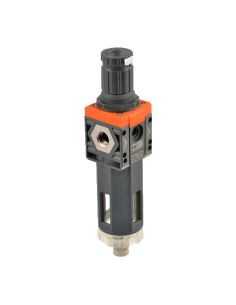

Filter-regulator 1/8 T1 Syntesi - Metal work - ADAJUSA
