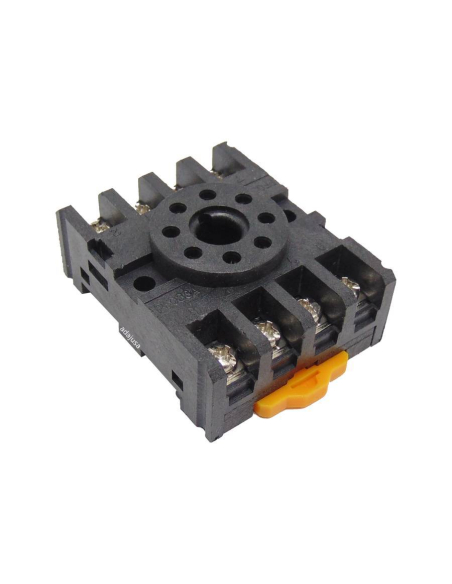

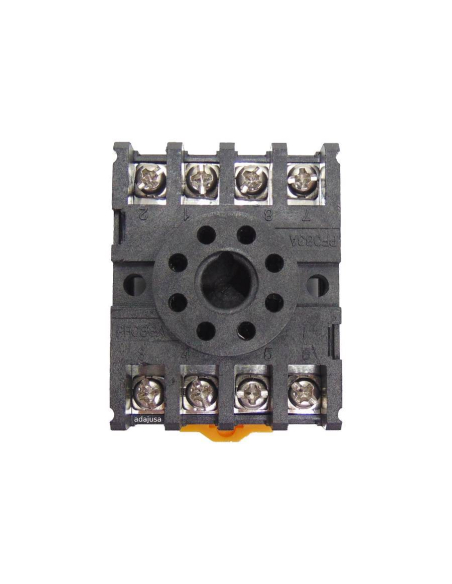

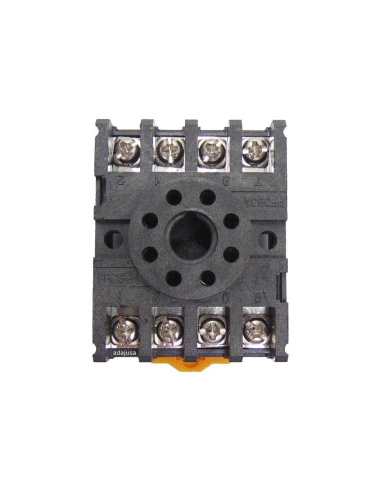

8-pin relay base

Name: 8-pin relay base
Brand: Generico-DE
SKU: PF083A
Price: 1.0406 EUR
Availability: InStock

€1.04 Tax included

€0.86 tax excl.

Octal base for connection of relays and 8-pin pluggable timers. Current capacity 10A and 300Vac.

Ref: PF083A

No queries yet, leave the first!

Privacy

Shipments

Returns

Octal base for connection of relays, timers and 8-pin pluggable elements. Front connection and fastening by DIN rail or screws.

Technical features:

Manufacturer/Supplier: Denor
Ref: PF083A
Maximum current: 10A.
Maximum voltage: 300Vac.
Working temperature: -40oC to 75oC.
Fixing: Via DIN rail or 2 M4x20mm screws.
Dimensions: 55x40x21mm.
Equivalent to PF03A.

Dimensiones base octal

Conexionado base octal

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)
