Daily astronomical programmer switch
Daily astronomical programmer switch
Daily astronomical programmer switch
Daily astronomical programmer switch
Daily astronomical programmer switch
Daily astronomical programmer switch
Daily astronomical programmer switch
Daily astronomical programmer switch

Daily astronomical programmer switch

€25.64 Tax included

€21.19 tax excl.

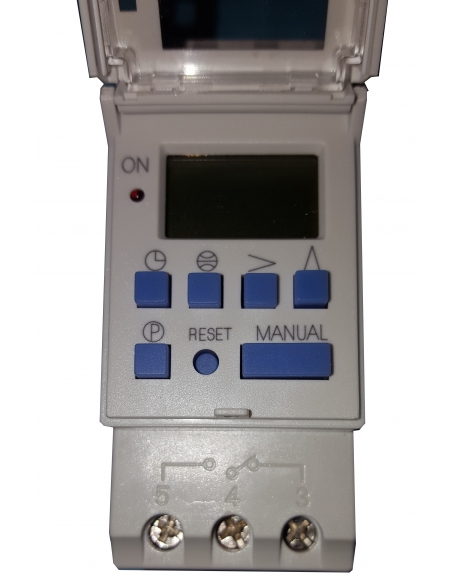

Digital time clock, digital operation with 3-year battery backup. 8 on/off cycles per day with the possibility of time correction according to latitude. DIN rail mounting (2 modules). High capacity NO/NC changeover contact. Manual on/off switching. Status indicator light.

Reference: AHC15T

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

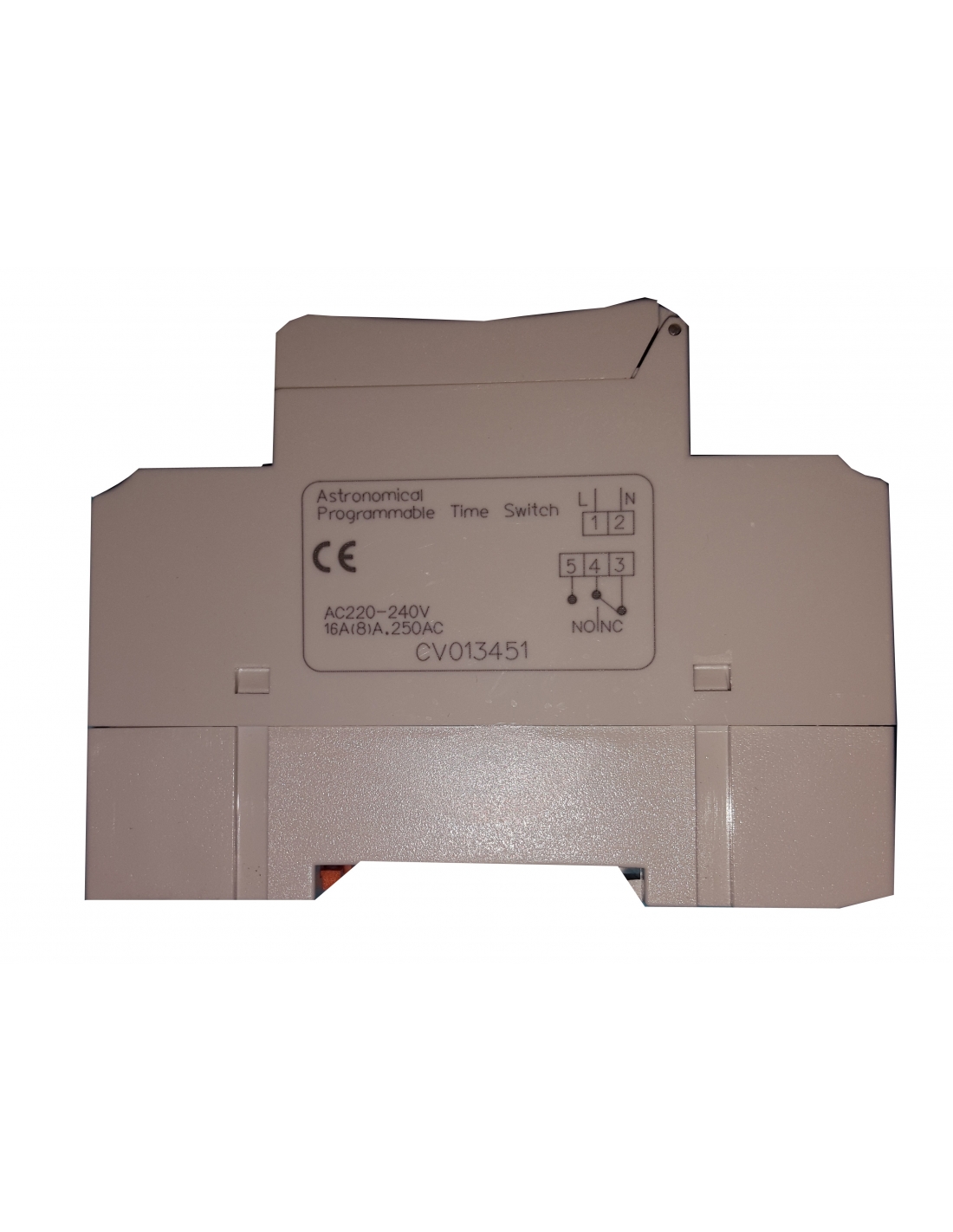

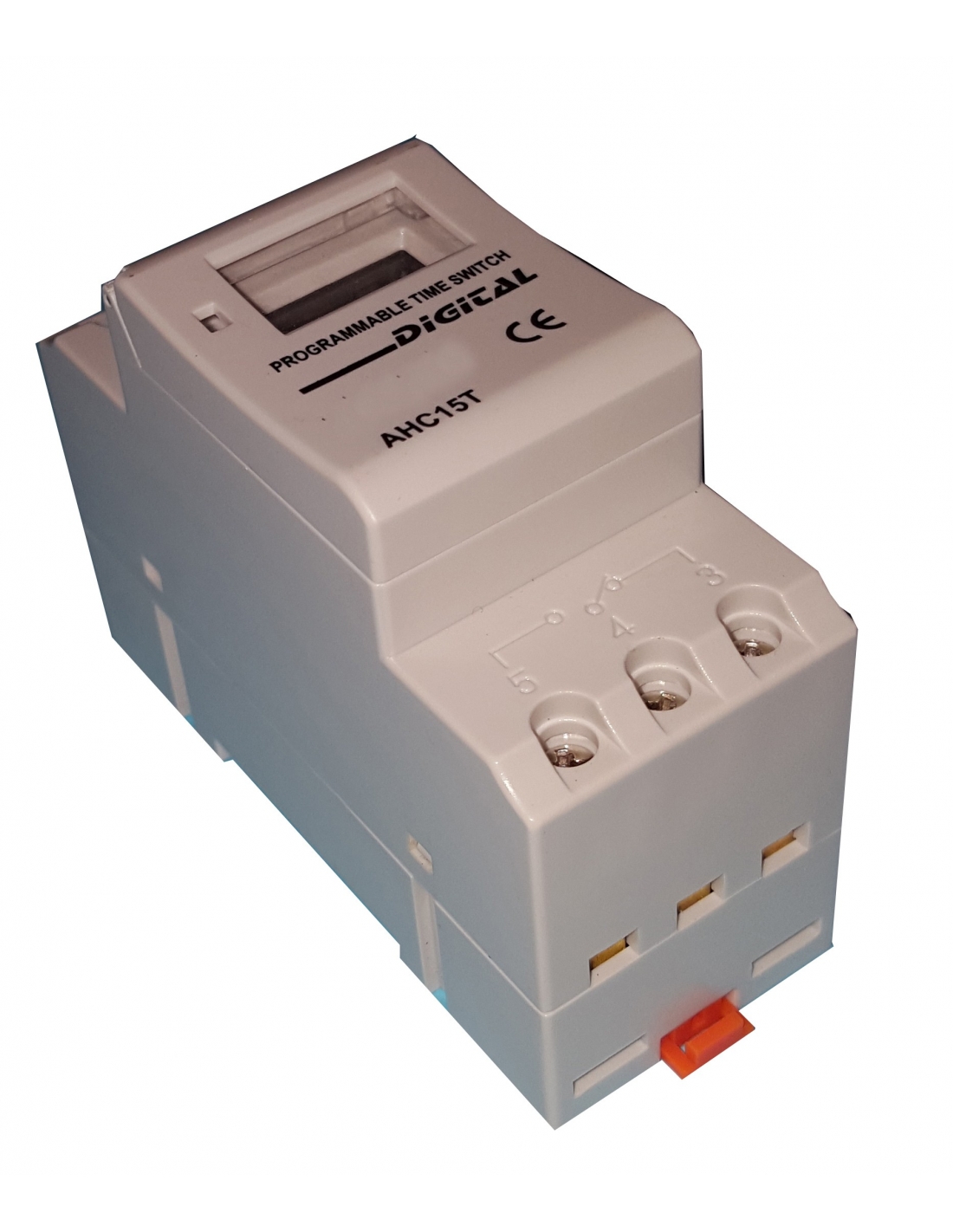

Astonomically programmed timeswitch, DIN rail mounted, occupying a size of 2 modules. The programmed time switch has a 3-year battery backup (lithium battery), to avoid losing the setting in case of power failure.

Possibility of time correction according to latitude, this avoids having to regularly readjust the programmer to compensate for variations in the length of the days. In summer and autumn the switch-on times will be advanced and the switch-off times will be delayed; in winter and spring the switch-on times will be delayed and the switch-off times will be advanced.

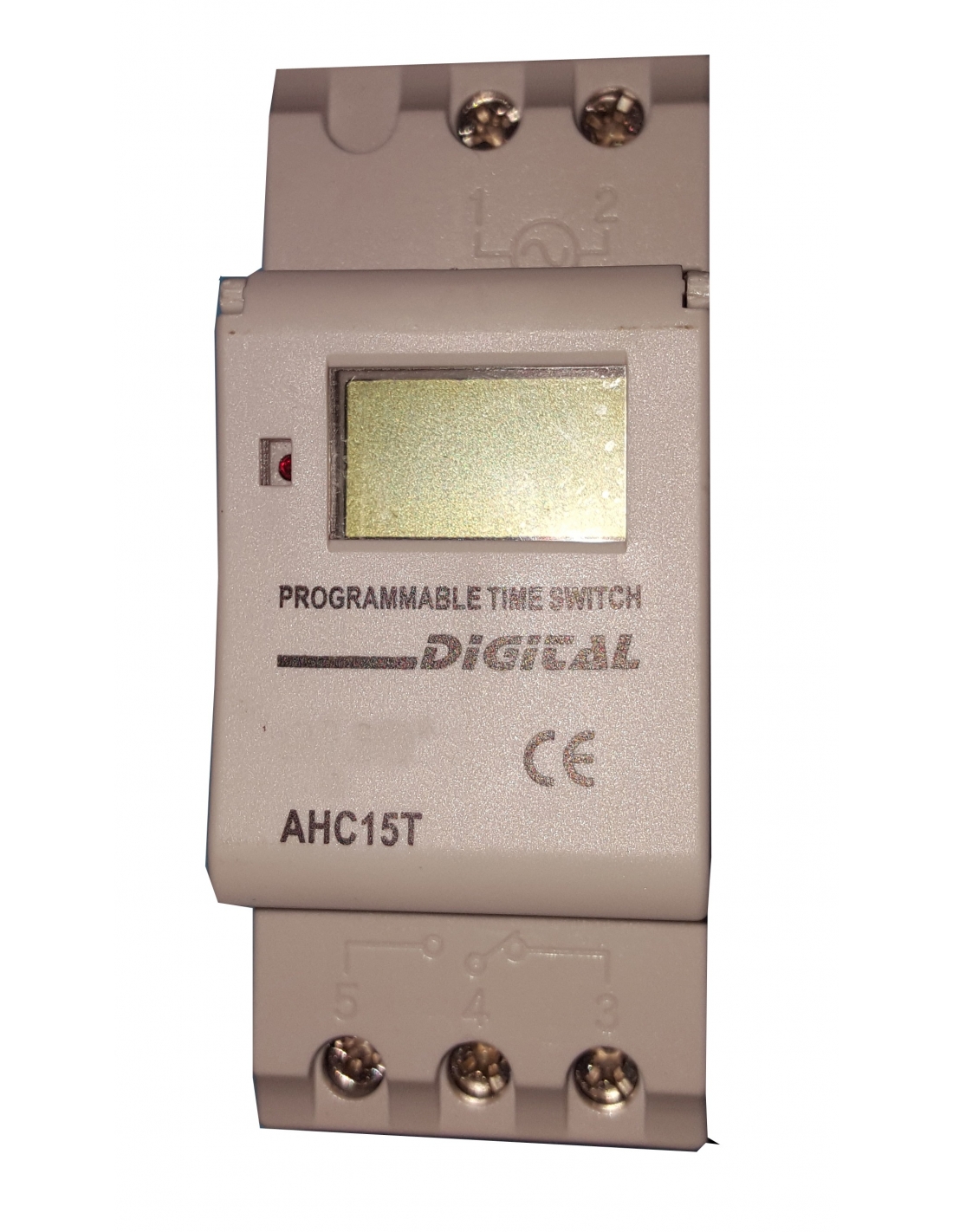

Controlled by microprocessor and indication of status and settings by LCD display. LED status indicator.

The time switch has a polycarbonate cover to prevent unintentional manipulation.

The electrical contact that has is of 1 contact switch NA/NC of high switching capacity.

The setting range from minutes/Hours, with time steps of 1 minute.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Part number: AHC15T
  • Working voltage: 230Vac.
  • Space occupied: 2 modules (36mm).
  • Time range: Daily
  • Time unit: 1 minute.
  • Astronomical compensation: daily and automatic.
  • Status indicator: Led.
  • Battery back-up time: 3 years.
  • Type of contact: 1 contact switched NO/NC 16A. 250Vac Cos ϕ=1A.
  • Power consumption
  • Switch: on/off/time.
  • Fixing: By means of DIN rail.
  • Degree of protection: IP20.
  • Protection cover.
  • Material: Self-extinguishing and high temperature resistant thermoplastic.

Recommended loads:

  • Rated current resistive load Cos ϕ=1: 16A. 250Vac.
  • Rated current inductive load Cos ϕ=0.6 2.5A. 250VAc.
  • Rated load AC1: 3680VA.
  • Rated load in AC15 (250Vac): 625VA.
  • Incandescent/halogen lamps: 1600W.
  • Fluorescent tubes (electronic transformer): 800W.
  • Fluorescent tubes (electromechanical transformer): 600W.
  • CFL: 320W.
  • LED 230V: 320W.
  • Halogen or LED BT with electronic transformer: 320W.
  • Halogen or LED BT with electromechanical transformer: 640W.

If the loads are exceeded, a contactor must be installed to control them.

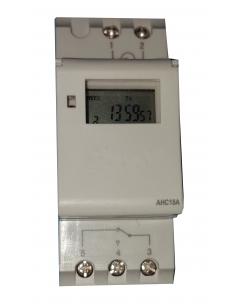

Dimensiones reloj horario AHC15A

Material for professional use, install in compliance with the regulations in force at the place of installation.
