€25.57 Tax included

€21.13 tax excl.

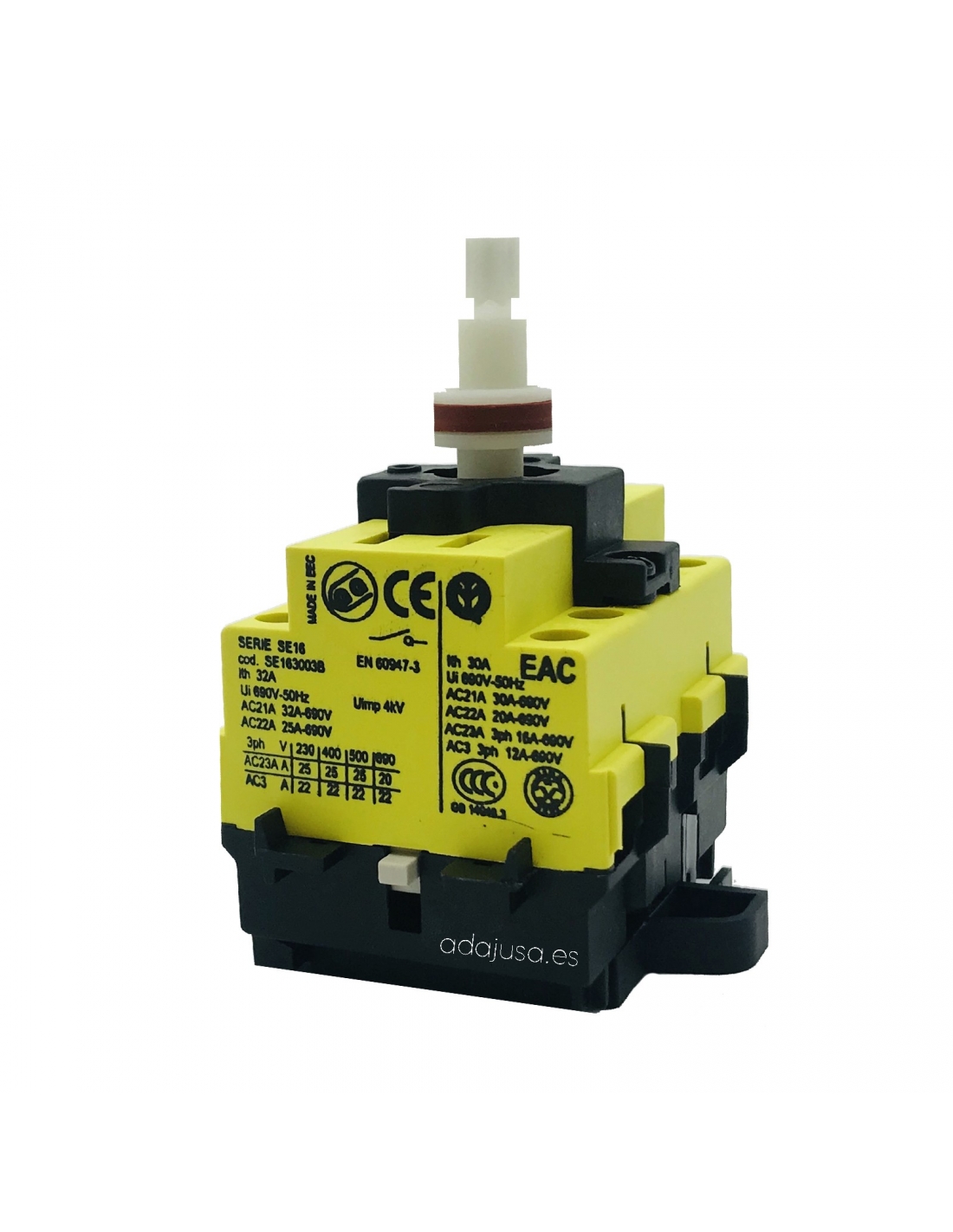

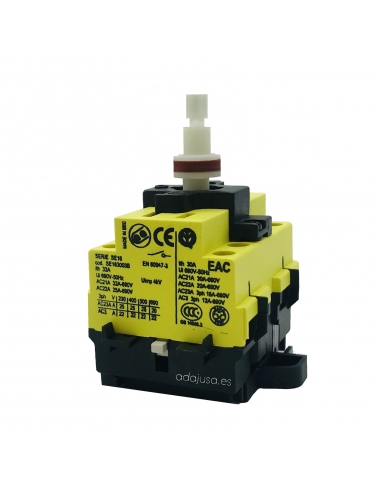

Box with three-phase disconnector switch 32A., rotary knob 90o 0-1. complied with the strictest European standards to meet safety requirements.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

Ref: SE320003BC10

esquema interruptor trifasico

Marca Giovenzana Adajusa

No queries yet, leave the first!

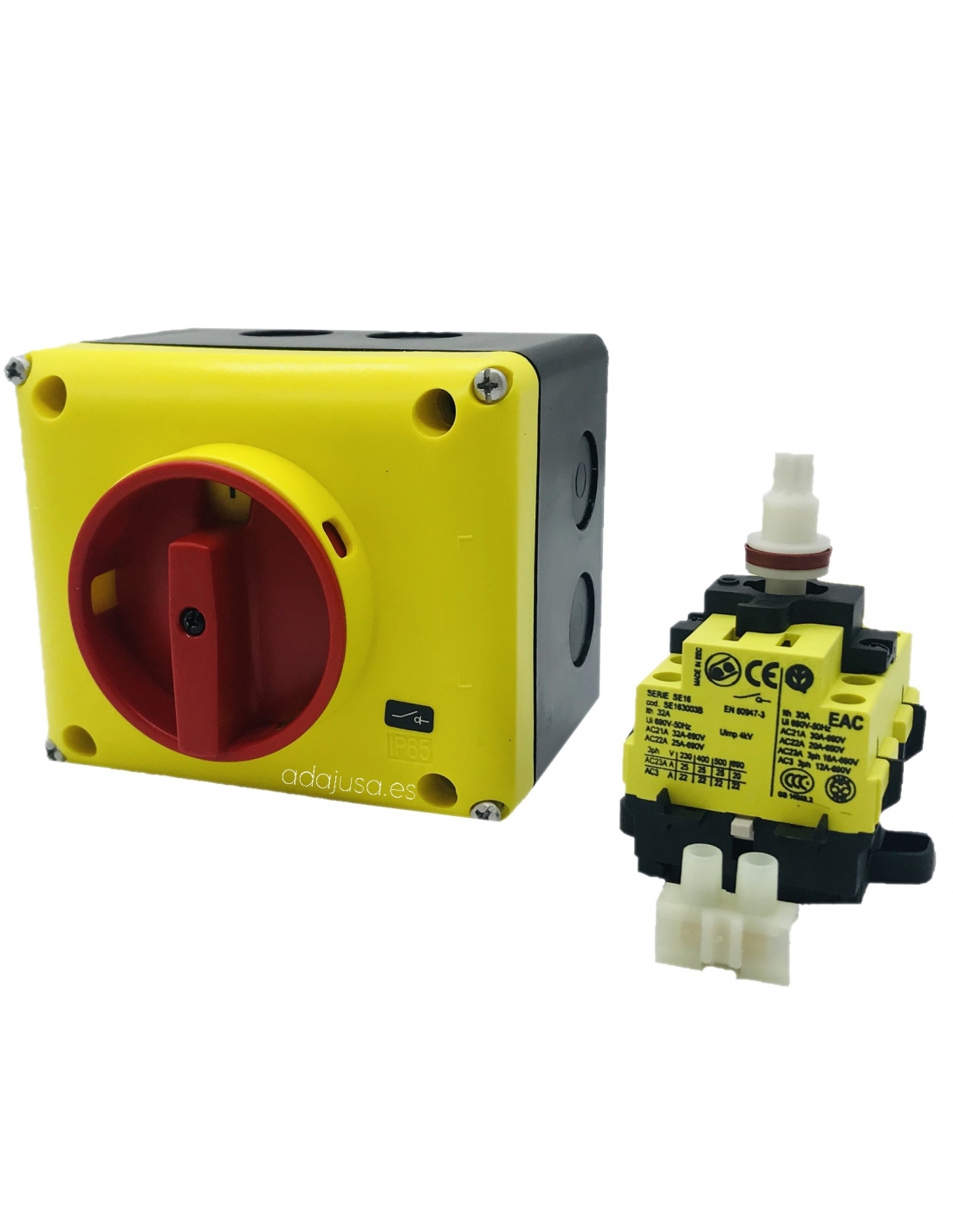

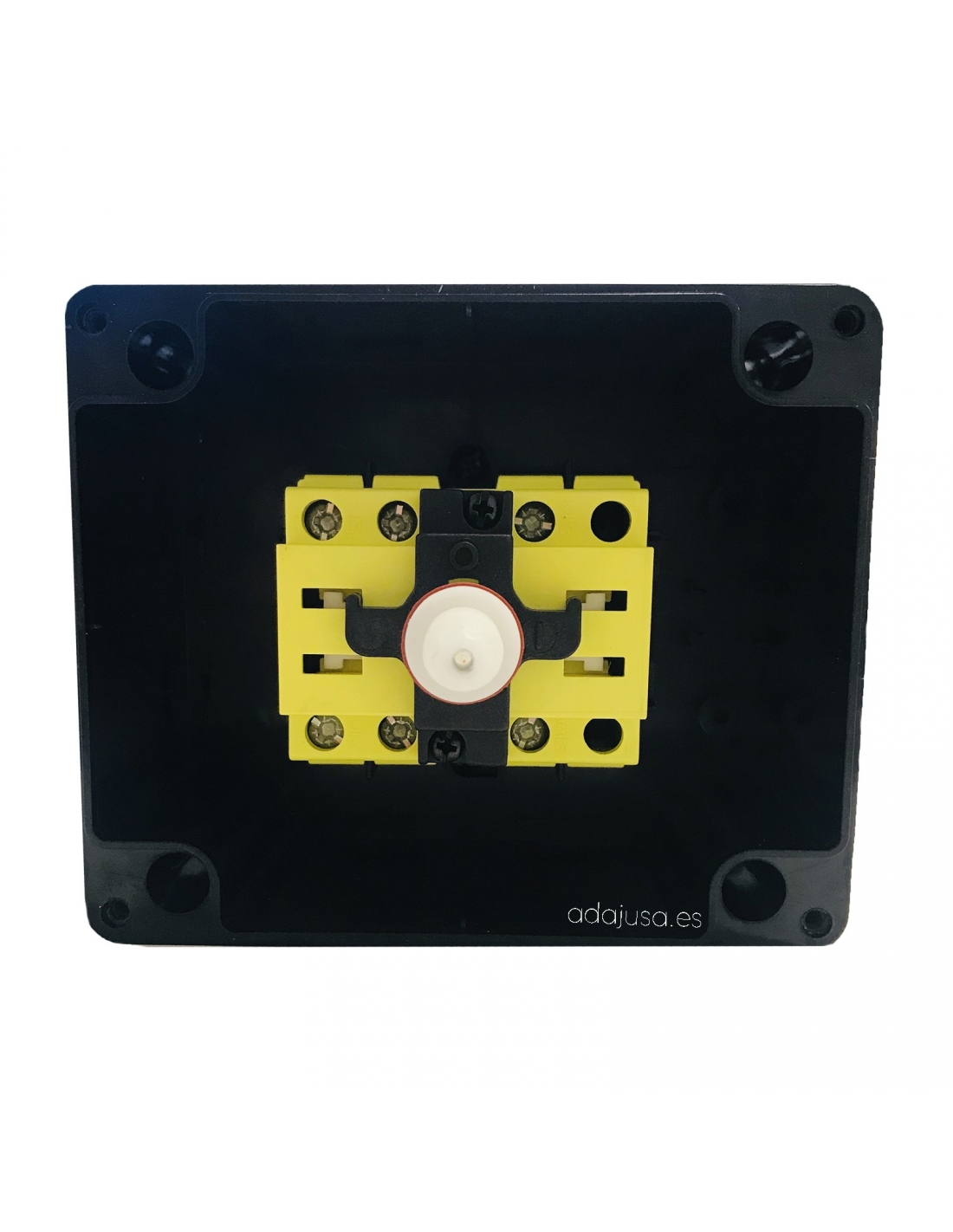

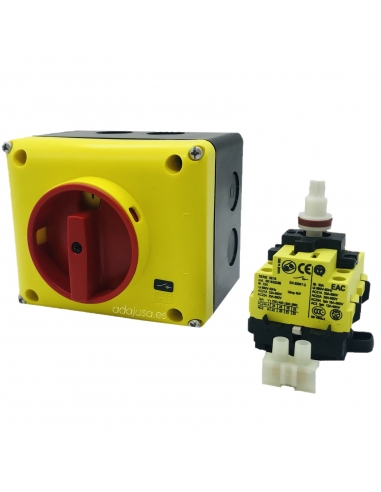

Box with 32A three-phase disconnector switch for inductive loads (electric motors) and general control. Rotary knob 90o with two positions 0-1. Made of thermoplastic material.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

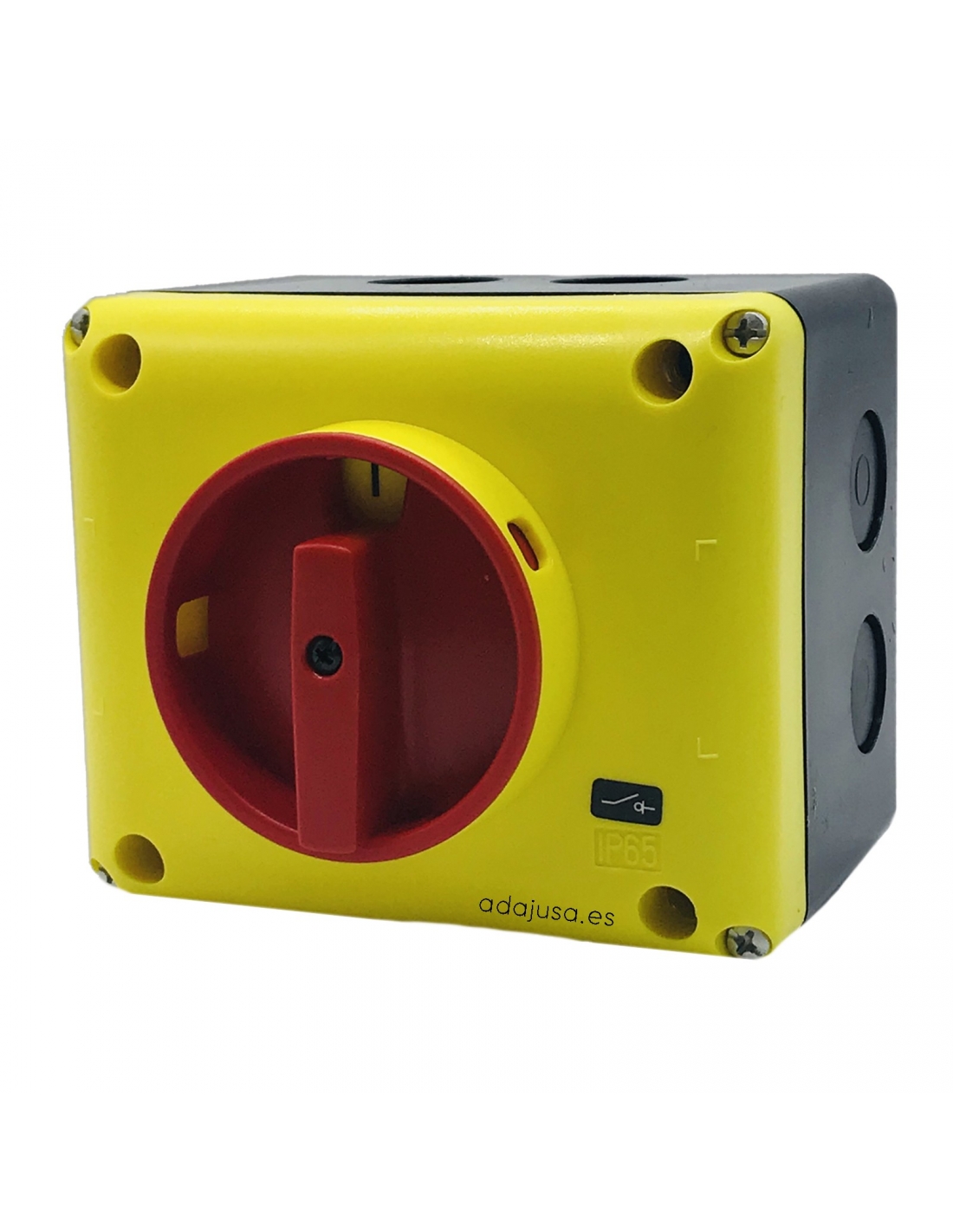

Prepared (pre-cut) for 8 Pg 16 cable glands, two of which are in the background. Black box and yellow cover with red lever, lockable in position "O - OFF", maximum 3 padlocks (not supplied). Degree of protection IP65.

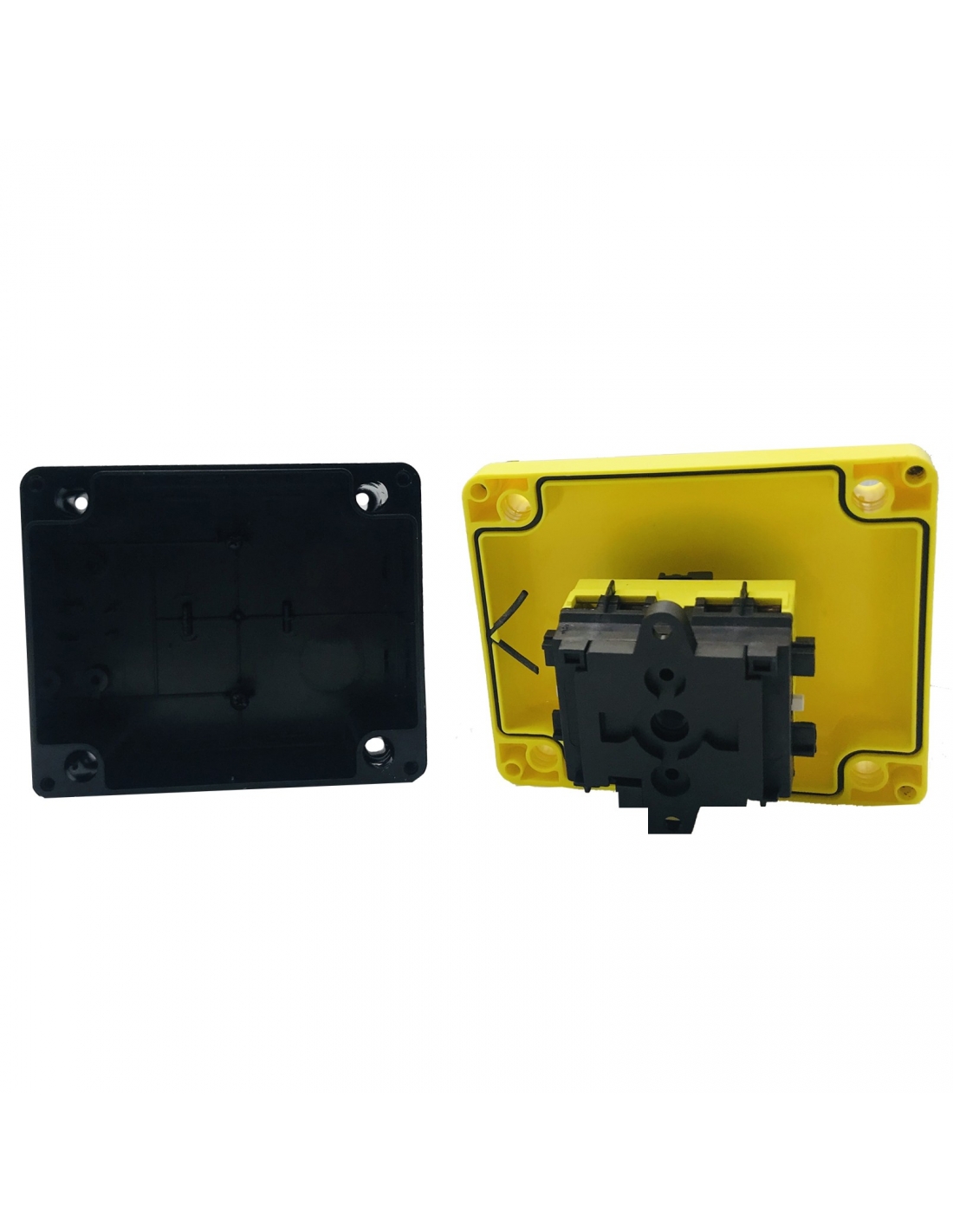

It incorporates safety system by which it is only possible to remove the cover with the switch in the "O" position.

Surface mounting, dimensions 120x100x85 mm.

Features:

  • Brand: Giovenzana.
  • Supplier reference: SE320003BC10
  • Number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 32A.
  • Thermal nomitanl intensity ith: 40A.
  • Nominal interrupt capacity: 8kA.
  • Contacts: Slow opening of double interruption.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 100,000 maneuvers.
  • Maneuvering angle: 90o.
  • Mounting: on the surface.
  • Material: Thermoplastic.
  • Color: Black box with yellow cap. Red lever.
  • Dimensions: 120x100x85 mm.
  • Degree of protection: IP65.
    • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

    Table of intensities and powers of use:

    • AC-21A usage category: 40A.
    • AC-22A use category: 32A.
    • AC-23A Usage Category:
      • Standard three-phase motors 230Vac: 32A - 10kW.
      • 400Vac three-phase standard motors: 32A - 18.5kW.
    • AC-3 Usage Category:
      • 230Vac three-phase standard motors: 27A - 7.5kW.
      • Standard three-phase motors 400VAc: 27A - 15kW.

      Dimensions:

      Dimensiones caja seccionador 25A Serie SQ Giovenzana
