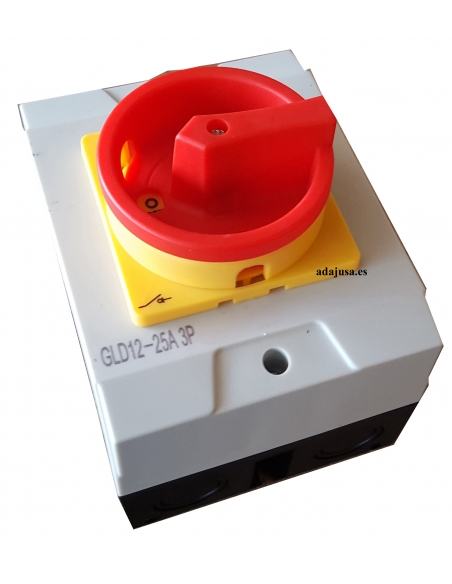

Box with three-phase switch 25A (4 poles) yellow-red control
Box with three-phase switch 25A (4 poles) yellow-red control

Box with three-phase switch 25A (4 poles) yellow-red control

€26.89 Tax included

€22.22 tax excl.

Three-pole main disconnector rotary switch (4 poles) 25 A. Mounted in polycarbonate box, with yellow-red drive lockable in position O. Protection degree IP-65.

Suitable for interrupting electrical circuits as well as direct starting of motors and main switches in machines.

Reference: GLD12-25-4P

Four-pole main switch diagram

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Out of stock

No queries yet, leave the first!


Box with four-pole rotary switch (4 Poles) 25 A. for inductive loads (electric motors) and general control. Yellow-red drive, lockable in "O" position.

Continuity terminals for ground and neutral. The box can only be opened with the switch in position "O".



The supply includes:

  • Polycarbonate Box .
  • Three-phase switch.



Characteristics:

  • Manufacturer/Supplier: Denor
  • Ref: GLD12-25-4P
  • Rated voltage Ue: 660V.
  • Rated current Ie (AC21A): 25A.
  • number of poles: 3.
  • Nominal power (AC3): 7.5Kw 400Vac III.
  • Number of maneuvers / hours: 50.
  • Mechanical durability: 10,000 maneuvers.
  • Standards: IEC60947-3, CE.
  • Case material: Polycarbonate.
  • Protection degree: IP65.
  • Box dimensions:
  • Input size: M20.

Material for professional use, install in compliance with the regulations in force at the installation site.
