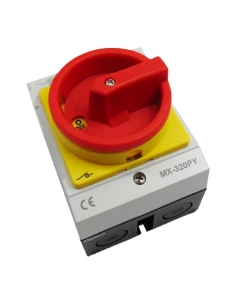

Box with three-phase switch 20A yellow-red control
Box with three-phase switch 63A yellow-red control
Box with three-phase switch 63A yellow-red control
Box with three-phase switch 63A yellow-red control
Box with three-phase switch 63A yellow-red control
Box with three-phase switch 20A yellow-red control
Box with three-phase switch 63A yellow-red control
Box with three-phase switch 63A yellow-red control
Box with three-phase switch 63A yellow-red control
Box with three-phase switch 63A yellow-red control

Box with three-phase switch 63A yellow-red control

€136.19 Tax included

€112.55 tax excl.

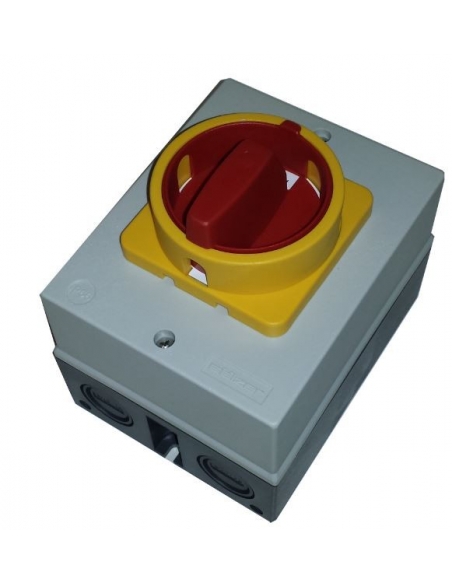

Three-phase main disconnector switch 63 A. mounted on polycarbonate box, with yellow-red drive lockable in position O.

Suitable for interruption of electrical circuits as well as direct start of motors and main switch in machines.

esquema electrico interruptor trifasico

Representative image for illustrative purposes, the item supplied will correspond to the indicated

No queries yet, leave the first!

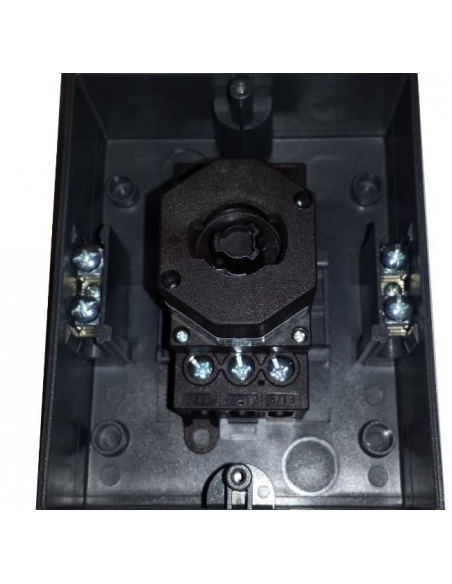

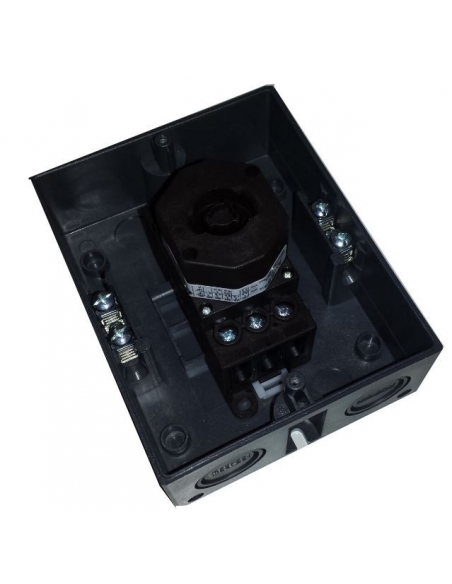

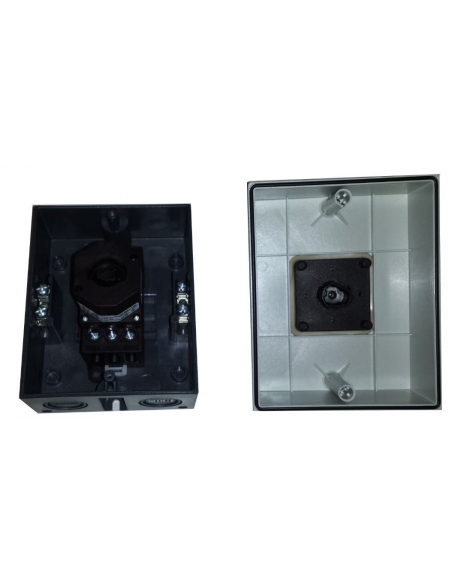

Box with three-phase rotary switch 63A. for inductive loads (electric motors) and general control. Yellow-red drive, lockable in position O.

Features:

  • Manufacturer: Salzer.
  • Manufacturer's Reference: B263-41300-710M4.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 63A.
  • Nominal interrupt capacity: 15 kA.
  • Number of manoeuvres / hours: 50.
  • Mechanical durability: 100,000 maneuvers.
  • Standards: IEC60947; IEC60204; UL508 CSA 22.2 No14
  • Box material: Polycarbonate.
  • Degree of protection: IP66.
  • Box dimensions: 175x115x100.
  • Number of inputs: 4.
  • Thread for inputs: M20.

Dimensiones_caja_interruptor_175x115x100

Material for professional use, install in compliance with the regulations in force at the installation site.
