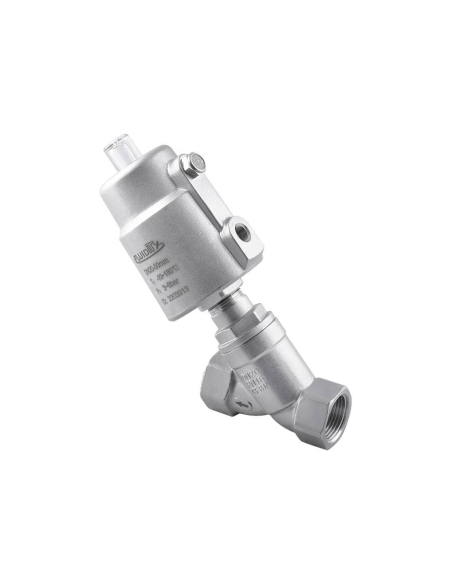

Angled seat valve 3/8 NC actuator in INOX - Aignep
Angled seat valve 3/8 NC actuator in INOX - Aignep

Angled seat valve 3/8 NC actuator in INOX - Aignep

€113.32 Tax included

€93.65 tax excl.

Normally closed (NC) simple acting inclined seat valve with 3/8 thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is made of AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the "Y" shaped body increases flow by 30% and increases the useful life cycle of the valve.

Reference: X1Y0410400


Screenshot 2024-02-08 115649

ATEX logo inclined seat valve

Aignep logo
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Normally closed (NC) simple acting inclined seat valve with 3/8 thread. The actuator body is made of AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position. This series of inclined seat valves guarantee high flow, low friction and prevent water hammer thanks to the fluid entry under the shutter .
Due to the materials used in their manufacturing, these valves can be used in multiple applications. The self-adjusting and self-lubricated shaft reduces maintenance needs to a minimum.

Technical characteristics:
  • Manufacturer: Aignep
  • Reference: X1Y0410400
  • Thread: 3/8"
  • Function: 2/2 NC
  • Type of action: Simple effect
  • Pilot pressure: 3-8 bar
  • Ambient temperature: -10ºC .. +60ºC
  • Working pressure: 16 bar
  • Gasket material: PTFE
  • Fluid temperature: -10ºC .. +180ºC
  • Pilot fluid type: Air and inert gas
  • Nominal diameter (DN): 10mm
  • Hole diameter: 13mm
  • Viscosity (cSt): 600
  • kv: 3.9 m3/h
  • Pressure differential: 13 bar maximum (*)
  • actuator diameter: 40mm
  • Pilot pressure: >= 4 bar
(*) With steam, the maximum differential between the inlet and outlet pressure is reduced to 10 bar .
INOX adajusa aignep inclined seat actuator valve dimensions

Angled seat valve exploded view Adajusa
Angle seat valve Adajusa operation
For more information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the installation site.
