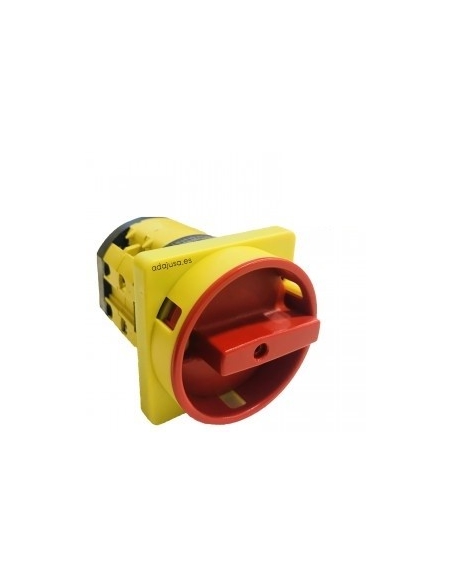

3-pole cam switch 40a 67x67mm yellow-red plate - Giovenzana adajusa
3-pole cam switch 40a 67x67mm yellow-red plate - Giovenzana adajusa

Cam switch 3-pole 40a 67x67mm yellow-red - Giovenzana

€24.19 Tax included

€19.99 tax excl.

Cam rotary switch, three-phase main switch 40a., rotary knob 90º 0-1. Yellow front plate with red knob, 67x67mm front plate dimensions, possibility of locking. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

reference: GI4003E67R
Esquema interruptor seccionador trifasico

Giovenzana
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!


Three-phase cam 40a for inductive loads (Electric motors) and general control. Rotary control 90º two positions 0-1. 67x67mm front plate, with yellow color with red knob. Possibility of locking.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.

Supply includes:

  • Three-phase switch: C0400003R
  • Front plate: 010/0001

Supply does not include padlocks.

characteristics:

  • Brand: Giovenzana
  • Switch reference: C0400003R
  • Front plate reference: 010/0001
  • number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 40a.
  • Nominal interrupt capacity: 10kA.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection:
  • Type 1-4-4X controls: IP-65.
  • Lever-only controls: IP-40.
  • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Table of intensities and powers of use:

  • AC-21A Usage Category: 40a.
  • AC-22A Usage Category: 40a.
  • AC-23A Usage Category:
  • Standard single-phase motors 230Vac: 35A - 6.5kW.
  • Standard three-phase motors 230Vac: 35A - 11kW.
  • Standard three-phase 400Vac motors: 32A - 18.5kW.
  • AC-3 Usage Category:
  • Standard single-phase motors 230Vac: 30A - 5.5kW.
  • Standard three-phase motors 230Vac: 27A - 9kW.
  • Standard three-phase motors 400VAc: 27A - 15kW.
  • Use category DC-21A (dc current):
  • Small overload 50V (1 phase): 32A.
  • Use category DC-22A (dc current):
  • 30V mixed load (1 phase): 25a.
