Switch for 125A motor (30kW - 40HP)
Switch for 125A motor (30kW - 40HP)

Switch for 125A motor (30kW - 40HP)

€53.00 Tax included

€43.09 tax excl.

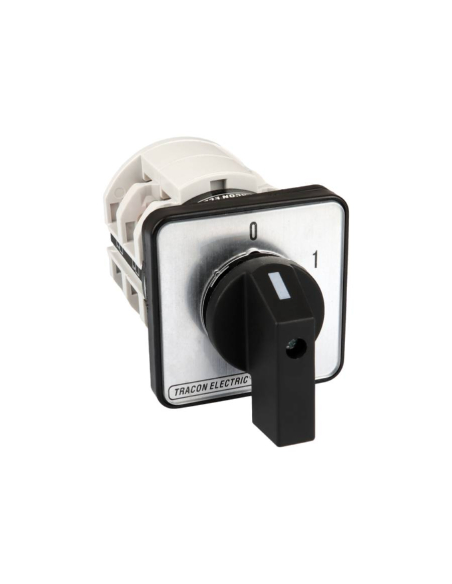

Changeover switch 125A  for electric motors, 60º rotary control with two positions 0-1. Allows starting and stopping a three-phase electric motor. Front plate size 88x88mm in grey and handle in black.

Engine power 40HP (30kW) with 400Vac voltage.


Reference: TKM-12/Q



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase 3-pole 125A cam switch for 40HP (30kW) electric motors. 60º rotary control with two positions 0-1, allows starting and stopping a three-phase electric motor. 88x88mm plate in grey colour and black handle.

This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.







Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TKM-12/Q
  • Number of poles: 3
  • Supply voltage: 380-420V
  • Rated insulation voltage: 690V
  • Nominal intensity: 125A
  • Number of maneuvers / hours: 30
  • Mechanical durability: 150,000 maneuvers
  • Electrical durability: 100,000 operations
  • Ambient temperature: -5 to +55ºC
  • Protection class: IP42



Table of intensities and powers of use:

  • AC-21A 400V usage category: 100A
  • AC-22A 400V usage category: 100A
  • AC-23A 400V usage category: 90A
  • AC-2 400V usage category: 90A
  • AC3 400V usage category: 75A
  • AC-4 400V usage category: 30A
  • Assigned power category AC-23A 400V: 45kW
  • Assigned power category AC-2A 400V: 45kW
  • Assigned power category AC-3A 400V: 30kW
  • Assigned power category AC-4A 400V: 12kW







L=84mm; A = 84mm; a =88mm; b = 88mm; d=68mm






Professional use material, install in compliance with the regulations in force at the place of installation.
