Emergency stop pushbutton diameter 40 mm
Emergency stop pushbutton diameter 40 mm

Full-size screen stop pushbutton 60 mm

€3.00 Tax included

€2.48 tax excl.

Screen stop button in plastic material, diameter 60 mm with interlocking, debloquo per turn, 1 closed contact (NC).

The supply includes the complete pushbutton with a closed contact.

Ref: XB2-ES642

Esquema electrico pulsador de emergencia

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns

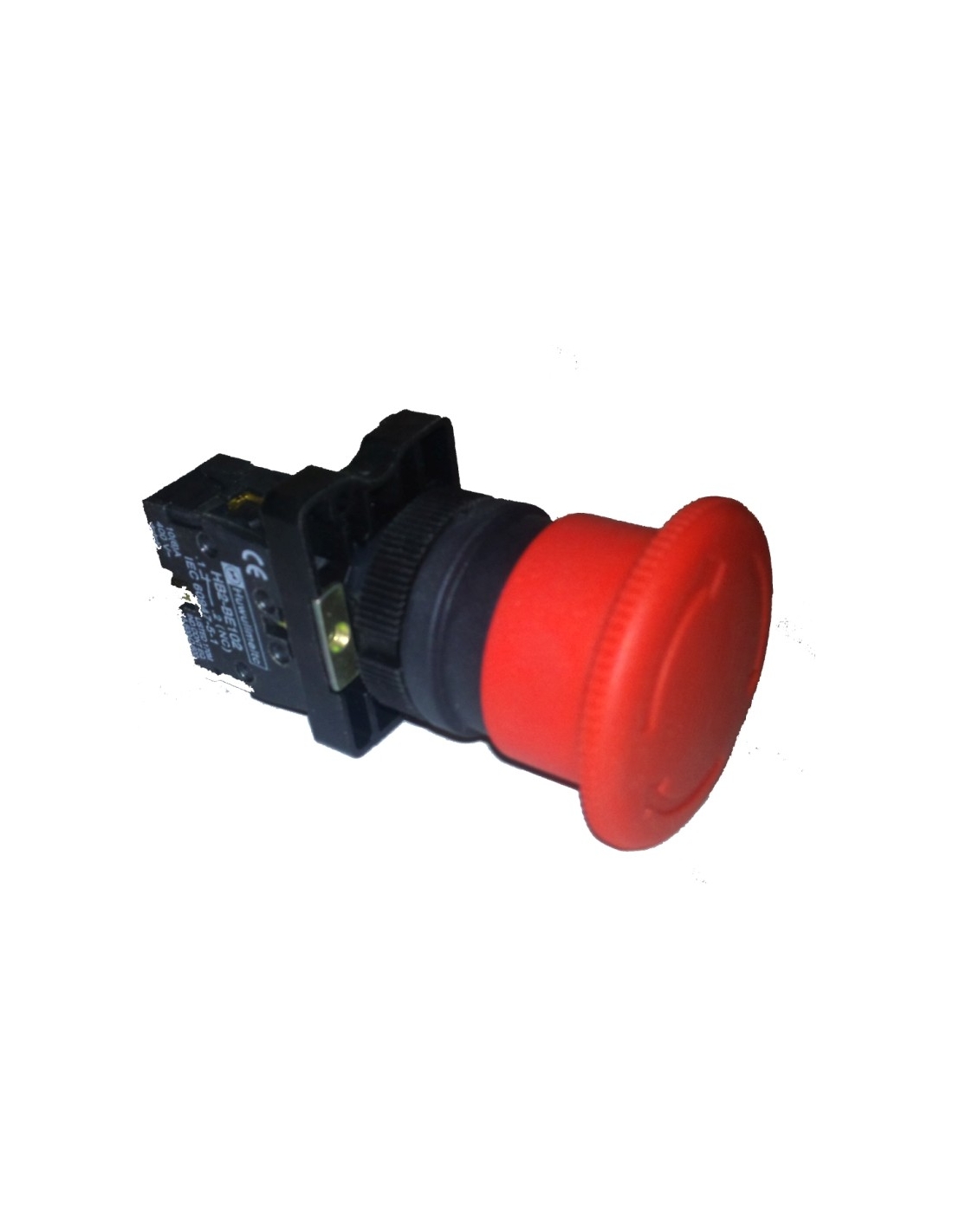

Stop button type mushroom-head diameter 60mm with interlocking, unlocking by turn, 1 nc (NC). Possibility to add additional contacts.

The supply includes the full pushbutton with a nc.

characteristics:

  • Manufacturer/Supplier: Denor
  • Equivalent reference: XB2-ES642.
  • diameter of the mushroom-head: 60mm.
  • Unlock mode: by turn.
  • Material: Plastic.
  • Contact: 1 nc (NC). (possibility to mount additional contacts).
  • Hole diameter: 22mm.
  • Nominal working intensity (Ith): 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 mOhm.
  • Degree of protection: IP65 (Mounted from the front).

This pushbutton can receive additional contacts, type HB2. At most 4 contacts can be installed.

Material for professional use, install respecting the regulations in force at the place of installation.
