Emergency stop head diameter 30 (push-turn) Harmony XB4 - SCHNEIDER

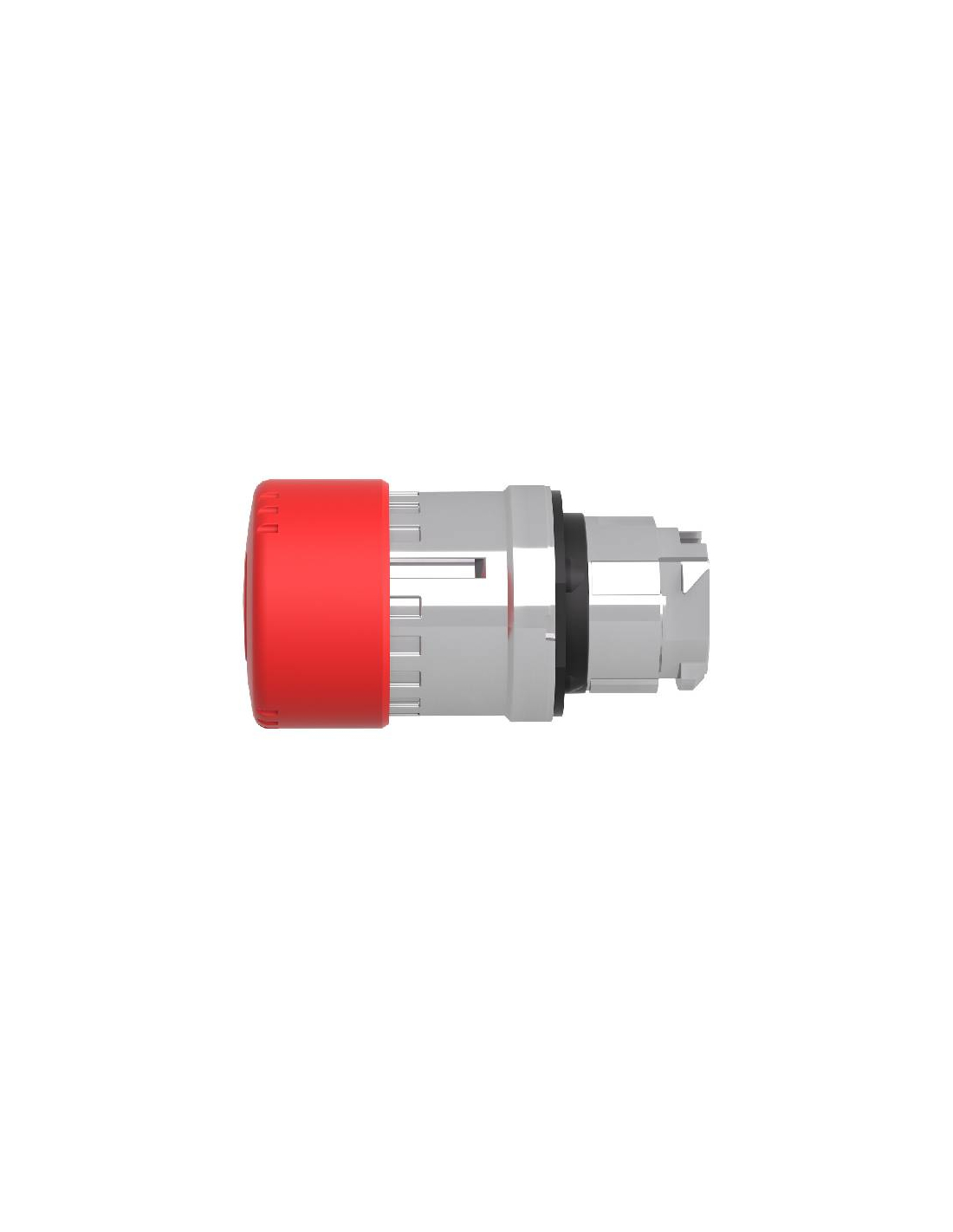

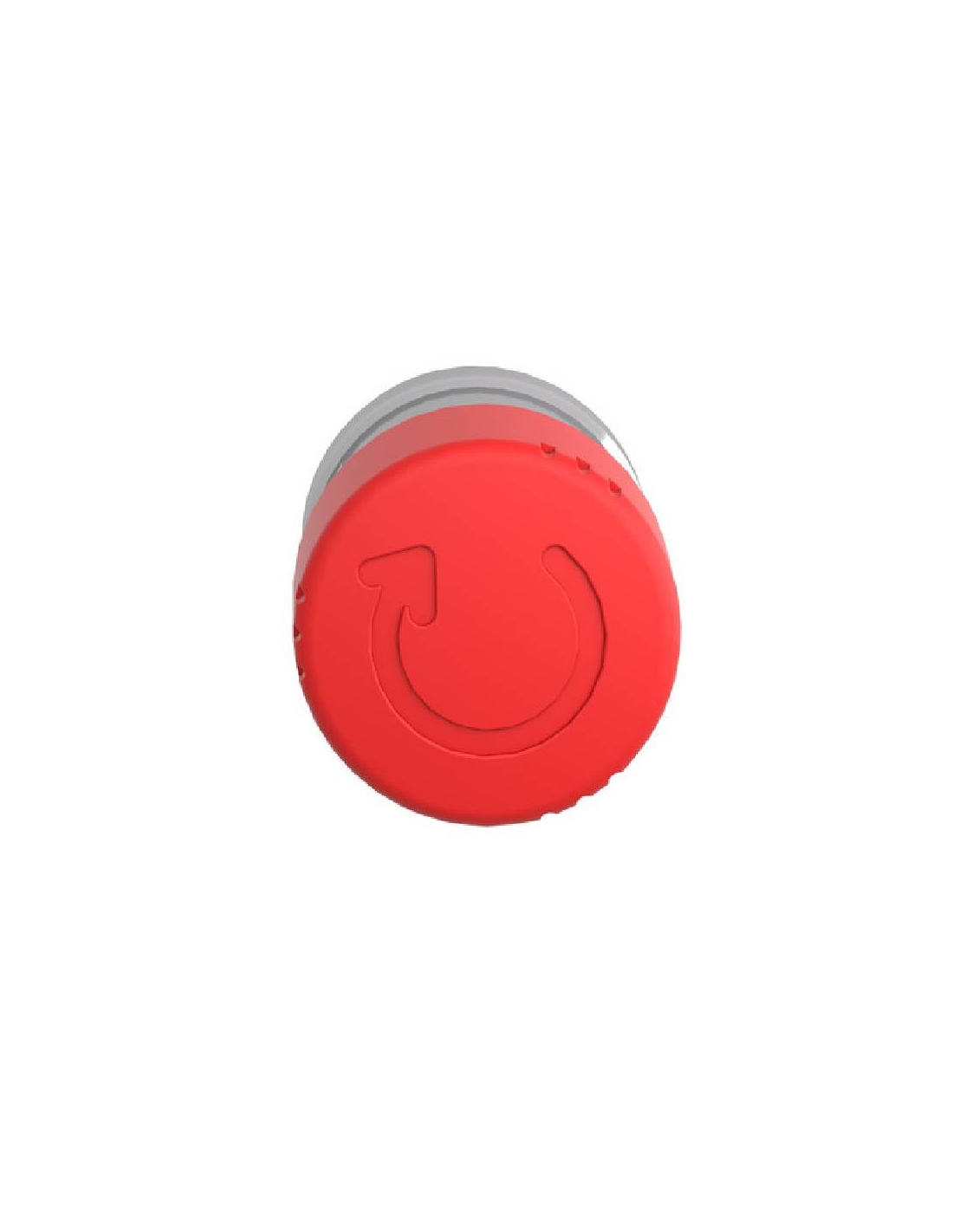

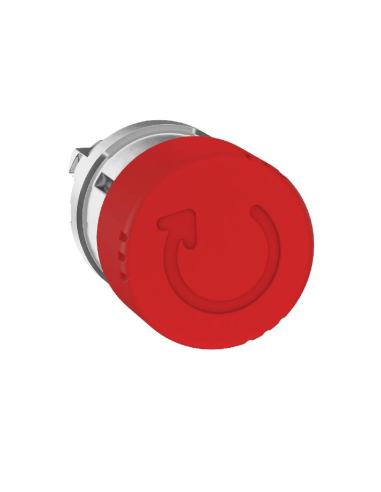

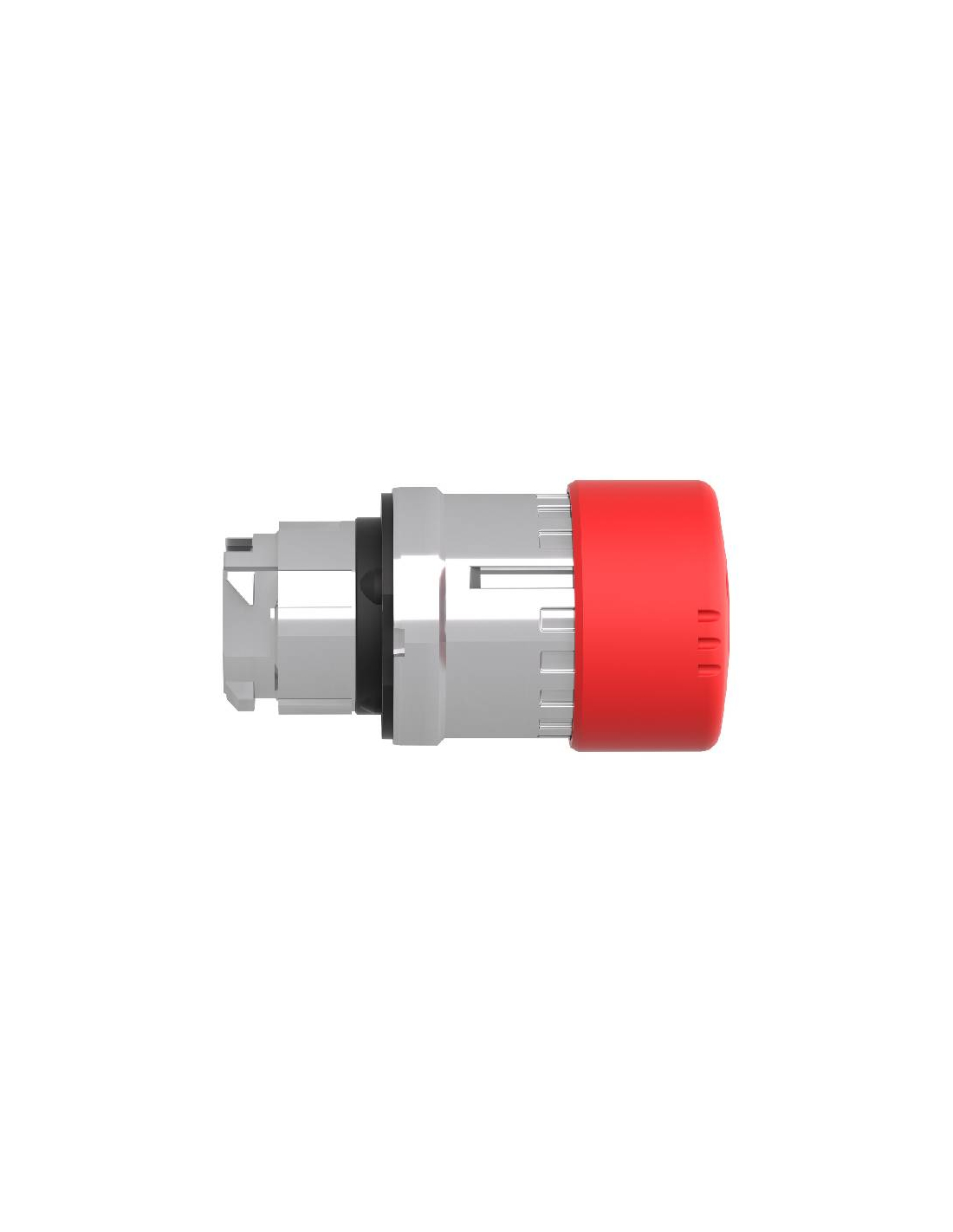

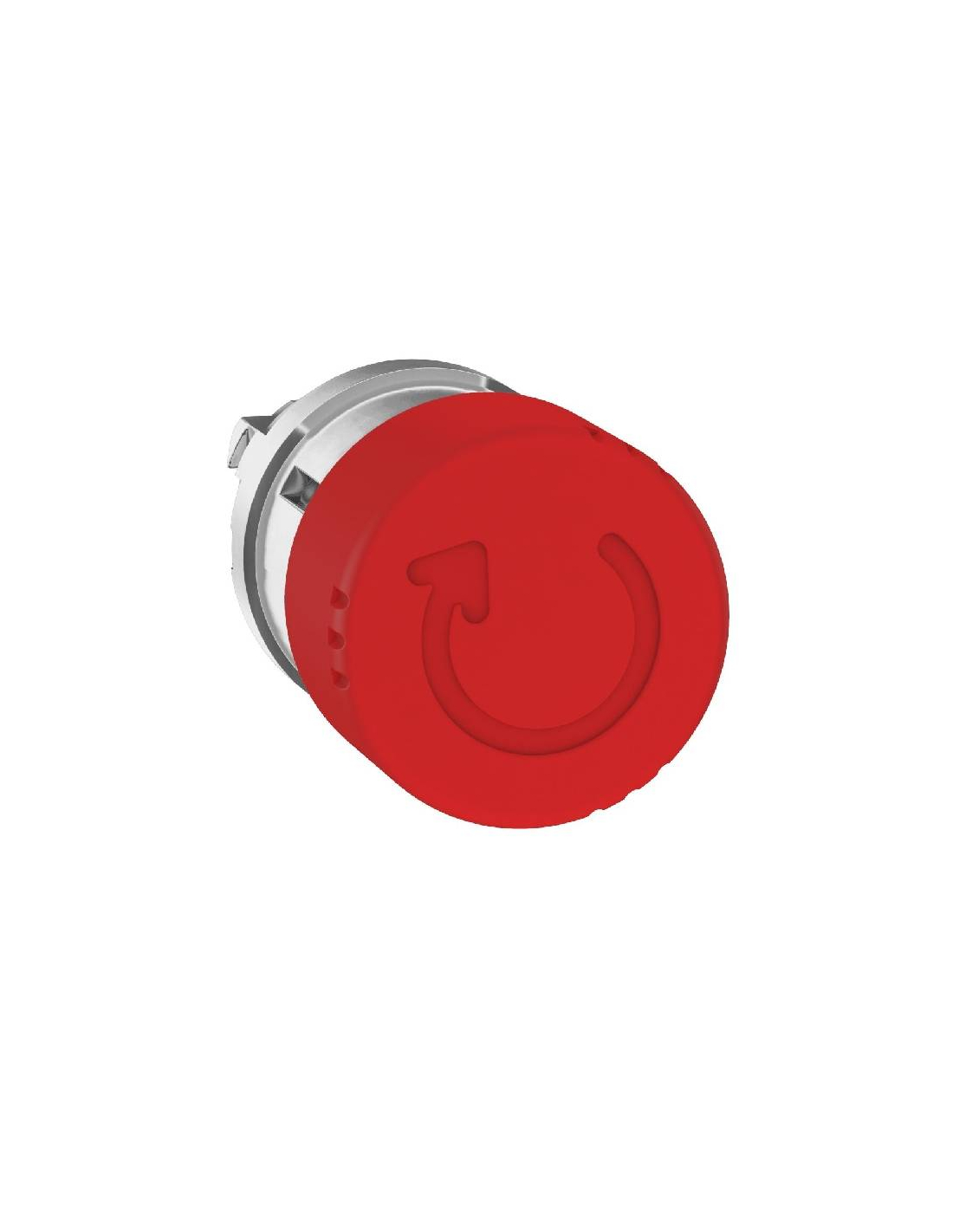

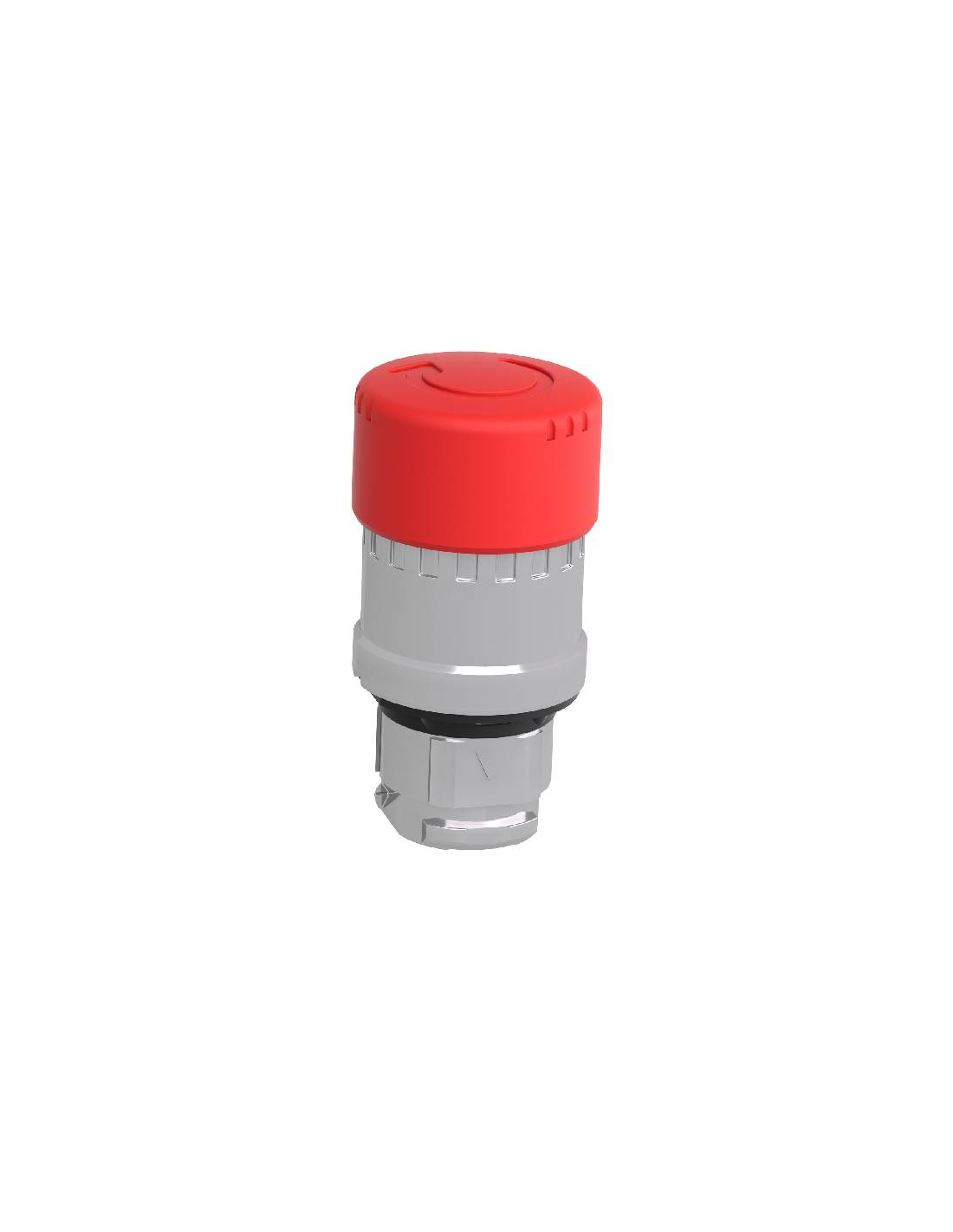

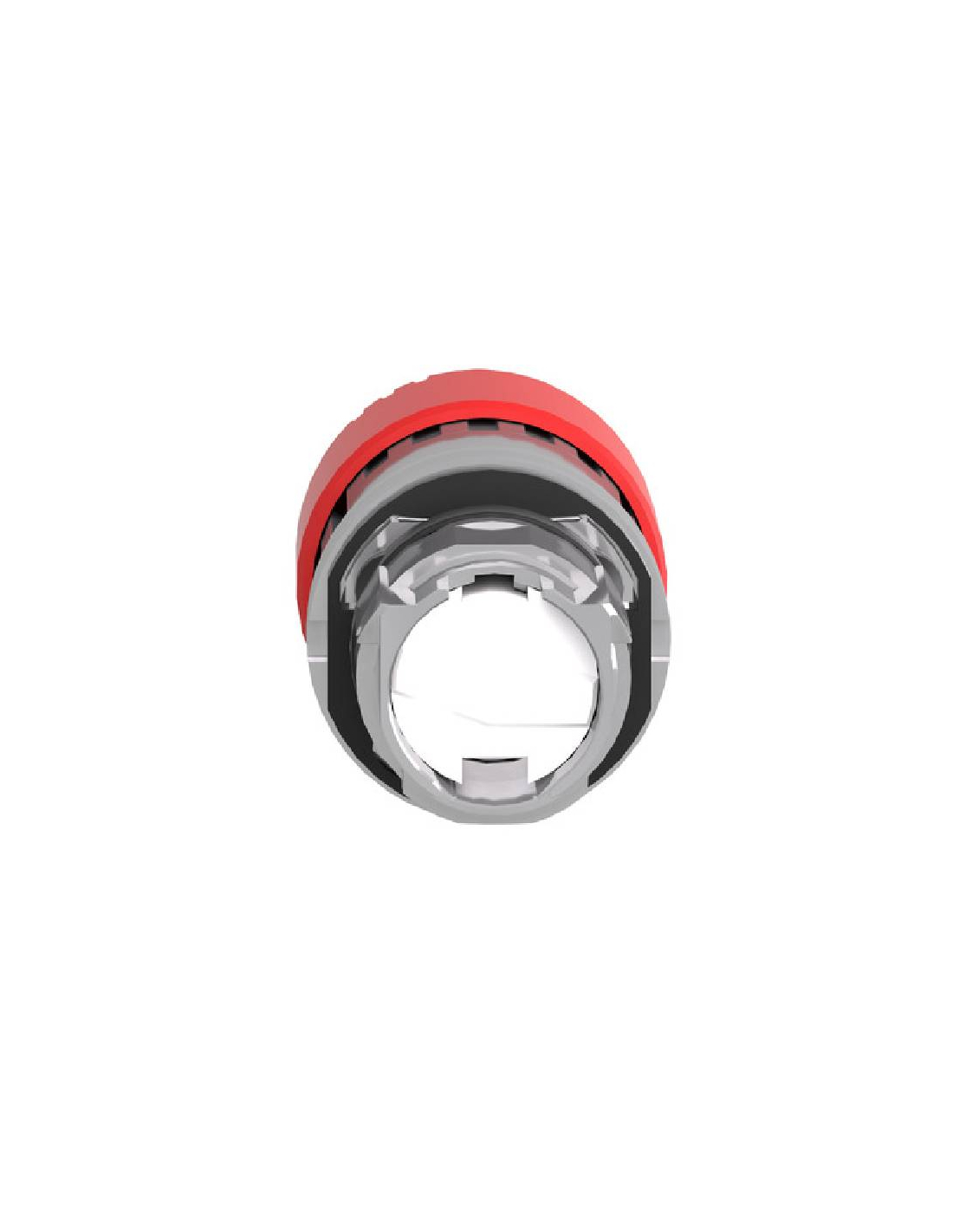

Emergency stop/off mushroom head, 30 mm diameter red mushroom with push-turn mechanism, interlocking mechanical twist to unlock. Metal body with silver chrome-plated bezel. Easily installed in standard 22 mm diameter die-cuts, it features an ergonomic interface for machine and process control.

Its design is highly resistant to impact, dust, water and vibration thanks to its IP66 degree of protection, making it suitable for operation in harsh environments. Its chrome-plated bezel makes it ideal for applications requiring good chemical resistance or double electrical isolation. It is clearly distinguishable from a distance thanks to its light color and striking 30 mm mushroom shape.


Conforms to EN/IEC 60204-1, 60364-5-53, EN/ISO 13850 and the Machinery Directive 2006/42/EC.

No contacts are included in the scope of delivery, these must be purchased separately.

Characteristics:

• Manufacturer: SCHNEIDER
• Part number: ZB4BS834
• HARMONY XB4 SERIES
• Operator profile: Red Mushroom 30 mm, without marking
• Operator type: Trigger action and mechanical interlocking
• Reset: Turn to unlock
• Mounting diameter: 22mm
• Mechanical durability: 300000 cycles
• Operating temperature: -40...70C
• Protection category against electric shock : Class I according to IEC 61140
• IP degree of protection: IP66 according to IEC 60529
• IK degree of protection: IK06 according to IEC 50102

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
