• Pack
Box with mushroom stop button with complete key...

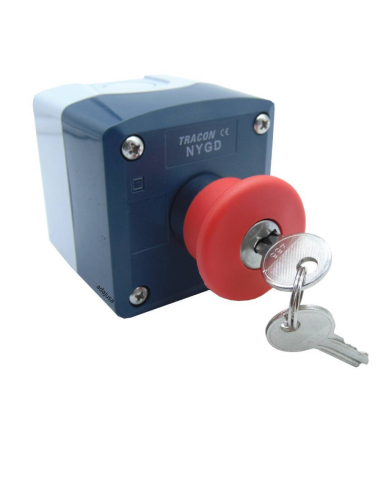

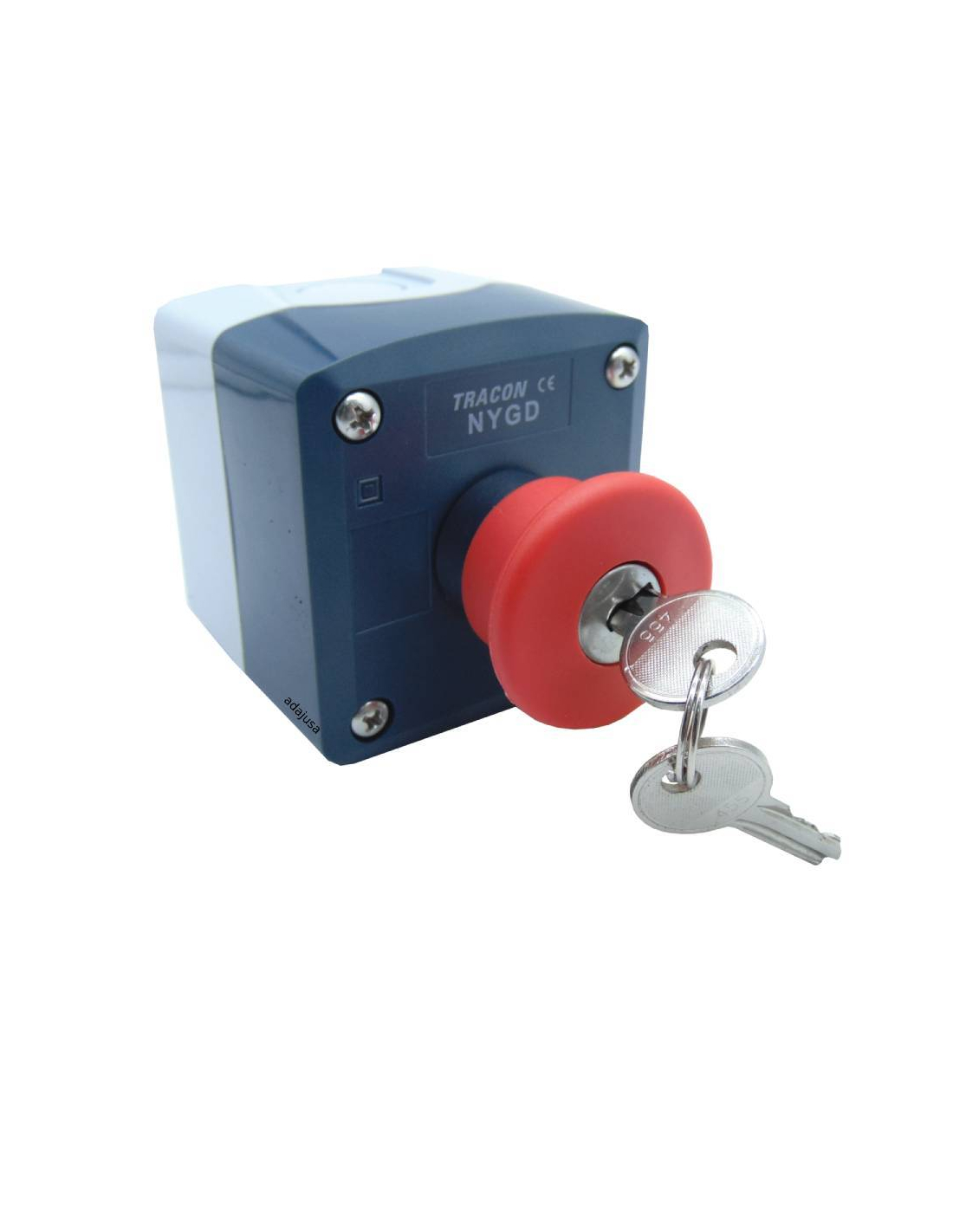

Box with mushroom stop button with complete key - NYG Series

Box with mushroom stop button with complete key - NYG Series

€9.75 Tax included

€8.06 tax excl.

Box with mushroom-type stop button with interlocking , diameter 40mm. Red metal push button with key unlocking and a closed contact (1NC), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.


Reference: NYGBS142PT


 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with complete interlocking mushroom stop button. Red metal push button with key unlocking and a closed contact (1NC), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.

The box has space for mounting another additional contact, open or closed, on the button. The maximum number of contacts per element is 2. Includes two keys.

The dimensions of the box are: 73x71x65.5mm



The supply does not include assembly, the box and the button are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYGBS142PT
  • Push button type: Stop push button with interlocking Ø40 mm
  • Button color: Red
  • Registration: None
  • Unlock mode: By key
  • Contacts : 1 NC
  • Light gray/dark gray plastic Box
  • Drill diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Nominal working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Protection grade: IP44
  • Regulations: EN 60947-1; EN 60947-5-1


Key selector dimensions







Material for professional use, install in compliance with the regulations in force at the installation site.
