Solenoid valve for home automation, fluids or process control, 1/2" threaded. Open 2-way membrane solenoid valve (NA) indirect drive, actuator diameter for 10mm coil. Pitch diameter: 12mm
Reference: 04F05212N0

Max. working pressure 9.5 bar, and pressure diff. min. 0.15 bar.

Fluids:

  • Air.
  • Inert gas.
  • Water (max. 75ºC).
  • Mineral oils.
  • Fuel oils.

Esquema electroválvula 2 vias abierta

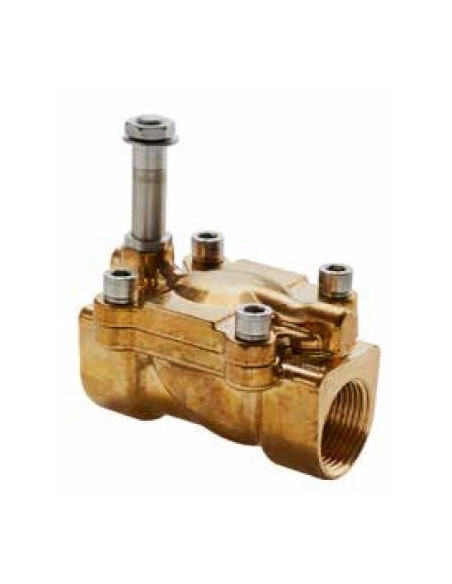

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


1/2", 2-way, normally closed (NC) membrane solenoid valve for use with fluids or air, indirectly operated. Brass body and coil control in stainless steel.

Pitch diameter: 12mm

In this type of solenoid valves, indirect drive, there must be a small pressure difference between the inlet and the outlet for it to work properly.

The working pressure ranges are:

  • Minimum pressure differential between inlet and outlet (P bar): 0.15 bar.
  • Maximum pressure differential between inlet and outlet (P bar):
    • With 22mm 6.5W coil size: 9.5 bar.
    • With coil size 22mm of 7.5VA: 9.5 bar.
    • With 30mm 8W coil size: 9.5 bar.
    • With coil size 30mm of 11VA: 9.5 bar.
  • Maximum permissible pressure: 9.5 bar.

Compatible coils for this type of solenoid valve are range SOL10 (22 mm) and SOL11 (30mm) for cores of diameter 10 (Coil not included)

The solenoid valve is normally open, i.e. without tension in the coil, the fluid or air will be passed through the solenoid valve, when the coil is put into tension the passage of the fluid or air will be interrupted.

The fluids with which this solenoid valve can work are:

  • air.
  • Inert gases.
  • Water (maximum temperature 75oC).
  • Mineral oils.
  • diesel.
  • fuel oil.

specifications:

  • Manufacturer: Aignep
  • Reference: 04F 05 2 12 N0
  • Type of control: indirect drive.
  • Thread size: 1/2".
  • Number of tracks: 2.
  • Number of positions: 2.
  • Configuration: 2/2 open (NA).
  • Operator shaft diameter (for coil): 10mm.
  • Body: Brass.
  • Guide tube, nuclei and spring: Stainless steel.
  • Gasket type: NBR.
  • Fluid type: Pressure air, water (max. 75oC), mineral oils, diesel, oil.
  • Maximum pressure: 9.5 bar.
  • ISO size 228: 1/2".
  • Step: 12mm.
  • Maximum fluid viscosity (cSt): 25.
  • Valve coefficient (Kv): 3.03 m3/h.
  • Minimum pressure differential (P bar): 0.15 bar.
  • Maximum pressure differential (P bar): 9.5.
  • Working temperature of the solenoid valve: -10oC to +80oC.
  • Fluid temperature: -10oC to +90oC.
  • Installation: Never with the coil down.

Dimensiones electroválvula para fluidos 2/2 NC accionamiento indirecto
Material for professional use, install in compliance with the regulations in force at the place of installation.
