Solenoid valve fluids 1/4 3/2 open direct drive...
Solenoid valve fluids 1/4 3/2 open direct drive D.2.5

Solenoid valve fluids 1/4 3/2 open direct drive D.2.5

€23.91 Tax included

€19.76 tax excl.

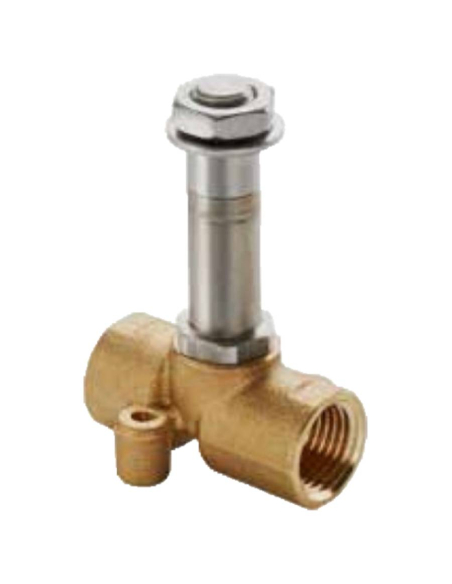

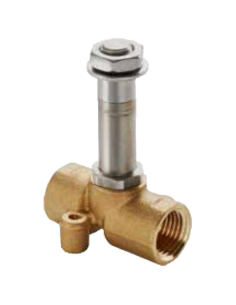

Electrovalve for home automation,fluids or process control, threaded 1/4"body in brass. Direct drive, 3-way open (NA) electrovalve, actuator Ø for 10mm coil.

Step diameter: 2.5mm. Exhaust diameter: 1.4mm

Max pressure 13.8 bar. Min pressure: 0 bar.

fluids:

  • air.
  • Inert gas.
  • Water (max. 75ºC).
  • Mineral oils.
  • Gasoleos.

Esquema neumático electroválvula 3 vías mando directoManufacturer: Aignep
Reference: 01F03425N0
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


1/4" direct drive electrovalve, 3-way, normally open (NA), for use with fluids or air, indirect drive. Brass body and stainless steel coil control.

Step diameter: 2.5mm. Exhaust diameter: 1.4mm

In this type of valves, the moving core, mounted with a sealing joint, is the one that opens and closes directly over the hole of the electrovalve. When the coil is not active, the plunger is closing the passage of the electrovalve, preventing the flow of fluids. When we give tension to the coil we create a magnetic field and make the moving core open the hole, allowing the fluid to pass through. When we stop exciting the coil, the moving core, through the spring it has, returns to the initial position.

The working pressure ranges are:

  • Minimum pressure differential between inlet and outlet (ΔP bar): 0 bar.
  • Maximum pressure differential between inlet and outlet (ΔP bar):
    • With coil size 22mm of 6.5W: 3.1 bar.
    • With coil size 22mm of 7.5VA: 5.1 bar.
    • With coil size 30mm of 8W: 9.2 bar.
    • With coil size 30mm of 11VA: 13.8 bar.
  • Maximum permissible pressure: 13.8 bar


Compatible coils for this type of electrovalve are range SOL10 (22 mm) and SOL11 (30mm) for cores of diameter 10 (Coil not included)

The electrovalve is normally closed, that is, without tension in the coil, the fluid or air will be interrupted through the electrovalve, the outlet duct is connected to the exhaust, when the coil is put into tension the passage of the fluid or air will occur.

The fluids with which this electrovalve can work are:

  • air.
  • Inert gases.
  • Water (maximum temperature 75ºC).
  • Mineral oils.
  • diesel.
  • fuel oil.

specifications:

  • Manufacturer: Aignep
  • Reference: 01F 03 4 25 N0
  • Type of control: direct drive.
  • Thread size: 1/4".
  • number of tracks: 3.
  • number of positions: 2.
  • Configuration: 3/2 open (NA).
  • Operator shaft diameter (for coil): 10mm.
  • Body: Brass.
  • Guide tube, cores and spring: Inox.
  • Type of gasket: NBR.
  • Type of fluids: Press and press on air, water (max. 75ºC), mineral oils, diesel, fuel oil.
  • Maximum pressure: 13.8 bar.
  • Iso 228 size: 1/4".
  • Ø step: 2.5mm.
  • Exhaust Ø: 1.4mm.
  • Maximum fluid viscosity (cSt): 53.
  • Valve coefficient (Kv): 0.15 m³/h.
  • Minimum pressure differential (ΔP bar): 0 bar.
  • Maximum pressure differential (ΔP bar): 13.8 bar depending on the power of the coil.
  • Working temperature of the electrovalve: -10ºC to +80ºC.
  • Fluid temperature: -10ºC to +90ºC.
