Coil for solenoid valve 220VAC 11VA Aignep | ADAJUSA
Coil for solenoid valve 220VAC 11VA Aignep | ADAJUSA

Solenoid valve coil 220VAC 11VA T30 diameter 10

€8.34 Tax included

6.78 tax excl.

SOL11220A9000

Coil for electrovalve size 30mm, voltage 220Vca., with a consumption of 11VA, for cores of Ø10mm.

Manufactured by Aignep and valid for electrovalves with 10mm actuator core.


Reference: SOL11220A9000

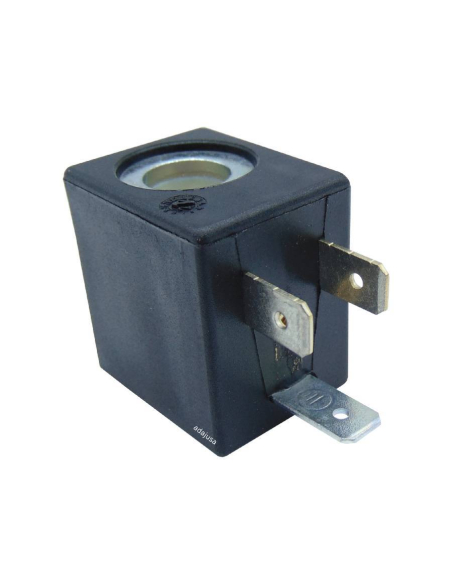

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns


Coil size 30mm for voltage of 220VAC with a power of 11VA, suitable for solenoid valves with an actuator core diameter of 10mm.

Suitable for solenoid valves manufactured by:

  • Aignep

specifications:

  • Manufacturer: Aignep.
  • Reference: SOL11220A9000
  • Rated voltage: 220VAC.
  • Voltage tolerance: ±10%.
  • Nominal power: 11VA.
  • Core diameter: 10mm (10.2mm).
  • Size: 30mm DIN 43650
  • Insulation type: H CEI EN 60529.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. Max. coil at ED100%: 70oC for an ambient temperature of 20oC.

Dimensiones bobina tamaño 30 DIN 43650
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Question
Bonjour,
Je cherche une bobine pour électro-vanne à eau (normalement fermée)
Références:
43004649
230V - AC 110V-DC 5W F 100% IP 65
Diamètre pour noyau : 10 mm
Merci de me donner le modèle qui correspond pour le commander.
Cordialement.
Jean
Answer
Bonjour,

Nous envoyons un lien de bobine avec un arbre de 10 mm

https://adajusa.fr/fr/794-bobines-pour-electrovannes-axe-10mm


Toutefois, veuillez vérifier qu'il répond à vos spécifications.

Cordialement

jean on 09/26/2023 16:38:40
Question
Este solenoide es para cerrar cuando actúa? Es normalmente abierto? Cuánto sería un tiempo prudencial para estar con tensión cerrando la válvula?
Answer
Estimado cliente, las bobinas no son normalmente abiertas, o normalmente cerradas. Las bobinas son universales, son las electroválvulas las que tienen que ser normalmente abiertas o normalmente cerradas.

La electroválvula normalmente abierta, sin tensión en la bobina, el fluido o aire estará pasará a través de la electroválvula, cuando la bobina sea puesta en tensión el paso del fluido o aire se interrumpirá.

La electroválvula normalmente cerrada, sin tensión en la bobina, el fluido o aire estará interrumpido a través de la electroválvula, cuando la bobina sea puesta en tensión el paso del fluido o aire se producirá.
Jos on 03/25/2022 18:53:04
