Solenoid valve 5/3 assisted exhaust centers 230 Vac series 70 on base - Metal Work

€117.56 Tax included

€95.58 tax excl.

Solenoid valve on base plate 5/3 assisted monostable exhaust centers, series 70. With 230 Vac connector and coil

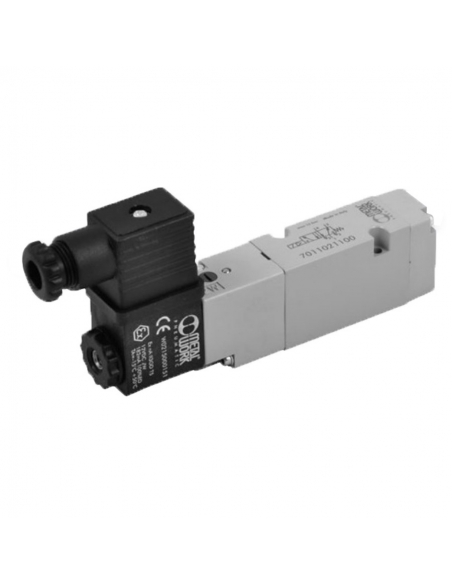

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve 5/3 moestable closed centers, series 70 on plate. With 230 Vac 3.5VA connectors and coils

The supply includes:
  • Solenoid valve 5/3 assisted monostable closed centers
  • 2 Coils 230Vac 3.5VA
  • 2 Connectors 22 mm
Features:
  • Manufacturer: Metal Work
  • Reference: 7011022500 - SOV B6 SES OC
  • Pressure (bar): Empty +/- 10
  • Minimum pressure (bar): 2.5
  • Operating temperature (ºC): -10 +/- 60
  • Nominal diameter (mm): 5
  • Conductance C (N| /min - bar): 107.69
  • Critical ratio b (bar): 0.29
  • Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
  • Flow at 6 bar ∆P 1 bar (N| /min): 450
  • Monostable TRA/TRR at 6 bar (ms): 15 / 35
  • Tension tolerate (%): -10 +/- 15
  • Insulation class: F 155
  • Maximum torque core coil (Nm): 1
  • Voltage: 220- 240 Vac
  • Power: 3.5 VA



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
