Solenoid valve 5/2 differential 110 Vac series 70 on Metal Work basis - ADAJUSA

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

Solenoid valve 5/2 differential 110 Vac series 70 on base - Metal Work

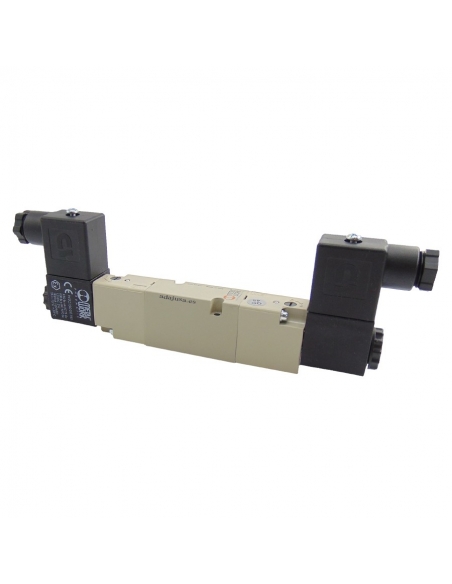

Name: Solenoid valve 5/2 differential 110 Vac series 70 on base - Metal Work
Brand: Metal Work
SKU: PK-52D110
Price: 100.3926 EUR
Availability: PreOrder

€100.39 Tax included

€81.62 tax excl.

Solenoid valve on base plate 5/2 differential series 70. With 110 Vac connector and coil

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.39

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€8.50

Pneumatic solenoid valve 5/2 bistable differential series 70 on base - Metal Work

€80.61

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve 5/2 differential series 70 on plate. With 110 Vac 3.5VA connector and coil

The supply includes:

Differential solenoid valve 5/2
2 Coils 110Vac 3.5VA
2 Connectors 22 mm

Features:

Manufacturer: Metal Work
Reference: 7011021300 - SOV B5 SOD OO
Pressure (bar): 2.5 +/- 10
Minimum pressure (bar): 2.5
Operating temperature (ºC): -10 +/- 60
Nominal diameter (mm): 5
Conductance C (N| /min - bar): 107.69
Critical ratio b (bar): 0.29
Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
Flow at 6 bar ∆P 1 bar (N| /min): 450
Monostable TRA/TRR at 6 bar (ms): 15 / 35
Tension tolerate (%): -10 +/- 15
Insulation class: F 155
Maximum torque core coil (Nm): 1
Voltage: 110 Vac
Power: 3.5 VA

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valve sheet on base

70 series solenoid valves on plate

Download (182.21KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve 5/2 differential 230 Vac series 70 on base - Metal Work

Metal Work

PK-52D230

€114.61 (€93.18 tax excl.)

Solenoid valve on base plate 5/2 differential series 70. With 230 Vac connector and coil Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 5/2 differential 24 Vac series 70 on Metal Work basis - ADAJUSA

Solenoid valve 5/2 differential 24 Vac series 70 on Metal Work basis - ADAJUSA 2

Pack

Solenoid valves on motherboard

Solenoid valve 5/2 differential 24 Vac series 70 on base - Metal Work

Metal Work

PK-52D24C

€106.11 (€86.27 tax excl.)

Solenoid valve on base plate 5/2 differential series 70. With 24 Vac connector and coil Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pack

Solenoid valves on motherboard

Solenoid valve 5/2 differential 24 Vdc series 70 on base - Metal Work

Metal Work

PK-52D24CC

€100.39 (€81.62 tax excl.)

Solenoid valve on base plate 5/2 differential series 70. With connector and coil of 24 Vdc Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.
