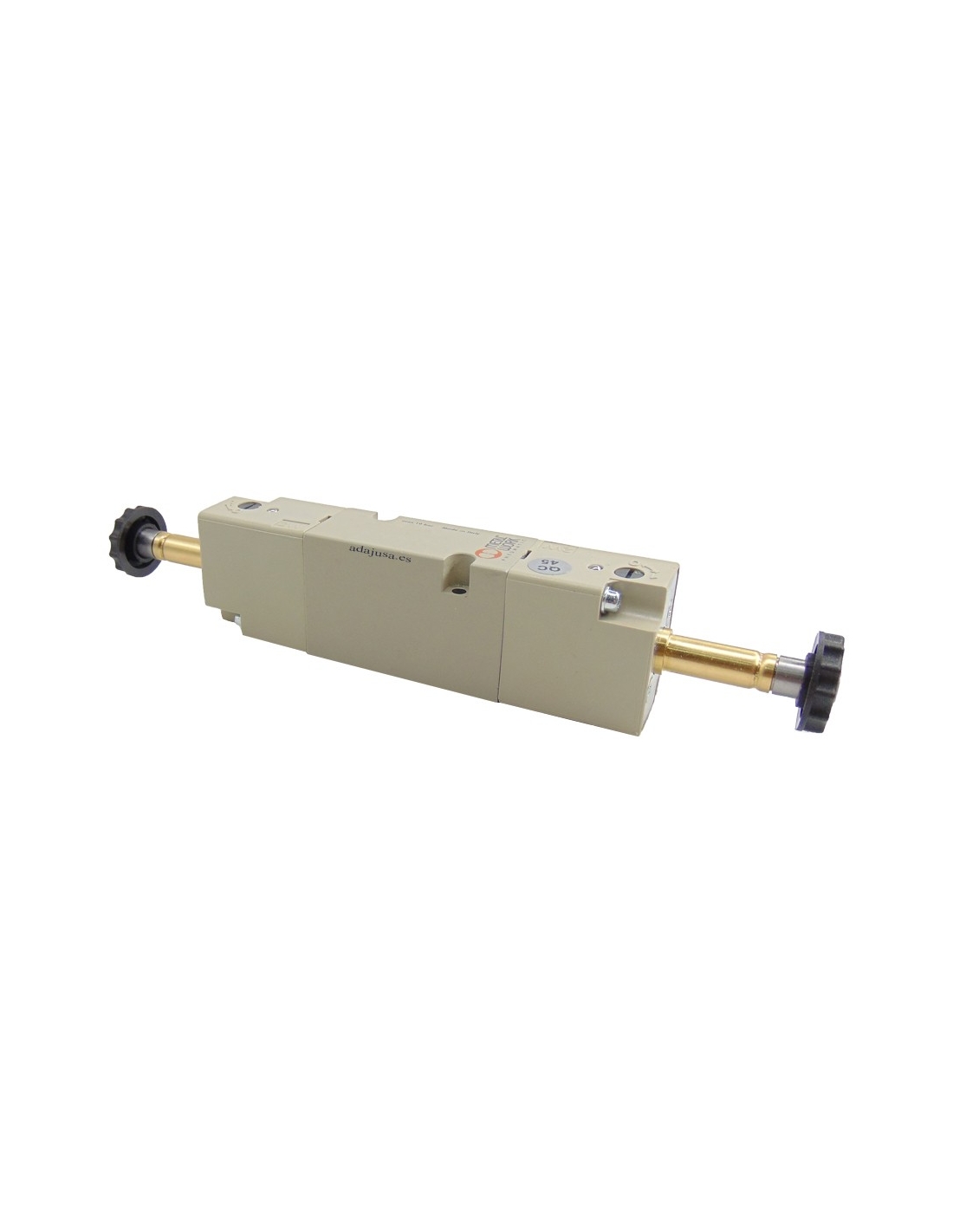

Pneumatic solenoid valve 5/2 bistable differential series 70 on base - Metal Work

€88.78 Tax included

€72.18 tax excl.

7011021300

Solenoid valve on base plate 5/2 bistable differential series 70. Connector and coil not included.

Reference: 7011021300

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Pneumatic solenoid valve 5/2 bistable differential series 70 on plate. Connectors and coils not included.

Characteristics:

Manufacturer: Metal Work
Reference: 7011021300 - SOV B5 SOD OO
Pressure (bar): 1 +/- 10
Minimum pressure (bar): 2.5
Operating temperature (ºC): -10 +/- 60
Nominal diameter (mm): 5
Conductance C (N| /min - bar): 107.69
Critical ratio b (bar): 0.29
Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
Flow at 6 bar ∆P 1 bar (N| /min): 450
Monostable TRA/TRR at 6 bar (ms): 15 / 35
Tension tolerate (%): -10 +/- 15
Insulation class: F 155
Maximum torque core coil (Nm): 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valve sheet on base

70 series solenoid valves on plate

Download (182.21KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

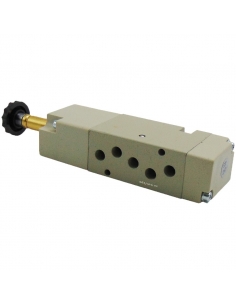

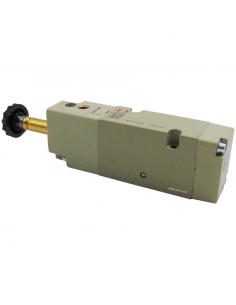

Pneumatic solenoid valve 5/2 monostable series 70 on Metal Work basis - ADAJUSA
