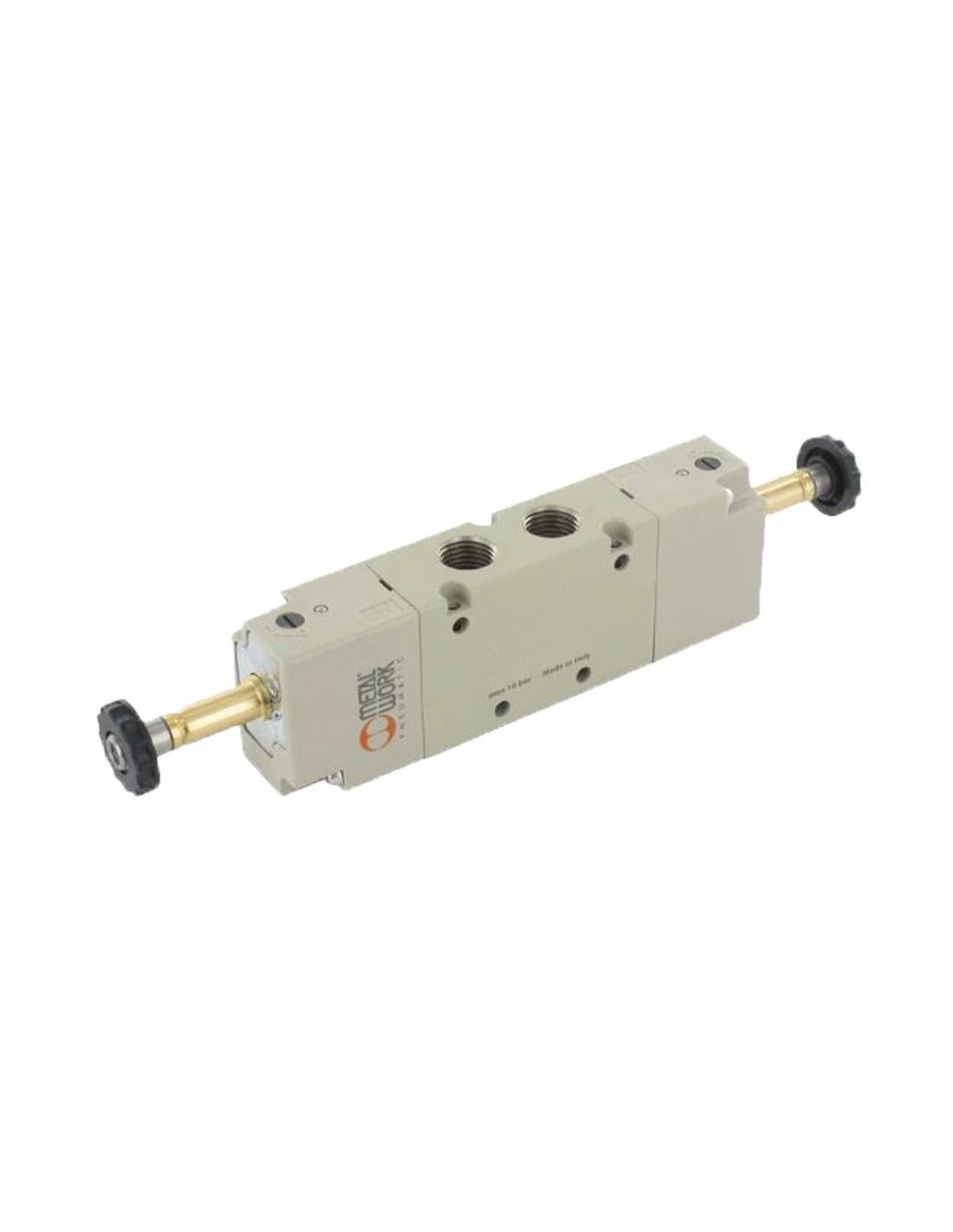

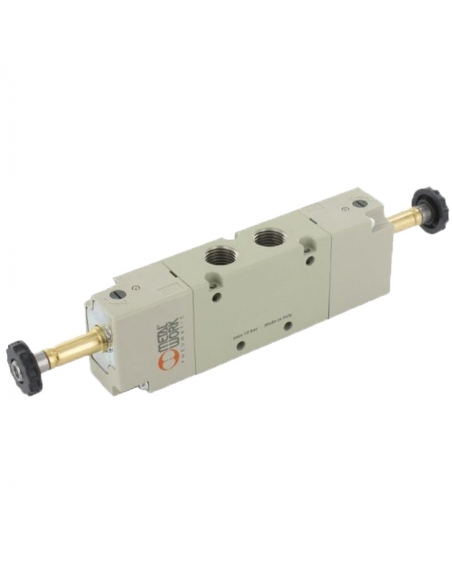

Double solenoid valve 1/8 3/2 assisted tracks NO - Metal Work

Double 1/8" 3/2 way NOpneumatic assisted doublesolenoid valve. The solenoid valve is normally open, that is to say, without tension in the coil, the fluid or air will be passing through the solenoid valve , when the coil is put in tension the passage of the fluid or air will be interrupted. As it has an independent pressure inlet for the pilot (assisted), it can be used from 0 bar of pressure at the inlet.

Coil and connector not included.

Technical characteristics:

• Manufacturer Metal Work
• Part number: SOV 28 SES NO Code: 7010023500
• Thread type: G 1/8"
• Bistable bar: Vacuum ÷ 10
• Minimum assistance pressure bar: 2.5
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min - bar: 121,43
• Critical ratio b bar/bar: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• TRA/TRR monostable at 6 bar ms: 15/35
• TRA/TRR bistable at 6 bar ms: 20/20
• Voltage tolerances %: -10 ÷ +15
• Class of isolation: F 155

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
