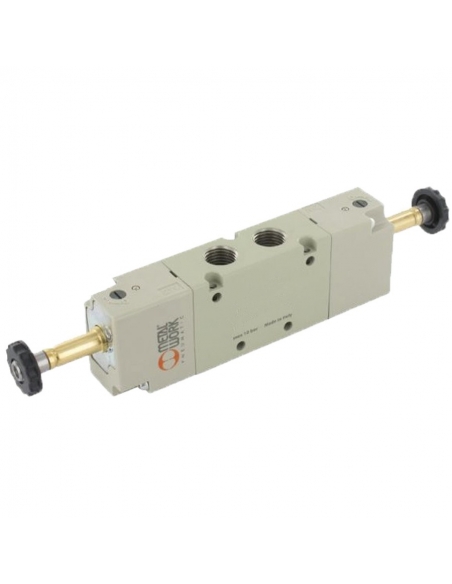

Double solenoid valve 1/4 3/2 assisted pathways NC-NO 230Vac - Metal Work

€133.73 Tax included

€110.52 tax excl.

Solenoid valve 1/4 3/2 way double assisted output. One NC input (normally closed) and the other NO input (normally open). With 230Vac connectors and coil


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Double pneumatic solenoid valve 1/4" 3/2 way NC-NO assisted. One inlet is normally closed, with coil voltage will not pass through the solenoid valve , when the coil is not energized the passage of fluid or air will be interrupted and the other inlet is normally open, i.e. without voltage on the coil, the fluid or air will be passing through the solenoid valve , when the coil is energized the passage of fluid or air will be interrupted.

The scope of supply includes:
  • Double solenoid valve 1/4" 3/2 assisted NC-NO
  • 2 Coils 230 Vac 3,5VA
  • 2 Connectors T22

Technical characteristics:

      • Manufacturer Metal Work
      • Part number: Metal Work: SOV 38 SES NC Code: 7020023600
      • Type of threads: G 1/4
      • Bistable bar: 2.5 ÷ 10
      • Minimum assistance pressure bar: 2.5
      • Operating temperature °C: -10 ÷ +60
      • Nominal diameter mm: 7.5
      • Conductance C Nl/min - bar: 264.26
      • Critical ratio b bar/bar: 0.27
      • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
      • Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
      • TRA/TRR monostable at 6 bar ms: 19/45
      • TRA/TRR bistable at 6 bar ms: 21/21
      • Tension tolerances %: -10 ÷ +15
      • Class of isolation: F 155
      • Voltage: 220 - 240 Vac
      • Power: 3,50 VA

    Equipment for professional use, install in compliance with the regulations in force at the place of installation.
