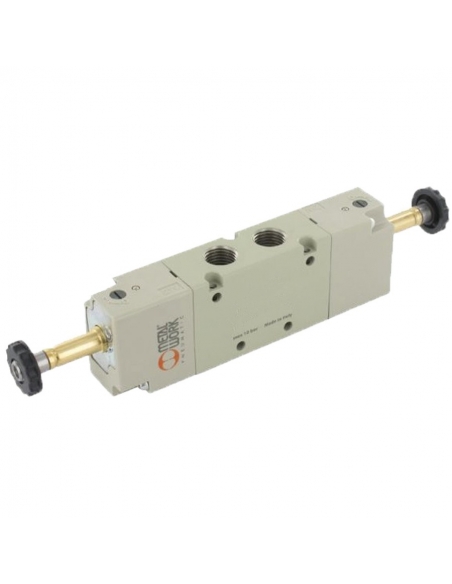

Double solenoid valve 1/4 3/2 ways NO - Metal Work

Name: Double solenoid valve 1/4 3/2 ways NO - Metal Work
Brand: Metal Work
SKU: 7020023200
Price: 114.85 EUR
Availability: BackOrder

€114.85 Tax included

93.37 tax excl.

7020023200

Solenoid valve 1/4 3/2 way double outlet NO (normally open). Coils not included

Reference: 7020023200

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Doublepneumatic solenoid valve 1/4" 3/2 way NO. The solenoid valve is normally open, i.e. without voltage on the coil, the fluid or air will be passing through the solenoid valve , when the coil is energized the passage of fluid or air will be interrupted.

Coil and connector not included.

Technical characteristics:

Manufacturer Metal Work
Part number: Metal Work: SOV 38 SOS NO Code: 7020023200
Thread type: G 1/4"
Bistable bar: 2.5 ÷ 10
Minimum assistance pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 7.5
Conductance C Nl/min - bar: 264.26
Critical ratio b bar/bar: 0.27
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
TRA/TRR monostable at 6 bar ms: 19/45
TRA/TRR bistable at 6 bar ms: 21/21
Tension tolerances %: -10 ÷ +15
Class of isolation: F 155

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
