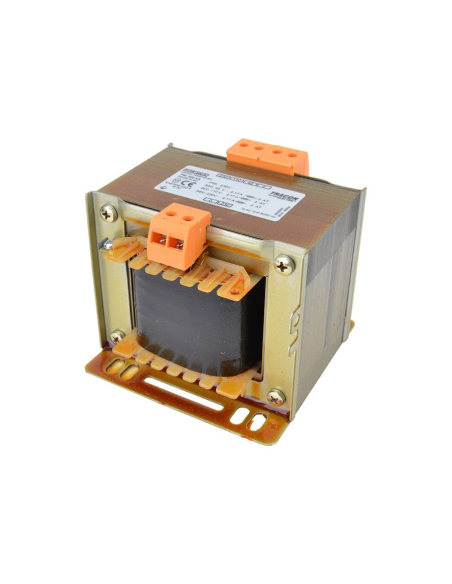

Transformer 500VA E:230V S:42-110-230V IP-00
Transformer 500VA E:230V S:42-110-230V IP-00

Transformer 500VA E:230V S:42-110-230V IP-00

€208.67 Tax included

€169.65 tax excl.

Single-phase isolation transformer for operation, command and control, as well as general uses. Input voltage 230Vac with three possible output voltages 42-110-230Vac. Nominal transformer power 500VA (*) for 230Vac output. Protection degree IP00.

(*) Power varies depending on the secondary voltage input. Power supplied depending on the output voltage: 42 V - 91.3VA / 110 V - 239.1VA / 230V - 500VA.

Reference: TVTR-500-E
Transforming symbol


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

Single-phase isolation transformer for command, operation and control, and general low voltage uses. Input voltage of 230Vac with three possible output voltages 42 -110-230Vac. The power provided by the transformer is 500VA for the output voltage of 230Vac.

The maximum output current provided is 2.17A. The nominal power of the transformer refers to the value of the highest secondary voltage, so the powers supplied vary depending on the output voltage being 42 V - 91.3VA / 110 V - 239.1VA / 230V - 500VA.

The main application of this type of transformer is for command and control in industrial automation, and for general applications. They are intended to supply electrical devices where galvanic isolation between circuits and/or voltage level adaptation is required. Protection degree IP00. Manufactured according to the requirements of EN 61558-1, EN 61558-2-1 standards.



Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TVTR-500-E
  • Transformer type: Single-phase
  • Primary voltage: 230Vac
  • Secondary voltage: 42 - 110 - 230Vac
  • Transformer nominal power: 91.3 - 239.1 - 500VA
  • Maximum intensity in the secondary (In): 2.17A
  • Frequency: 50/60 Hz
  • Protection: IP-00
  • Protection class: I
  • Terminal protection: IP20
  • Connection: Screw-faston terminals
  • Winding: copper wire
  • Heat resistance grade: E (+120ºC)
  • Weight: 6.3Kg
  • Regulations: EN61558-1, EN61558-2-1










For further information you can download the technical sheet by clicking on the "Attached Files" tab.
Professional use material, install in compliance with the regulations in force at the installation site.
