Single-phase motor 0.12Kw 0.16CV 230V 3000 rpm...
Single-phase motor 0.12Kw 0.16CV 230V 3000 rpm half starting torque, B14 flange

Single-phase motor 0.12Kw 0.16CV 230V 3000 rpm half starting torque, B14 flange

€75.53 Tax included

€62.42 tax excl.

Single-phase electric motor 0.12kW (0.16CV) 230Vac 50Hz 2 poles (3000 rpm ) B14 flange ( PAM 80/9), half starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SY-56M2-2 B14
  • Voltage: 230Vac 50Hz.
  • Power: 0.12Kw – 0.16CV
  • Type: Half starting torque.
  • Number of poles: 2.
  • Revolutions: 3000 rpm .
  • Flange: B14
  • Shaft diameter: 9mm.
  • flange diameter: 80mm
  • PAM flange: 80/9
  • Size: 56M2
  • Energy efficiency: IE1.

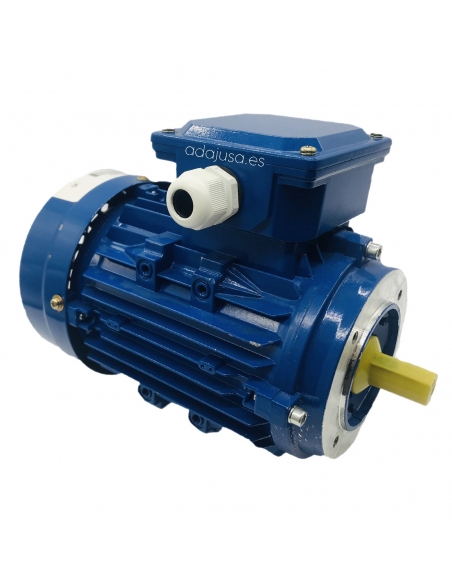

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Single-phase electric motor of 0.12kw (0.16CV) 230Vac 50Hz, 2 poles (3000 rpm ), type B14 flange and half starting torque.

Standardized single-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

By properly positioning the connection plates in the terminal box, the motor can rotate both right and left.

Characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SY-56M2-2 B14
  • Motor type: squirrel cage asynchronous.
  • Voltage: 230 Vac. 50Hz.
  • Power: 0.12 Kw (0.16CV).
  • Medium starting torque.
  • Number of poles: 2 (3000 rpm ).
  • Nominal current (In): 0.98A
  • Starting current (Ia): 4
  • Revolutions: 2760 rpm .
  • Performance: 54%
  • Power factor (Cos): 0.92
  • Maximum torque / Nominal torque (Tmax/Tn): 1.8
  • Starting torque / Rated torque (Ts/Tn): 0.5
  • Permanent capacitor: 6uF/450V
  • Service: continuous S1
  • Protection degree: IP55.
  • Fastening type: B14 flange
  • Shaft diameter: Ø9mm
  • flange diameter:80
  • PAM flange: 80/9
  • Case size : 56 (56M2)
  • Color blue.
  • Housing material : Aluminum.
  • Sound level (dB): 67.
  • Weight: 3.2 kg.
  • CE marking.
For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

B14 single-phase motor dimensions

For more information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the installation site.
