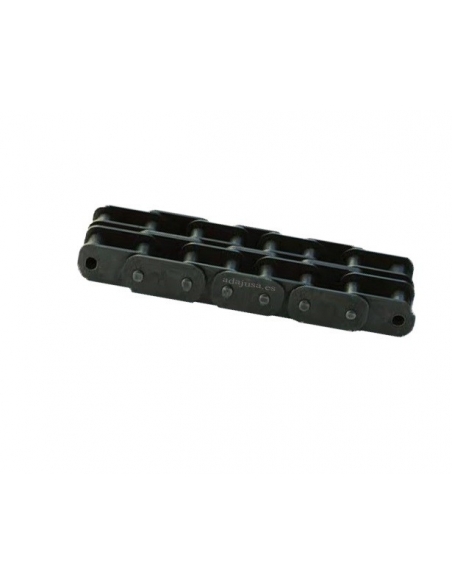

Straight double-mesh roller chain pitch 19.05 3/4 12BF-2 DIN 8187

Straight double-mesh roller chain, according to the requirements of ISO DIN 8187.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, grease, etc... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the mechanical tension transmitted.

They can be used in a wide range of industrial and general applications, engines, compressors, printing presses, conveyors, agriculture ....


Features:

• Manufacturer ISB
• Part number: 57250113
• Flat mesh
• Sold in packs of 5 meters of chain.
• Pitch (P): 19.05 mm 3/4 "
• Roller diameter (d1): 12.07 mm (max)
• Inner width (b1): 11.68 mm (min)
• Shaft diameter (d2): 5.72 mm (max)
• Joint length
  • (L): 42.00 mm (max)
  • (Lc): 44.40 mm (max)
• Mesh height (h2): 16.13 mm
• Mesh thickness: (t/T): 1.85 mm
• Cross Pitch (C) 19.46
• Minimum breaking load Kgf (min): 57.80
• Average breaking load (Q0): 66.60 kN
• Approximate weight kg/m: 2.31

(*) Under correct lubrication conditions.

Material for professional use, to be installed in compliance with the regulations in force at the place of installation

For further information you can download the technical data sheet by clicking on the "Attachments" tab
