Double pitch roller Chain 19.05 60 ANSI 12A-2 ASA 8188 - Tsubaki

€148.52 Tax included

€120.75 tax excl.

Double roller Chain according to norm ASA DIN 8188, up to 98% performance (*), very light and compact which allows it to be installed in very limited spaces.

Reference: CADE-RS ASA-60-2:TSU

Pitch: 19.05- 60-2 ANSI

Roller diameter: 11.91 mm


Price per meter. Sold exclusively by packaging of 3 meters.

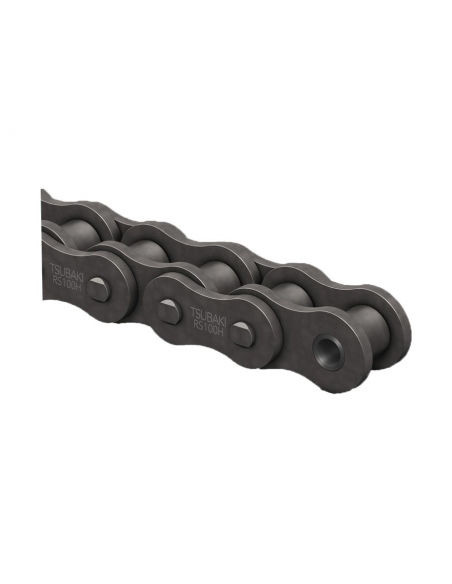

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Reinforced simple roller Chain in accordance with the requirements of the ASA DIN 8188 standard. Manufactured in Japan.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, grease, etc... Roller chains develop synchronous power transmission, without slipping, and the effectiveness of the transmission does not depend on the voltage transmitted.

They can be used in a wide range of industrial and general applications, engines, compressors, printing presses, conveyors, agriculture...


Characteristics:

  • Manufacturer: Tsubaki
  • Reference: CADE-RS ASA-60-2:TSU
  • Exclusive sale by packaging of 3 meters of chain
  • Pitch (P): 19.05mm
  • Roller diameter (d 1 ): 11.91 mm (max)
  • Internal width (b 1 ): 12.70 mm (min)
  • Shaft diameter ( d2 ): 5.96 mm (max)
  • union length (L1): 52.60 mm (max)
  • Mesh height (h 2 ): 18.10 mm
  • Width between axles (T): 2.40 mm
  • Cross pitch (pt): 22.8
  • Average breaking load (Q 0 ): 80.40 kN
  • Approximate weight: 3.04 kg/m

(*) In correct lubrication conditions.

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
