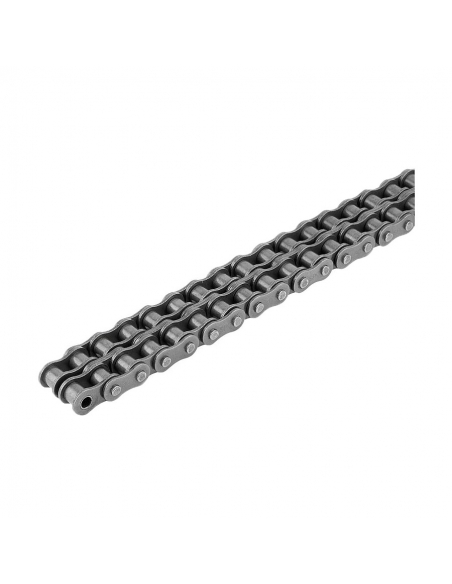

Double step roller chain 19.05 60-2 ANSI 12A-2 ASA 8188

€34.17 Tax included

€28.24 tax excl.

Chain of double standard rollers according to American standard ASA DIN 8188, up to 98% performance (*), very light and compact which allows to be installed in very limited spaces.

Reference: 57250430

Step: 19.05- 60-2 ANSI

Roller diameter: 11.91 mm


Price per meter. Sale exclusively by packaging of multiples of 5 meters.



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Roller chain according to the requirements of the ASA DIN 8188 standard.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, greases, etc ... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the transmitted voltage.

They can be used in a wide range of industrial and general applications, motors, compressors, printing presses, conveyors, agriculture....


Features:
  • Manufacturer: ISB
  • Reference: 12A-2
  • Exclusive sale for packaging of 5 meters of chain.
  • Pitch (P): 19.05 mm
  • Roller diameter (d1): 11.91 mm (max)
  • Internal width (b1): 12.57 mm (min)
  • Shaft diameter (d2): 5.94 mm (max)
  • Length of the union
    • (L): 48.80 mm (max)
    • (Lc): 51.50 mm (max)
  • Mesh height (h2): 18.08 mm
  • Mesh thickness (Pt): 22.78 mm
  • Shaft width (T): 2.44 mm
  • Minimum breaking load (Q ISO/DIN) 62.30/63.60 kN
  • Average breaking load (Q0): 82.40 kN
  • Approximate weight: 2.92 kg/m

(*) Under correct lubrication conditions.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
