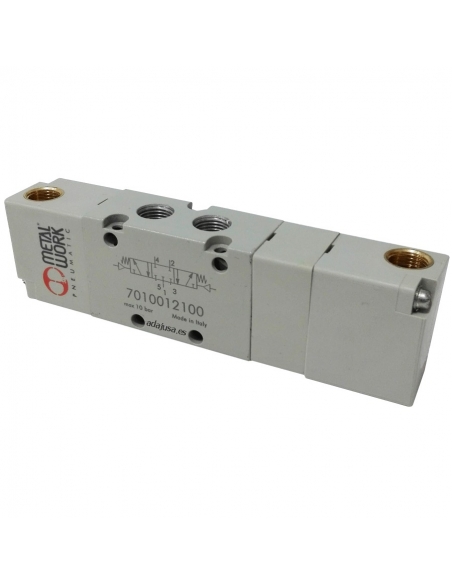

Pneumatic valve 1/8 5-way 3 positions closed centers - Metal Work

€45.72 Tax included

37.17 tax excl.

7010012100

Pneumatic valve of 1/8 5 ways 3 positions closed centers, pneumatic control, metal body. For dual-effect cylinder control.

Reference: 7010012100

Esquema neumático válvula 5/3 centros cerrados

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic valve of 1/8 5/3 closed centers, pneumatic drive. that allow to control cylinders of double effect.

The valve has 3 positions, with pressure in one pilotage, the cylinder advances, without pressure in the pilots, the cylinder stops but maintains pressure (force), and with pressure in the other pilot, the cylinder is collected.

specifications:

  • Manufacturer: Metal Work.
  • Manufacturer reference: 7010012100 - PNV26PNSCC.
  • Configuration: 5-way 3 positions, closed centers.
  • Thread type: G 1/8".
  • Type of exhaust threads and control: G 1/8".
  • number of tracks: 5.
  • Positions: 3.
  • Fluid type: Press and run air, with or without lubrication.
  • Working pressure: 0÷10 Kgr/cm².
  • Piloting pressure: 1÷10 Kgr/cm².
  • Maximum pressure: 10 Kgr/cm².
  • Effective pitch diameter: 5 mm2.
  • Flow rate at 6 bar Δp 1 bar: 550 Nl/min.
  • Working temperature: -10 to 60ºC.
  • Material: Alumio and steel.

Dimensiones válvula 1/8-5/3 Metal work

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
