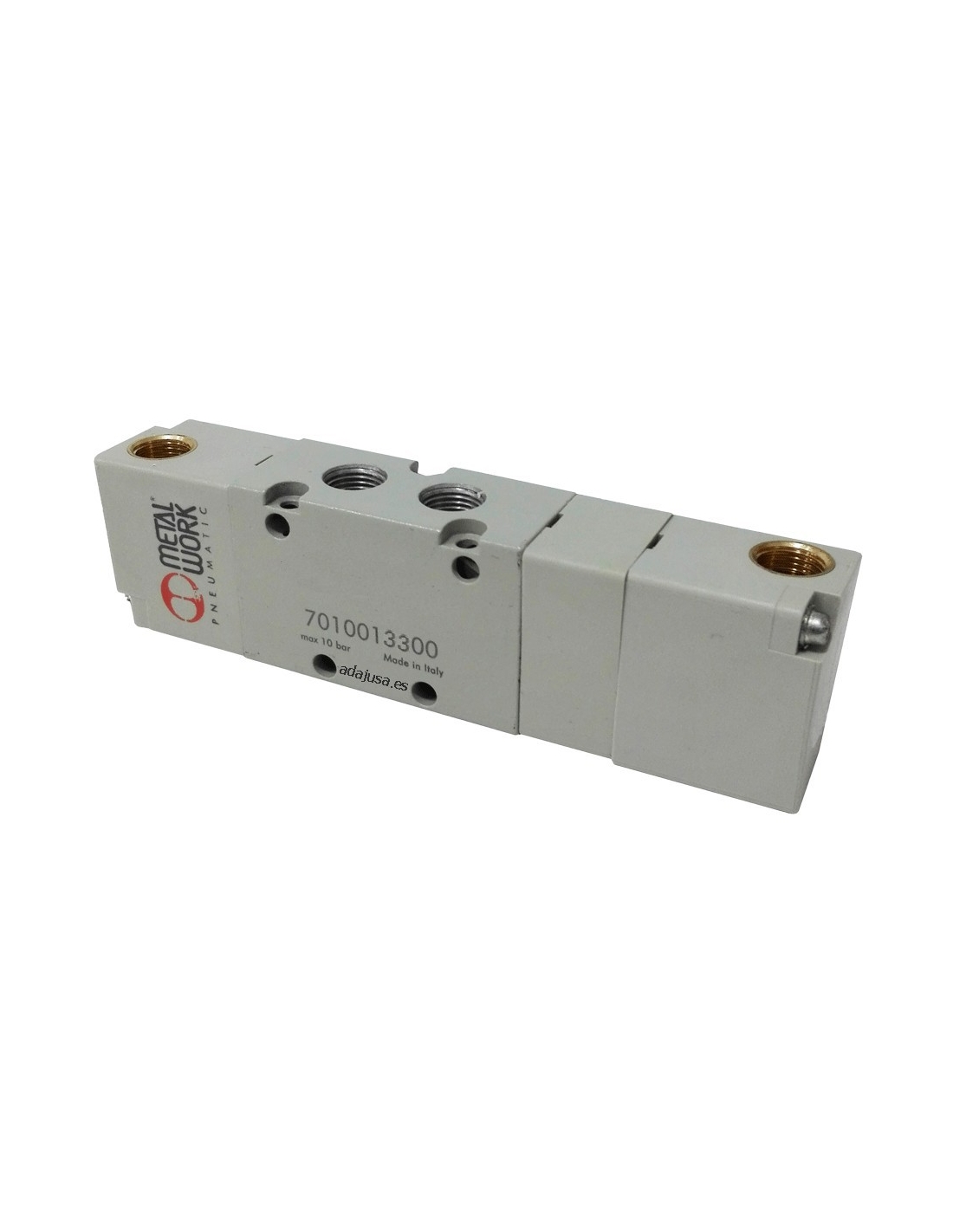

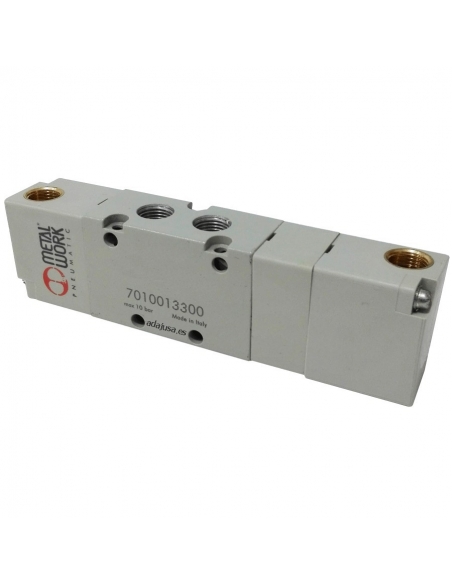

Double pneumatic valve 1/8 3 way monostable NC-NO - Metal Work

€64.75 Tax included

52.64 tax excl.

7010013300

Double pneumatic valve 1/8 3 ways monostable normally closed (NC) and standardally open (NO).

Reference: 7010013300

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double pneumatic valve 1/8 3 ways monostable, for general and industrial applications. On the one hand the valve is normally closed (NC), and on the other end it is normally open (NO)

  • Double pneumatic valve 1/8 3 ways monostable normally closed (NC) and standardally open (NO).
  • Manufacturer: Metal Work.
  • Reference: PNV 28 PNS NC-NO Code: 7010013300
  • Operating pressure bar: Empty ÷ 10
  • Minimum monostable drive pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 6/15
  • Bistable TRA/TRR at 6 bar ms: 7/7



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Customers who bought this product also bought:

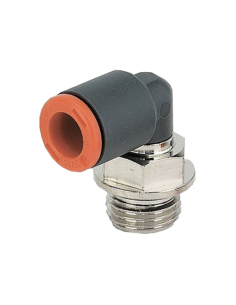

Cylindrical swivel elbow fitting 1/8 tube .4
