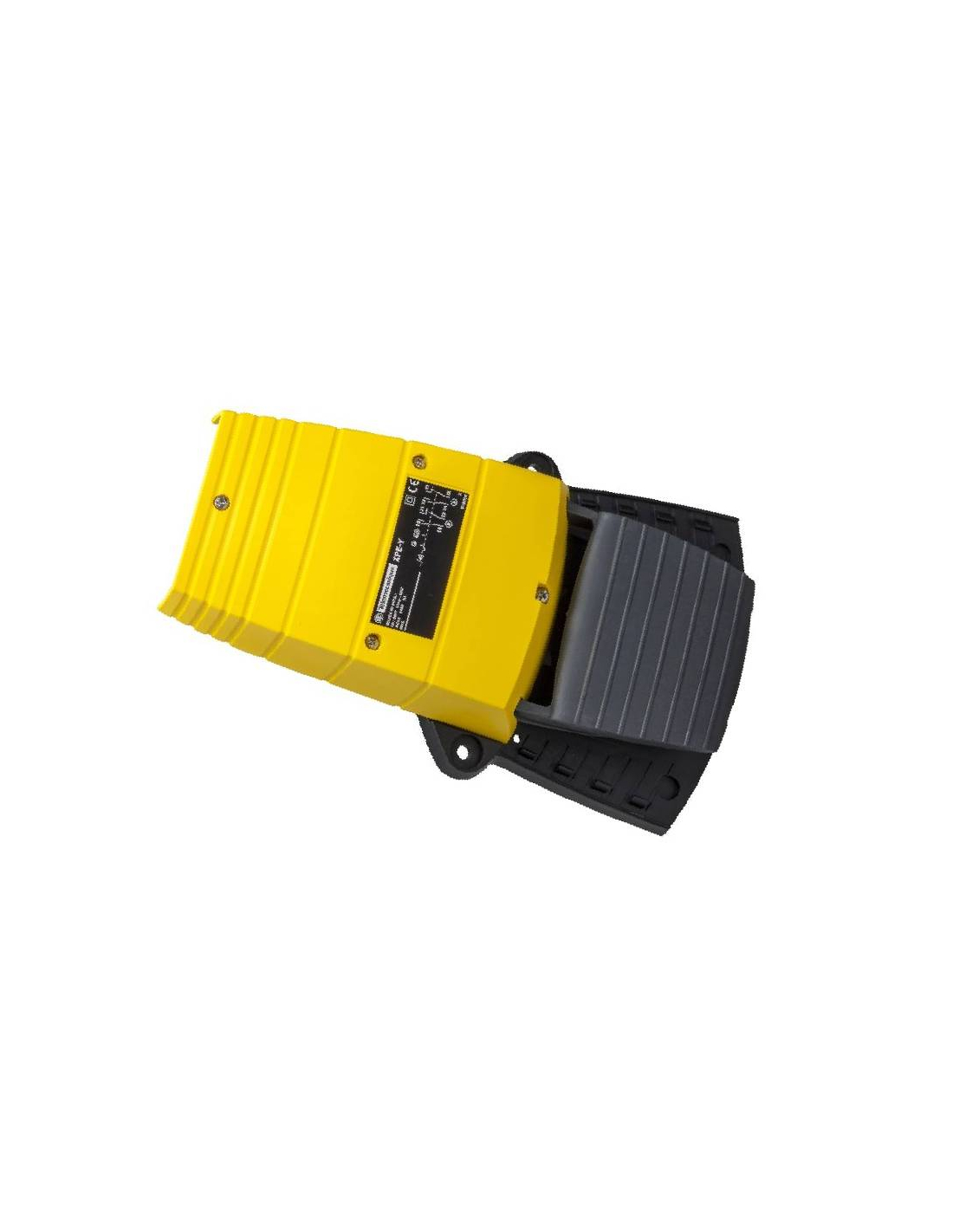

Foot switch XPE-Y without cover - SCHNEIDER

Single-step, snap-action foot switch (push button) with 2 electrical contacts, one open (NO) and one closed (NC), with positive opening operation according to IEC 60947-5-1. Pedal without protective cover with high resistance plastic cover in yellow color, offers a long life in demanding conditions thanks to its resistance to hydraulic oil and various greases.


This type of elements are used as control switches in industrial applications and general purpose applications for the control of start and stop of machinery. Pedal in compliance with current safety standards, suitable for low-risk applications and work. Its base has rubber bumpers to prevent slipping during use.

These foot-operated foot switches incorporate a snap-action NC + NO contact block with positive opening operation and are fully compliant with IEC 60947-5-1. The footswitch is snap-action, i.e. the contacts are activated when the pedal is pressed with the foot and deactivated when the foot is withdrawn.

Summary of features:

• Manufacturer: SCHNEIDER
• Ref. No.: XPEY110
• HARMONY XPE SERIES
• Material: Plastic
• Color: Yellow
• Contact operation: 1 step
• Contact type: NO+NC
• Positive break: According to IEC 60947-5-1
• Rated operating current (Ie): 3A at 240V, AC-15 / 0.27A at 250V, DC-13
• Insulation voltage rating (Ui): 500V
• Surge withstand voltage: 6kV
• Rated operating power
  • 10 W DC-13, operating rate
  • 4 W DC-13, operating rate
  • 7 W DC-13, operating rate
• Operating temperature: -25...55°C
• Mechanical durability: 5000000 cycles
• Degree of protection: IP55 according to IEC 60529
• Cable inlet: 2 smooth holes for M20 cable gland
• Weight: 0.57kg
• Standard: IEC 60947-5-1

Dimensions:






(1) Two smooth holes for cable gland ISO M20 or Pg 13.5
(2) Four cover fixing screws: stainless steel. Tightening torque: 1 Nm
(3) Return spring: stainless steel
