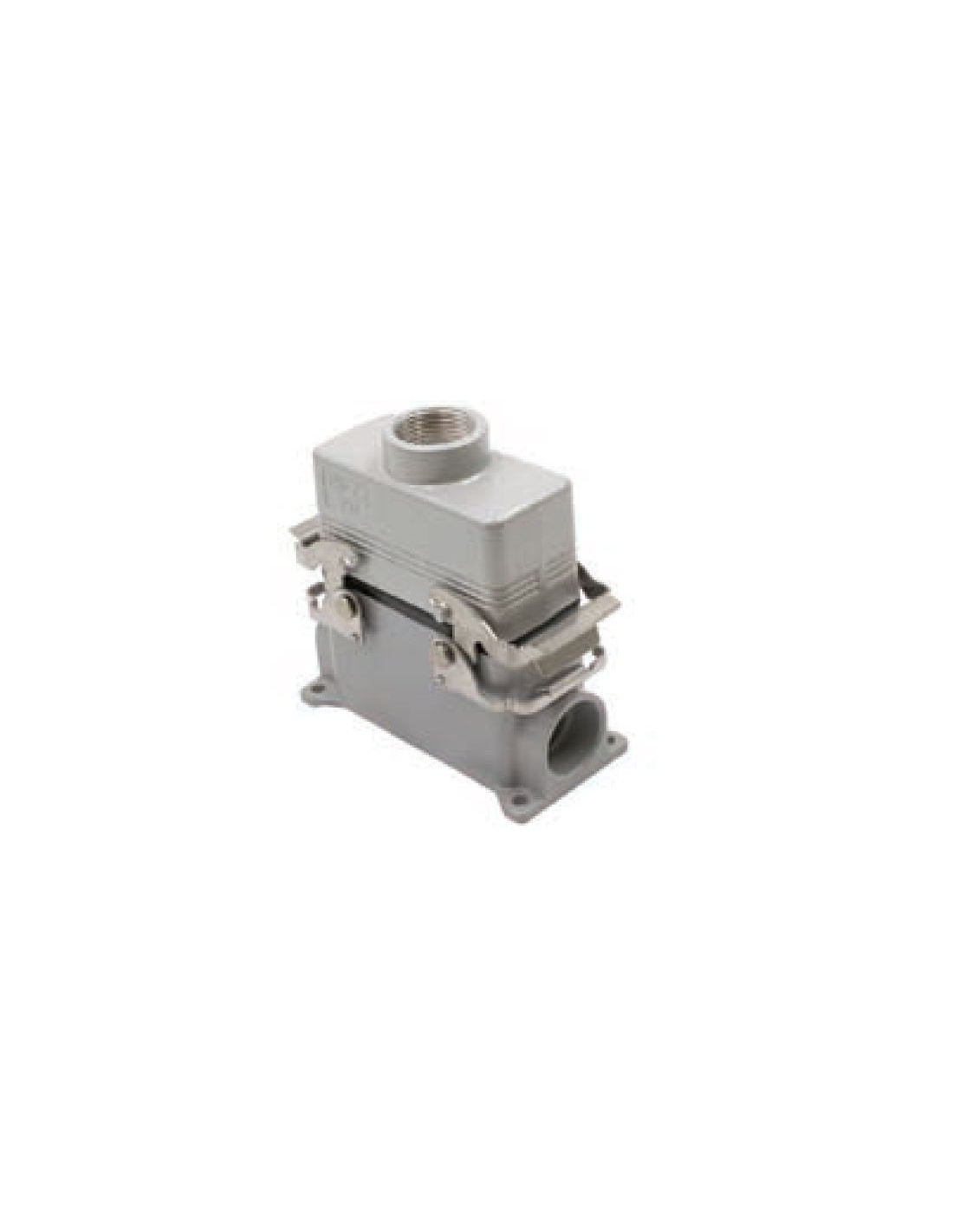

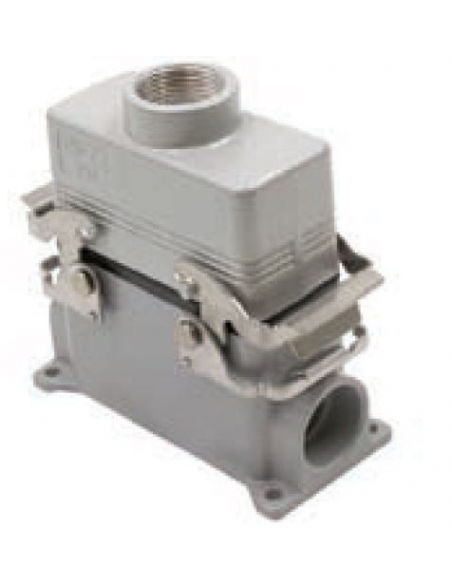

Full wall multipolar connector 16 poles and ground vertical output M25/M32

€83.36 Tax included

€68.89 tax excl.

16-pole multipolar connectors + grounding, complete with M25/M32 vertical output, wall mount. They can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection.

Reference: MNZ16PV

No queries yet, leave the first!


Complete multipolar connectors, for wall mounting, 16 poles and grounding. Vertical cable output with M25/M32 thread.

This series of multipolar connectors can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. The inserts are made of self-extinguishing thermoplastic resin, according to UL 94V-0, with stagnated zinc contacts. The assembly is coupled by thermoplastic cams and galvanized steel for the enclosures.

Technical details:

  • Manufacturer/Supplier: ILME
  • Reference: MNZ16PV
  • Series: MNZ, full connector 16A max - 500Vac.
  • Number of poles: 16+Earth.
  • Maximum current: 16A.
  • Maximum voltage: 500V.
  • Driver section: 0.50 mm2 - 2.50 mm2.
  • Degree of protection: IP66.
  • Cable input: M25/M32.
  • Situation: Vertical.
  • Weight:
  • Regulations: EN 61984:2009-06

Dimensiones conectores ILME

EsquemaMontajeConectorMultipolar
