Full wall multipolar connector 6 poles and ground side outlet Pg16
Full wall multipolar connector 6 poles and ground side outlet Pg16

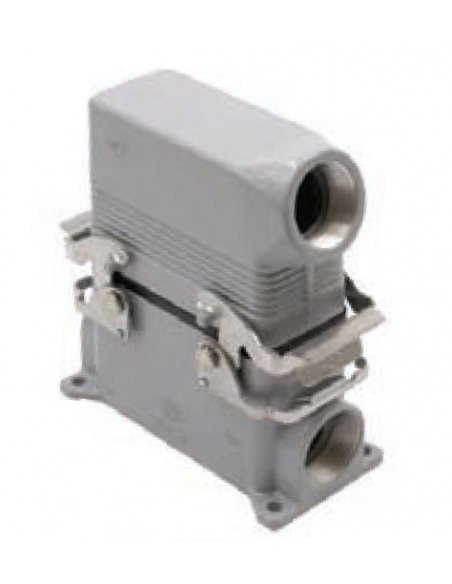

Full wall multipolar connector 16 poles and ground side outlet PG21

€84.06 Tax included

€69.47 tax excl.

16-pole multipolar connectors + grounding, complete with PG21 side output, wall mount. They can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection.

Reference: CNZ16PO

No queries yet, leave the first!


Complete multipolar connectors, for wall mounting, 16 poles and grounding. Side cable output with PG21 thread.

This series of multipolar connectors can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. The inserts are made of self-extinguishing thermoplastic resin, according to UL 94V-0, with stagnated zinc contacts. The assembly is coupled by thermoplastic cams and galvanized steel for the enclosures.

Technical details:

  • Manufacturer/Supplier: ILME
  • Reference: CNZ16PO
  • Series: CNZ, full connector 16A max - 500Vac.
  • Number of poles: 16+Earth.
  • Maximum current: 16A.
  • Maximum voltage: 500V.
  • Driver section: 0.50 mm2 - 2.50 mm2.
  • Degree of protection: IP66.
  • Cable input: PG21.
  • Situation: Side.
  • Weight: Kg.
  • Regulations: EN 61984:2009-06

Dimensiones conectores ILME

EsquemaMontajeConectorMultipolar
