Four-pole distribution board 11 outlets 160A
€53.33
Tax included
43.36 tax excl.
BD160124

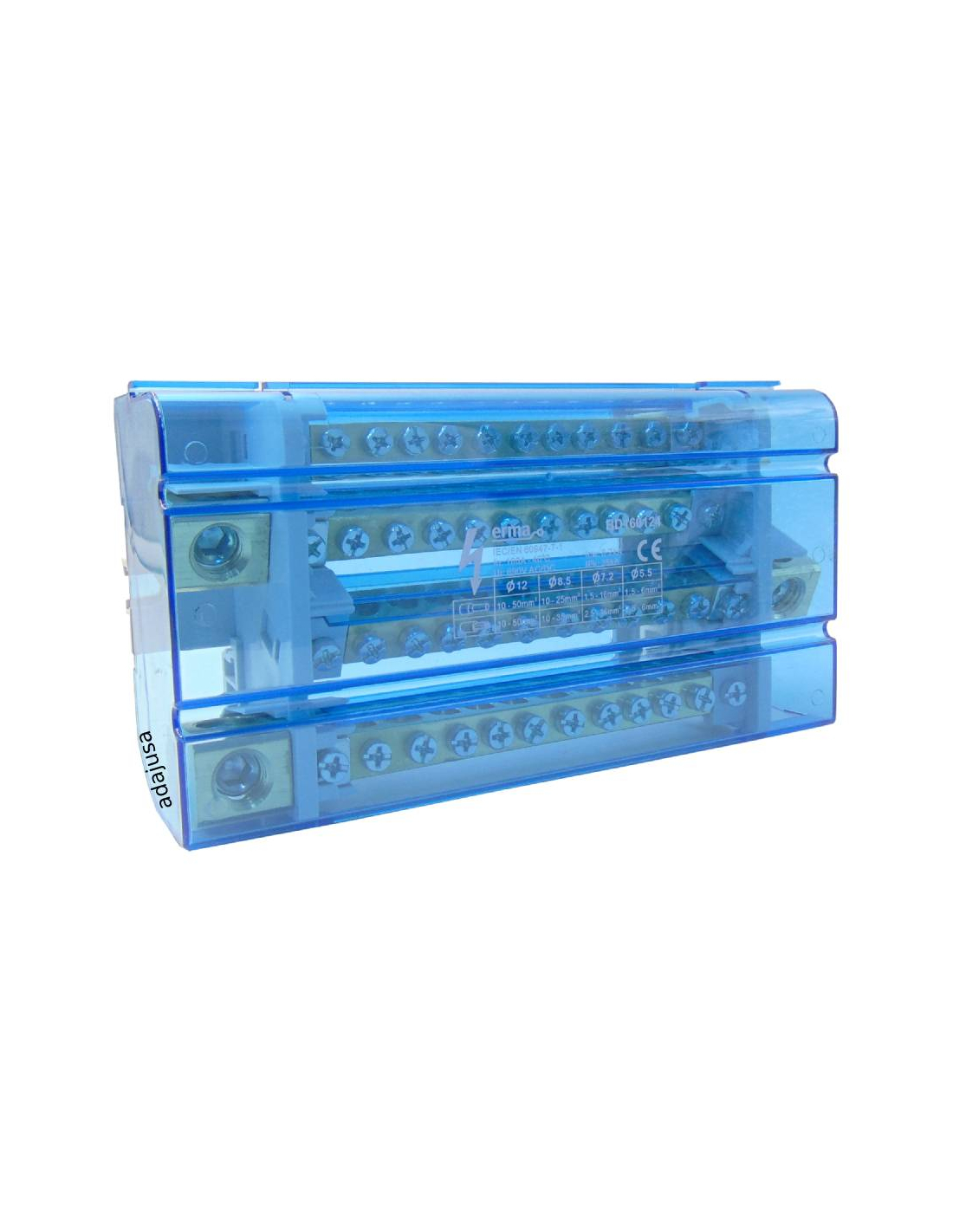

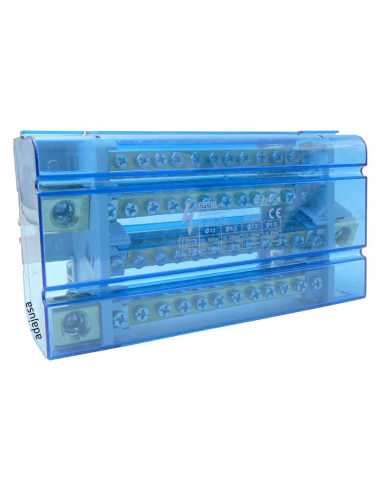

Four-pole (3 poles + neutral) electrical distribution board with 11 outputs and 1 input, suitable for currents up to 160A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.
Part number: BD160124
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Four-pole electrical connection distributor, with 11 outlets and 1 inlet, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.
It has 4 brass distribution bars with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is fixed to the distributor simply with a screwdriver.
Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.
The connection bar has 12:
- 1 inlet Ø12mm for 10mm² to 50mm² cables
- 3 outlets Ø8.5mm for cables 10mm² to 25mm²
- 7 outlets Ø7.2mm for cables from 1.5mm² to 16mm²
- 1 outlet of Ø5,5mm for cables 1,5mm² to 16mm²
Technical characteristics:
- Manufacturer/Supplier: Gaestopas
- Part number: BD160124
- Type: Four-pole (3P+N)
- Rated voltage: 690Vac/dc
- Rated current: 160A
- Icw: 8,2kA
- Ipk: 35kA
- Number of holes per busbar: 12
- Holes per pole (holes x Ø mm): 1x12 /3x8,5 / 7x7,2 / 1x5,5
- Dimensions: 90x175x50mm
- Halogen free
- UL94-V0 flammability rating
- Certification: CE, ROHS
- Standard: IEC 60947-7-1
Material for professional use, install in compliance with the regulations in force at the place of installation.
Questions
Be the first to ask a question about this product!
Question about the product
* Required fields
Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
16 other products in the same category:
Electrical connection dealers
Bipolar connection distributor 15 outlets 40A
€12.56
(€10.21 tax excl.)
Connection and assembly material

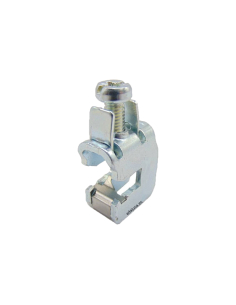

Direct mounting terminal 120-300mm2 5mm thick plate
€21.30
(€17.32 tax excl.)
Electrical connection dealers
Box waterproof with gel for connection terminals 45x37x24mm
€4.50
(€3.66 tax excl.)
Electrical connection dealers
Connection dispatcher 4 poles isolated 11 outputs 125a
€13.64
(€11.09 tax excl.)
Electrical connection dealers
Four-pole 11-outlet 40A distribution switchgear
€20.10
(€16.34 tax excl.)
Electrical connection dealers
Connection dispatcher 2 poles isolated 7 outputs 100a
€5.42
(€4.41 tax excl.)
Electrical connection dealers
Connection dispatcher 2 poles isolated 15 outputs 125a
€8.78
(€7.14 tax excl.)
Customers who bought this product also bought:
Electrical connection dealers
Four-pole 13-outlet 100A switchgear for connection to 13 outlets
€24.03
(€19.54 tax excl.)
Bipolar differential (2 poles)
Differential Circuit Breaker RCD 2 poles 25A 30mA Class A - LS
€28.87
(€23.47 tax excl.)
Three-phase frequency converters

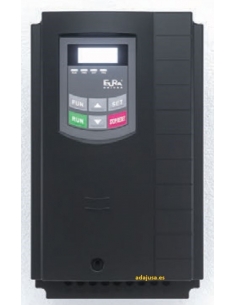

Eura Drives E2100 Series 30kW Vector Drive Three-Phase Frequency Inverter
