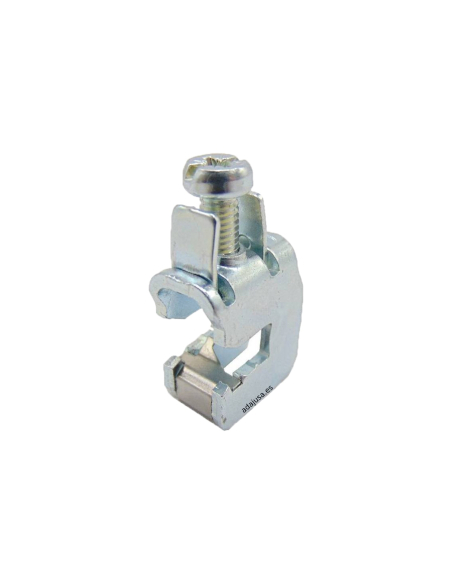

Direct mounting terminal 120-300mm2 5mm thick plate

Name: Direct mounting terminal 120-300mm2 5mm thick plate
Brand: XBS
SKU: SZK300F5
Price: 21.0945 EUR
Availability: InStock

€21.09 Tax included

€17.15 tax excl.

Direct mounting terminal block for cable cross-section ^120-300mm2, thickness of the mounting block 5mm.

Reference: SZK300F5

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Terminal for direct mounting on 5mm thick copper plates, for cable cross-section between ^120-300mm2. Mounting with quick clamp type coupling. Manufactured in high quality steel, Chromium VI free. Solution for a simple and robust installation.

Easy and safe mounting on the plate thanks to the high clamping force provided by the screw, avoiding torsion thanks to its patented "Twist-Stop" mechanism and guaranteeing a fixed mounting after installation.

Features:

Manufacturer/supplier: XBS/Mixvil
Part number: SZK300F5
Cable cross section: ^120-300mm2
Allowable current: 608A
Mounting: 5mm thick plate
Standard: EN 60999
Material: High quality steel
Spring: Stainless steel

Material for professional use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Direct mounting terminal 1.5-16mm2 plate thickness 5mm

XBS

SZK16F5

€1.02 (€0.83 tax excl.)

Direct mounting terminal on copper plate for cables with a section of 1.5-16mm 2 . Mounting plate thickness 5mm.Reference: SZK16F5Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Direct mounting terminal 1.5-35mm2, 5mm plate | ADAJUSA

Direct mounting terminal 1.5-35mm2, 5mm plate | ADAJUSA 2

Electrical connection dealers

Direct mounting terminal 1.5-35mm2 plate thickness 5mm

XBS

SZK35F5

€1.77 (€1.44 tax excl.)

Direct mounting terminal on copper plate for cables with a section of 1.5-35mm 2 . Mounting plate thickness 5mm.Reference: SZK35F5Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Direct mounting terminal 4-50mm2, 5mm plate | ADAJUSA

Direct mounting terminal 4-50mm2, 5mm plate | ADAJUSA 2

Electrical connection dealers

Direct mounting terminal 4-50mm2 plate thickness 5mm

XBS

SZK50F5

€2.45 (€1.99 tax excl.)

Direct mounting terminal on copper plate for 4-50mm 2 section cables. Mounting plate thickness 5mm.Reference: SZK50F5Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Connection and assembly material

Direct mounting terminal block 16-70mm2 5mm thick plate

XBS

SZK70F5

€2.64 (€2.15 tax excl.)

Direct mounting terminal block for cable cross-section 16-70mm2, thickness of the mounting block 5mm.Reference: SZK70F5Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Direct mounting terminal block 16-120mm2 5mm thick plate | Adajusa

Connection and assembly material

Direct mounting terminal 16-120mm2 plate thickness 5mm

XBS

SZK120F5

€4.40 (€3.58 tax excl.)

Terminal for direct mounting on a plate for cables with a section of 16-120mm 2 , thickness of the mounting plate 5mm. Reference: SZK120F5 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

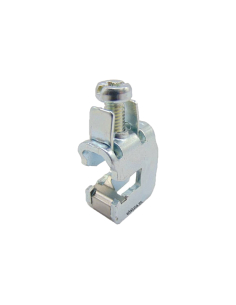

Direct mounting terminal block 120-185mm2 5mm thick plate | Adajusa
