Probe WZPM-201 PT100 6x18 M8x0.75
Probe WZPM-201 PT100 6x18 M8x0.75

Probe WZPM-201 PT100 6x18 M8x0.75

€31.07 Tax included

€25.26 tax excl.

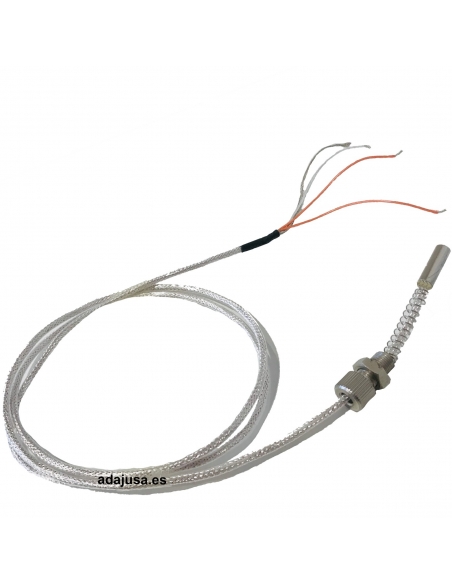

PT100 temperature probe type WZPM-201, 3-wire RTD thermoresistance, suitable for temperature control in electric motors and general uses, Ø6x18mm sensor, fixing fitting included with M8x.075 thread and compression spring.

Ref: WZPM-201 M8x0.75

electrical symbol thermoresistance RTD PT100
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


PT100 type platinum temperature probe for monitoring and controlling temperature in motor bearings or general use. 3-wire RTD thermoresistance.

Fixing fitting with M8x0.75mm thread and compression spring. Sensor element Ø6x18mm. Cable length L=1000mm.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Ref: WZPM-201 M8x0.75
  • RTD Thermoresistance Type: 3-wire PT100.
  • Class: "A" (±0.15º+0.2%|t|).
  • Temperature range: -50ºC..180ºC.
  • Sensor tube dimensions: Ø6x18mm.
  • Fixing element: M8x0.75mm.
  • Cable length (L): 1000mm.
  • number of threads: 3.



Dimensions of PT100 probe for motor

Mounting temperature measurement on bearing :

PT100 mounting on bearing
Professional use material, install in compliance with the regulations in force at the place of installation.
