Probe WZPM-201 PT100 6x18 M8x0.75
Probe WZPM-201 PT100 6x18 M8x0.75

Probe WZPM-201 PT100 6x18 M8x0.75

€29.97 Tax included

€24.77 tax excl.

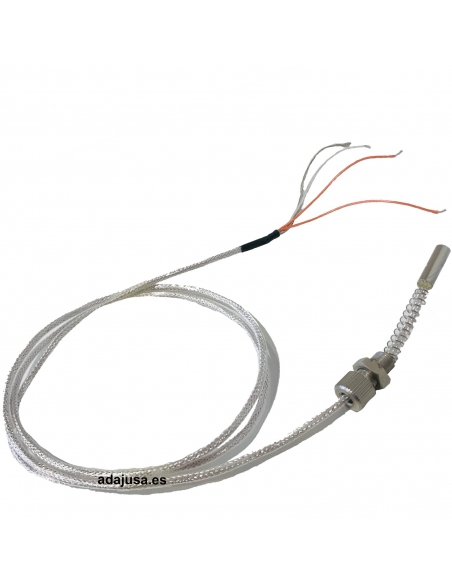

Temperature probe PT100 type WZPM-201, RTD thermissance to 3 wires, suitable for temperature control in electric motors and general uses, Sensor of 6x18mm., fixing fitting included with M8x.075 thread and compression spring.

Ref: WZPM-201 M8x0.75

símbolo eléctrico termoresistencia RTD PT100

No queries yet, leave the first!
Privacy
Shipments
Returns


Pt100 type temperature probe in platinum for monitoring and temperature control in motor bearings or general use. 3-wire RTD thermissance.

Fixing fitting with M8x0.75mm thread and compression spring. Sensor element of 6x18mm. Cable length L-1000mm.

specifications:

  • Manufacturer/Supplier: Denor
  • Ref: WZPM-201 M8x0.75
  • RTD thermiscence type: PT100 to 3 wires.
  • Class: "A" (±0.15o+0.2%|t|).
  • Temperature range: -50oC. 180oC.
  • Sensor tube dimensions: .6x18mm.
  • Fixing element: M8x0.75mm.
  • Cable length (L): 1000mm.
  • Number of threads: 3.

Dimensiones sonda PT100 para motor

Measured temperature mounting on bearing:

Montaje PT100 sobre rodamiento
