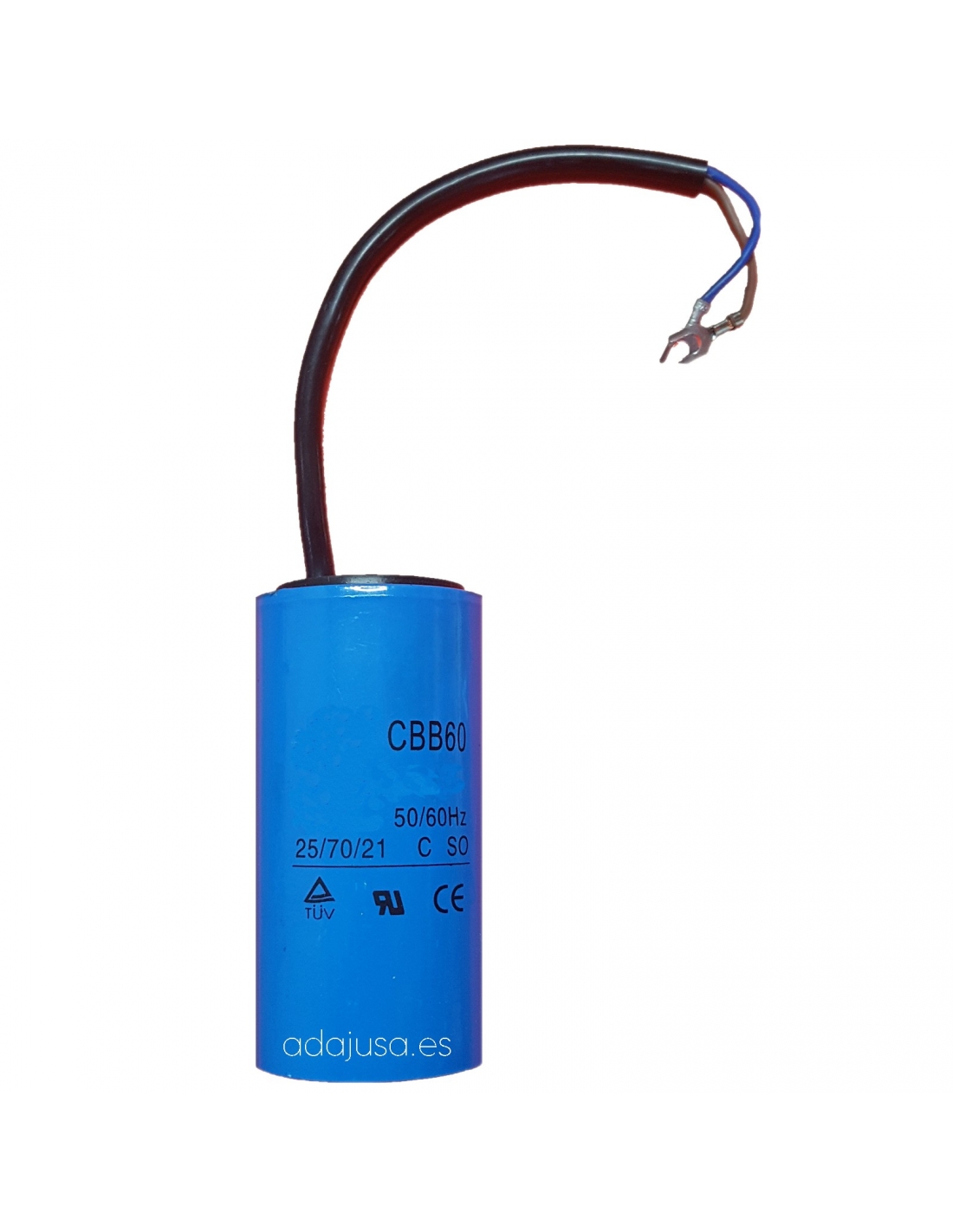

Ctarter capacitor 150uF 250Vac

Ctarter capacitor for single-phase electric motors, non-polarized electrolytic type, with PVC sheath and connection by means of an electric hose.

The application of this type of capacitors is the starting of single-phase electric motors, providing the necessary torque to the single-phase motor for starting. They are non-polarized aluminum electrolytic capacitors for intermittent operation in single-phase electric motor starting circuits, they should not be used for any other application, nor should they be used in permanent regime as running capacitors.

Technical characteristics:

• Manufacturer/Supplier: Generico-MOT
• Ordering Number: CD60-F 150uF 220Vac
• Application: Ctarter capacitor.
• Type: Non polarized electrolytic.
• Capacity: 150uF +/- 20%
• Maximum rated voltage: 250Vac.
• Working temperature range: -25ºC...+55ºC.
• Nominal tolerance: 0..+30%.
• Dissipation factor (20ºC, 120Hz): Tg δ ≤ 0,15.
• Connection type: Hose electrical with terminals.
• Dimensions:

This type of capacitors are for professional use, it cannot be used as permanent capacitor (running capacitor), it will cause deterioration of the capacitor. It must be installed inside the terminal box of the motor, and following the regulations in force in the place of installation.

Material for professional use, to be installed according to the regulations in force at the place of installation.
