Contactor tetrapolar 60A 4 poles

€92.67 Tax included

€76.59 tax excl.

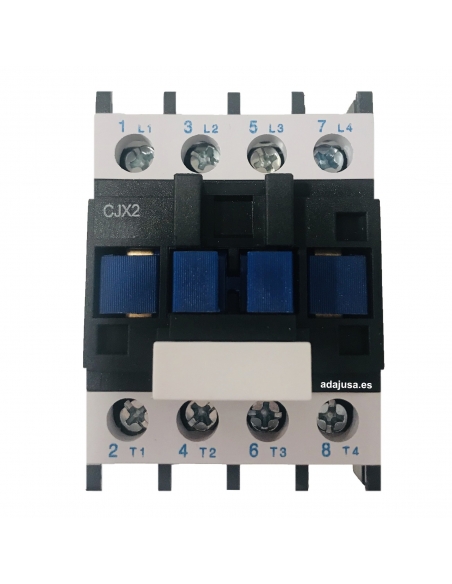

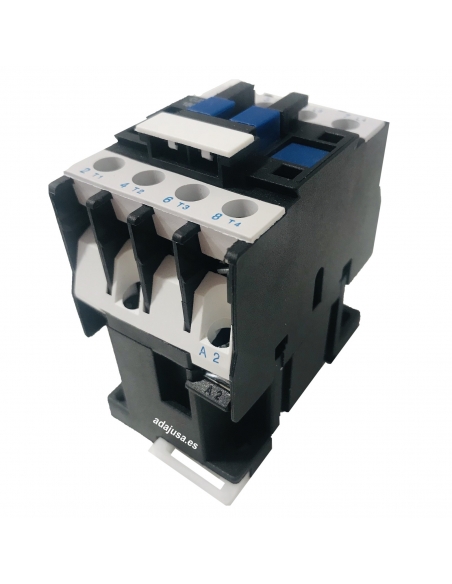

Tetrapolar contactor equipped with high capacity contacts for control of electrical systems, generator sets, or general uses, 4 poles with a current capacity of 60A in AC1 or 40A in AC3, with available coils of 230 and 400Vac.

Ref: CJX2-40004 230V

Ref: CJX2-40004 400V

Esquema eléctrico contactor 4 polos

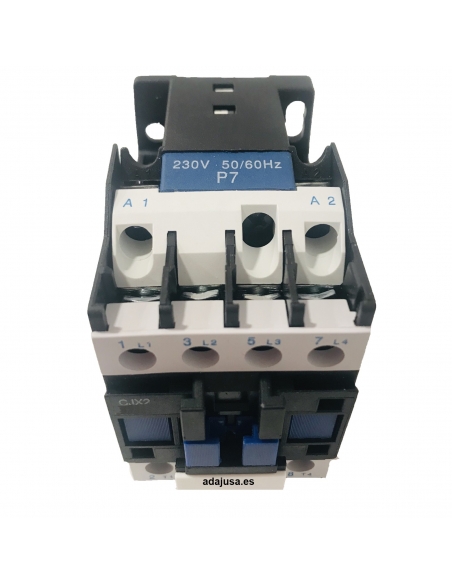

Coil voltage
  • 230Vac 50/60Hz
  • 400Vac 50/60Hz

No queries yet, leave the first!
Privacy
Shipments
Returns


60A tetrapolar contactor (4 poles) in AC1 category or 40A in AC3 category, the contactor is equipped with high robustness main contacts, manufactured with 85% silver, which makes it suitable for demanding applications for control of electrical systems, electrogen groups and general use. The contactor can be fastened by screws or by DIN rail.

We have a wide range of contactor accessories.

General contactor features:

  • Brand: Denor
  • Ref: CJX2-40004 230V
  • Ref: CJX2-40004 400V
  • Contactor assigned current in AC1: 60A.
  • Number of contactor poles: 4.
  • Maximum thermal current Ith contactor: 60A.
  • Contactor assigned current in AC3: 40A.
  • Maximum contactor voltage: 690Vac.
  • Quality of main contacts: 85% silver (Ag).
  • Contactor coil voltage: 230Vac 400Vac.; 50/60Hz.
  • Auxiliary contact integrated in the contactor: niguno.
