Ctarter capacitor single-phase motor 200uF 220Vac | ADAJUSA : price
Ctarter capacitor single-phase motor 200uF 220Vac | ADAJUSA : price

Ctarter capacitor 200uF 250Vac

€39.98 Tax included

32.5 tax excl.

CD60-F 200uF 220Vac

Ctarter capacitor 200μF/250Vac type CD60, for single-phase electric motors, with PVC sheath and electrical hose connection.

This type of capacitors has been designed exclusively for use as starting capacitors in single-phase electric motors.

Reference: CD60-F 200uF 220Vac

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Ctarter capacitor for single-phase electric motors, non-polarized electrolytic type, with PVC sheath and connection by means of an electric hose.

The application of this type of capacitors is the starting of single-phase electric motors, providing the necessary torque to the single-phase motor for starting. They are non-polarized aluminum electrolytic capacitors for intermittent operation in single-phase electric motor starting circuits, they should not be used for any other application, nor should they be used in permanent regime as running capacitors.

Technical characteristics:

  • Manufacturer/Supplier: Generico-MOT
  • Ordering Number: CD60-F 200uF 220Vac
  • Application: Ctarter capacitor.
  • Type: Non polarized electrolytic.
  • Capacity: 200uF.
  • Maximum rated voltage: 250Vac.
  • Working temperature range: -25ºC..+55ºC.
  • Nominal tolerance: 0..+30%.
  • Dissipation factor (20ºC, 120Hz): Tg δ ≤ 0.15.
  • Connection type: Hose electrical with terminals.
  • Dimensions:

This type of capacitors are for professional use, it cannot be used as permanent capacitor (running capacitor), it will cause deterioration of the capacitor. It must be installed inside the terminal box of the motor, and following the regulations in force in the place of installation.


Material for professional use, to be installed according to the regulations in force at the place of installation.

Questions

Question
tengo un motor trifasico de 3 kw, y para ponerlo a monofasico necesito 210 microaradios, con el de 200 me vale?
Answer

Bunos días,

Los calculos que hay que hacer para saber exactamente la capacidad del condensador son complejos, y suelen realizarlos el fabricante del motor, Los calculos que habitualmente realizan los clientes son aproximados. Nosotros, desde aqui, no podemos garantizar si el condensador valdrá o no.

Saludos

Pablo Fernandez on 11/11/2017 11:32:16

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Starter capacitor with terminals adajusa
Capacitors for electric motors

Starter capacitor 160-200uF 330Vac with terminals

OMU System
CDI 160-200uF
€9.69 (€7.88 tax excl.)
Starter capacitor 160-200oF/330Vac type CD60,for single-phase electric motors, with PVC cover and terminal connection. This type of capacitor has been designed exclusively for use as starter capacitors in single-phase electric motors. reference: CDI 160-200 F/330VacRepresentative image for illustrative purposes, the supplied article is subject to the...

16 other products in the same category:

70uF 450Vac permanent capacitor with CBB60 terminals adajusa
Capacitors for electric motors

Permanent capacitor 70uF 450Vac with terminals

OMU System
CBBS 70uF450V
€6.75 (€5.49 tax excl.)
Permanent capacitor 70F/450Vac for electric motors, power capacitor. The external construction of the capacitors is in cylindrical container with PVC cover and electrical connection by terminals. Mechanical fixation by threaded shaft and M8 nut. reference: CBBS 70uF 450VacRepresentative image for illustrative purposes, the supplied article is subject to...
4uF 450Vac permanent capacitor with CBB60 terminals adajusa
Capacitors for electric motors

Permanent capacitor 3uF 450Vac with terminals

OMU System
CBBS 3uF450V
€1.72 (€1.40 tax excl.)
Permanent capacitor 3μF/450Vac for electric motors, power capacitor. The external construction of the capacitors is in cylindrical container with PVC sheath and electrical connection through terminals. Mechanical fixing by threaded shaft and M8 nut. reference: CBBS 3uF 450VacRepresentative image for illustrative purposes, the article supplied corresponds...
Ctarter capacitor single-phase motor 250-300uF 220Vac | ADAJUSA : price
3 days delivery time
Capacitors for electric motors

Ctarter capacitor 300uF 250Vac

Generico-MOT
CD60-F 250uF 250Vac
€46.13 (€37.50 tax excl.)
Ctarter capacitor 300μF/250Vac type CD60, for single-phase electric motors, with PVC sheath and electrical hose connection. This type of capacitors has been designed exclusively for use as starting capacitors in single-phase electric motors. Reference: CD60-F 250-300uF 220Vac Representative image for illustrative purposes, the item supplied will...
Starter capacitor with terminals adajusa
Capacitors for electric motors

Starter capacitor 200-250uF 330Vac with terminals

OMU System
CDI 200-250uF
€8.40 (€6.83 tax excl.)
Starter capacitor 200-250oF/330Vac type CD60,for single-phase electric motors, with PVC cover and terminal connection. This type of capacitor has been designed exclusively for use as starter capacitors in single-phase electric motors. reference: CDI 200-250 F/330VacRepresentative image for illustrative purposes, the supplied article is subject to the...
Single-phase motor starter capacitor 75uF 250Vac | ADAJUSA
Capacitors for electric motors

copy of Starter capacitor 75uF 250Vac

Generico-OP
CD60-F 75uF-250Vac
€9.23 (€7.50 tax excl.)
75μF/250Vac Ctarter capacitor type CD60 , for single-phase electric motors, with PVC sheath and connection via electrical hose. This type of capacitor has been designed exclusively for use as starting capacitors in single-phase electric motors. Reference: CD60-F 75uF 250VacRepresentative image for illustrative purposes, the item supplied will correspond...
Starter capacitor with terminals adajusa
Capacitors for electric motors

Starter capacitor 125-160uF 330Vac with terminals

OMU System
CDI 125-160uF
€7.11 (€5.78 tax excl.)
Starter capacitor 125-160oF/330Vac type CD60,for single-phase electric motors, with PVC cover and terminal connection. This type of capacitor has been designed exclusively for use as starter capacitors in single-phase electric motors. Reference: CDI 125-160 F/330VacRepresentative image for illustrative purposes, the supplied article is subject to the...
Ctarter capacitor single-phase motor 500-600uF 220Vac | ADAJUSA : price
3 days delivery time
Capacitors for electric motors

Ctarter capacitor 500-600uF 250Vac

Generico-MOT
CD60-F 500uF 250Vac
€73.80 (€60.00 tax excl.)
Ctarter capacitor 500-600μF/250Vac type CD60, for single-phase electric motors, with PVC sheath and electrical hose connection. This type of capacitors has been designed exclusively for use as starting capacitors in single-phase electric motors. Reference: CD60-F 500-600uF 220Vac Representative image for illustrative purposes, the item...

Customers who bought this product also bought:

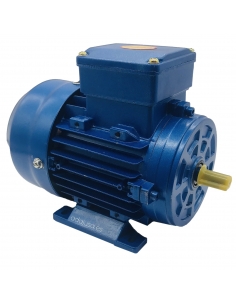

Single-phase electric motor 1.5Kw 2HP 230V B3 foot 3000 high torque | ADAJUSA
