Complete right-left Button box

€7.00 Tax included

€5.69 tax excl.

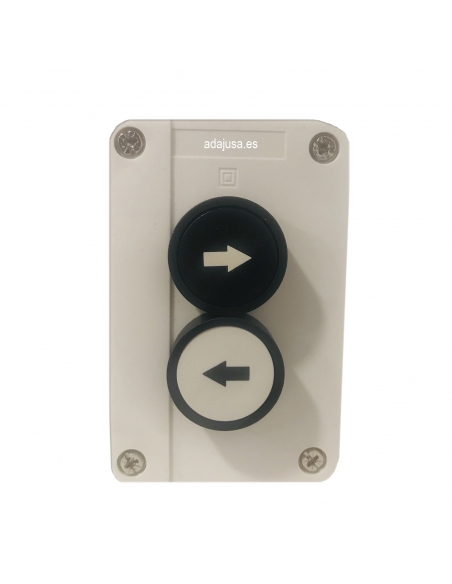

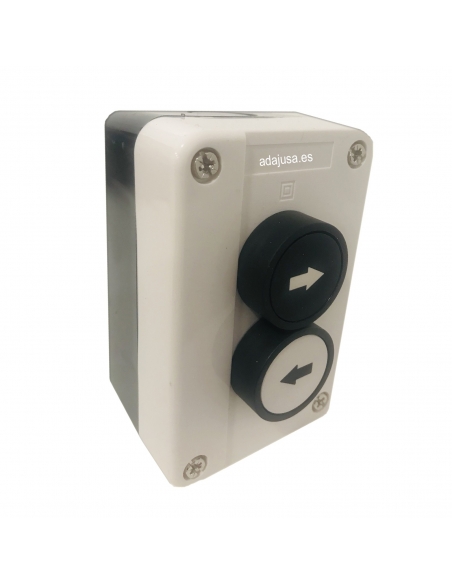

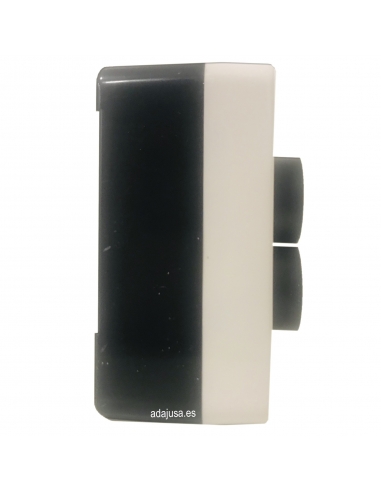

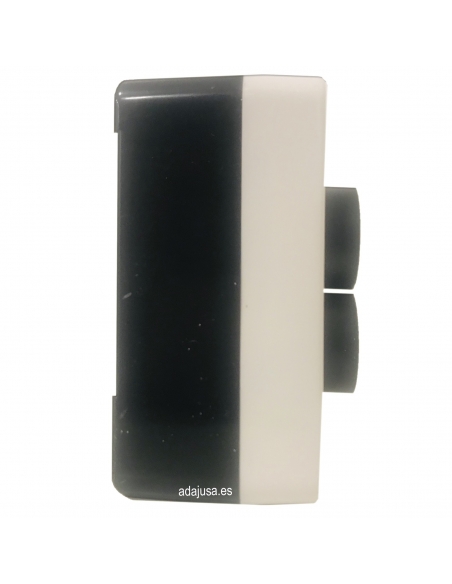

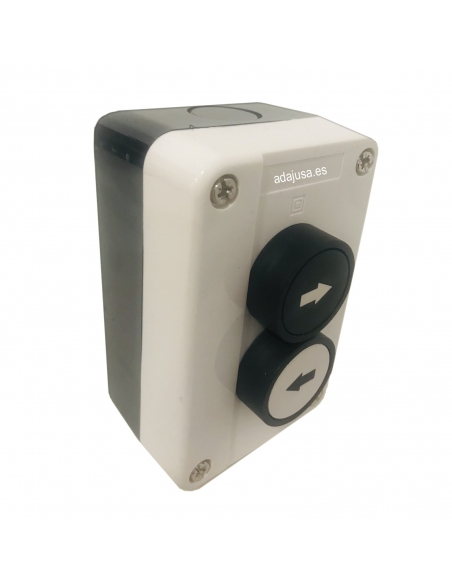

Box with right (black) and left (white) push buttons, complete. Box and push button made of black-white plastic.

Reference: XAL-B223

The supply includes:

  • White button (black arrow).
  • Black button (white arrow).
  • 2 Open Contacts , 1 per push button.
  • Plastic Box for 2 elements.

The button panel is supplied assembled.

Open push button wiring diagramOpen push button wiring diagram

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Button box with 2 push-buttons, for right and left function. Push-buttons with arrow inscription, one in white and one in black, with 1 open contact each. Black and white Box .

The supply includes:

  • White button (black arrow).
  • Black button (white arrow).
  • 2 Open Contacts , 1 for each push button.
  • Plastic Box for 2 elements.

The push-button panel is supplied with the push-buttons fully assembled.

The box allows for the mounting of an additional open or closed contact for each pushbutton. The maximum number of contacts per element is 2.

The dimensions of the box are: 134x68x51mm.

characteristics:

  • Manufacturer/Supplier: Denor
  • Reference: XAL-B223
  • Push button type: 2 push buttons with open contacts (NO).
  • Push button color: 1 white (black arrow) and 1 black (white arrow).
  • Box made of black and white plastic.
  • Case height: 51mm.
  • Contacts : 2 NA, one for each push button.
  • Drill diameter: 22mm.
  • Nominal working intensity Ith: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 mΩ.
  • Protection class: IP40.

dimensions of 2-element button panel

Professional use material, install in compliance with the regulations in force at the installation site.
